The PROSOFT MVI56-LTQ is a network interface module designed specifically for th
The PROSOFT MVI56-LTQ is a network interface module designed specifically for the Rockwell Automation ControlLogix platform. It's primarily used to connect Limitorque valve actuators and other Limitorque-compatible devices. The following is a detailed description:
Features
Dedicated Integration: Designed specifically for Limitorque valve actuators, it communicates directly with the Limitorque network without the need for additional gateway devices, seamlessly integrating into the ControlLogix system for easy configuration and programming.
Efficient Data Transfer: As an input/output module between the Limitorque valve network and the ControlLogix processor, data transfer is asynchronous. The module features 1500 words of register space for efficient storage and transmission of valve information.

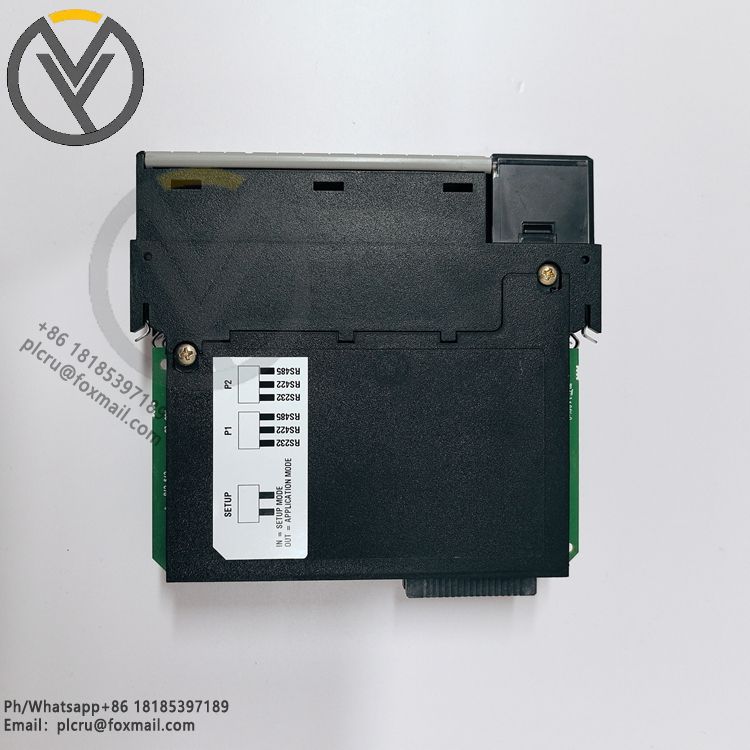

Flexible Communication: Supports RS-232 or RS-485 communication (selectable via jumpers), with a configurable baud rate between 1200 and 38400. Communication parameters such as message response timeout and the number of active slaves are software-configurable. Multiple Command Support: Continuous polling is supported to read valve position, status, and fault registers, as well as execute various valve control commands such as open, stop, and close.
Convenient Status Monitoring: LED indicators display module status, backplane transmission status, application status, and serial activity, allowing users to monitor module operation in real time.
Technical Specifications
Power Requirements: 800mA at 5.1VDC backplane current load, 3mA at 24VDC.
Operating Temperature: 0°C to 60°C (32°F to 140°F).
Storage Temperature: -40°C to 85°C (-40°F to 185°F).
Shock and Vibration Resistance: 30g shock during operation, 50g shock during non-operation, and 5g vibration within a frequency range of 10 to 150Hz. Applications: This module is widely used in a variety of industries, including aerospace, chemical, food and beverage, industrial gas, oil and gas production, mining, pharmaceutical, power, papermaking, and water treatment, for effective monitoring and control of Limitorque valves.
