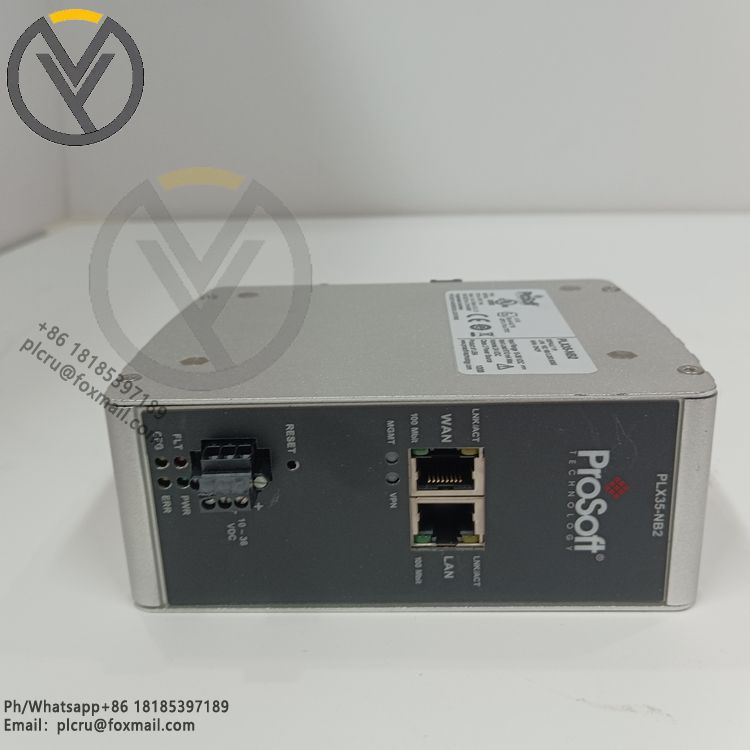

ProSoft PLX35-NB2 Bridge

ProSoft PLX35-NB2 is a network bridge device, which belongs to the PLX35 series of ProSoft Technology. It is designed for Allen-Bradley ControlLogix processors and is mainly used in industrial automation and remote monitoring. The relevant introduction is as follows:

Interface and communication: It has 2 10/100Base-T Ethernet ports with RJ45 connectors. It supports multiple Ethernet communication protocols such as EtherNet/IP, Modbus TCP, Profinet, etc., which can realize data exchange and interoperability between devices with different protocols.

Remote access: Remote connection can be achieved through the Belden Horizon platform, supporting VPN connection, and HTTP/HTTPS ports (8080 and 443). Remote access can be enabled or disabled locally through EtherNet/IP messages, which is convenient for engineers to remotely monitor device status and perform fault diagnosis.

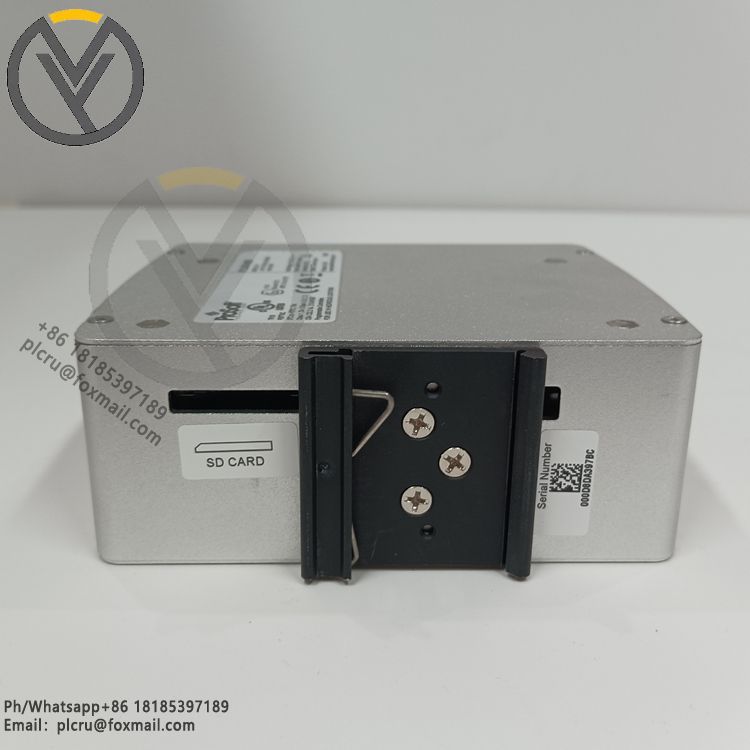

Data logging: It supports data logging and reporting functions, which is convenient for users to perform trend analysis and fault diagnosis, and also supports file transmission across segmented networks. The back of the module supports an SD card up to 32GB for storing relevant data.

Physical characteristics: It adopts an extruded aluminum shell with a size of 14.01x5.24x11.09 cm, which meets the ControlLogix module standard. The operating temperature range is - 30°C to + 70°C, the humidity is 5% to 95% non-condensing, and the shock and vibration comply with IEC 60068-2-27 and IEC 60068-2-6 standards, which can adapt to harsh industrial environments.
