GE RS-FS9001 362A1052P004 Flame Detector | Probe Sensor RS-FS 9001

GE RS-FS9001 362A1052P004 Flame Detector Probe Sensor Basic Information

Brand: Formerly GE Reuter-Stokes, now Baker Hughes; Series Name: Flame Tracker™ Silicon Carbide Flame Probe

Part Number: RS-FS-9001; Part Code: 362A1052P004

Type: Industrial High-Temperature Ultraviolet Flame Scanner (SiC UV Flame Sensor)

Origin: USA

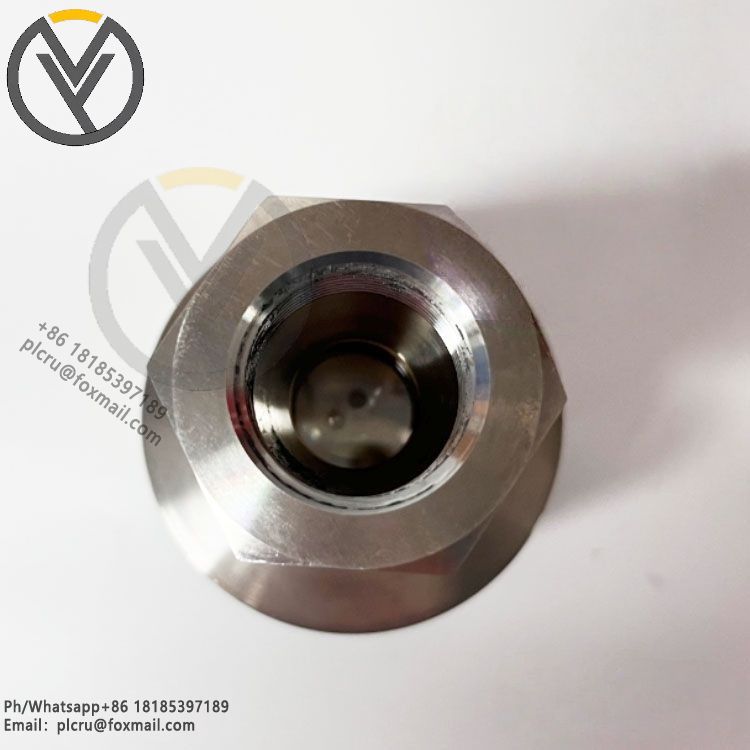

Probe Optical Window

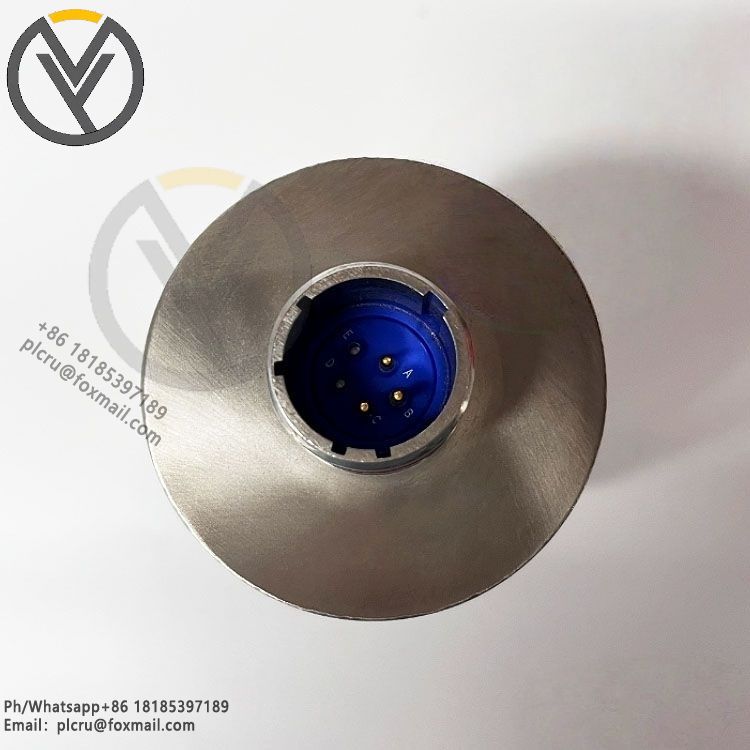

Aircraft Connector at the Tail End

Core Technology Principle

Utilizes a silicon carbide (SiC) photodiode with dedicated 310nm ultraviolet band detection. A sapphire optical window allows for penetration of steam and fuel mist, accurately identifying gas/fuel flames. Built-in spectral filtering algorithm filters out interference from sunlight, welding arc light, and workshop lighting, resulting in an extremely low false alarm rate.

Official Standard Electrical & Environmental Parameters

Power Supply: 12~30VDC (standard 24VDC), operating current >100mA; supports reverse polarity protection, transient withstand voltage ≤42V

Signal Output: Two-wire 4–20mA analog signal

No Flame: ≤5mA (flameout threshold 6.25%)

With Flame: ≥5.6mA (ignition threshold 10%)

Response Speed: ≤25ms, rapid triggering of fuel cut-off interlock upon flameout

Temperature Tolerance

Natural Air Cooling Environment: -40℃ ~ +150℃

Matching Water Cooling Components (SP-566/353B3490G001): Suitable for furnace surrounding environment up to 235℃

Pressure: Maximum process pressure 400 psig (2.8MPa)

Vibration Tolerance: 10~40Hz continuous 8G, 40~2000Hz peak 14G, suitable for high-vibration gas turbine environments

Protection and Materials

Housing: 316 stainless steel, argon-sealed cavity

Optical Window: Sapphire crystal

Mounting Thread: 3/4" NPT internal thread

Electrical Interface: MIL-C-38999 III series 5-pin aviation connector

Detection Performance

Detection Distance: Standard 9 meters (30ft)

Field of View: 90° wide-angle

Operating Humidity: 5%~95% non-condensing

Three Cooling Options (essential for high-temperature conditions)

Water Cooling (preferred for the highest temperature conditions)

Matching water cooling coil, inlet water 10~57℃, flow rate 3.8L/min, ambient temperature limit 235℃, standard solution for GE gas turbines

Atmospheric Pressure Air Cooling: Equipment with built-in ventilated cooling housing, ambient temperature ≤150℃

Pressured Purge Air Cooling: High-pressure instrument air purging lens, dustproof + Cooling, suitable for boilers and heating furnaces with high dust levels.

Core Product Advantages:

Strong fuel versatility: Stable monitoring of natural gas, heavy oil, diesel, and mixed fuels.

High reliability under harsh conditions: High temperature resistance, vibration resistance, and oil and gas corrosion resistance; specifically designed for gas turbine combustion chambers.

Easy maintenance: Quick-release aviation connectors allow for rapid on-site probe replacement, shortening downtime for maintenance.

System compatibility: 4–20mA signal directly connects to GE Mark VIe, DCS, and PLC combustion safety control systems.

Main Application Scenarios:

Power generation industry (core component): Flame monitoring in GE Frame series and LM series gas turbine combustion chambers; boiler flameout protection interlock.

Petrochemical industry: Flame safety monitoring for catalytic cracking heating furnaces, hydrogen production converters, and refining tubular furnaces.

Metallurgy/Industrial heat: High-temperature kilns in steel plants; fuel oil/gas-fired heating furnaces for heat treatment.

Others: Large-scale combustion equipment such as paper mill and cement rotary kilns.
