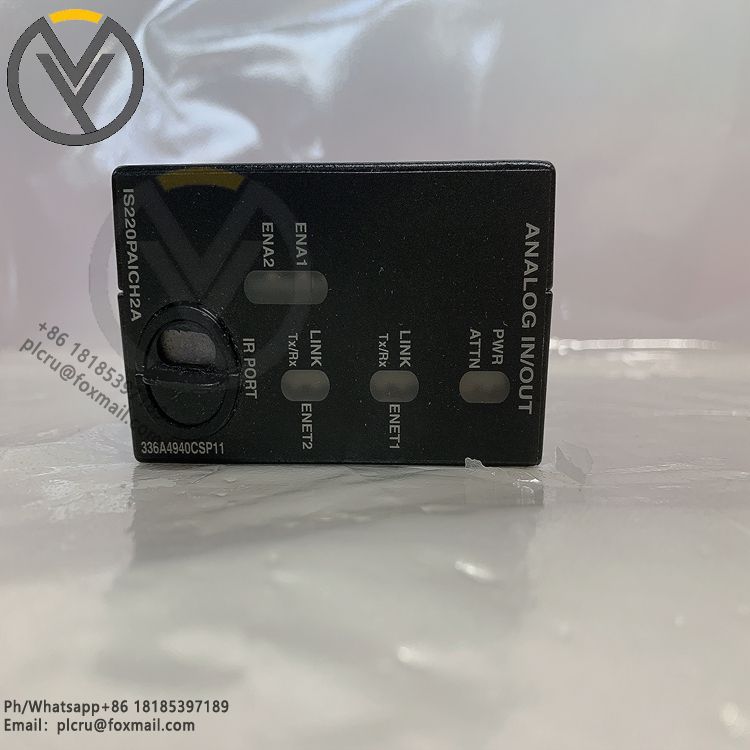

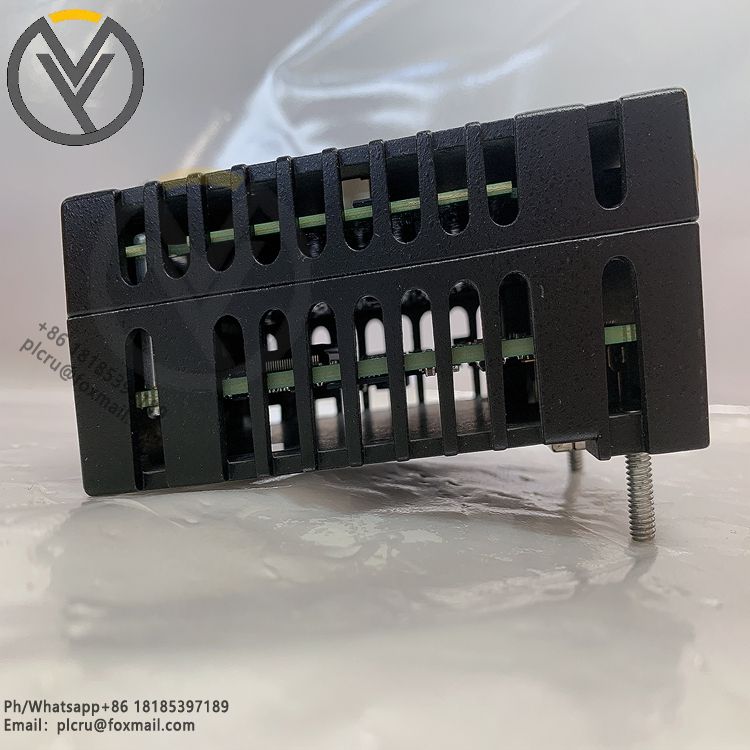

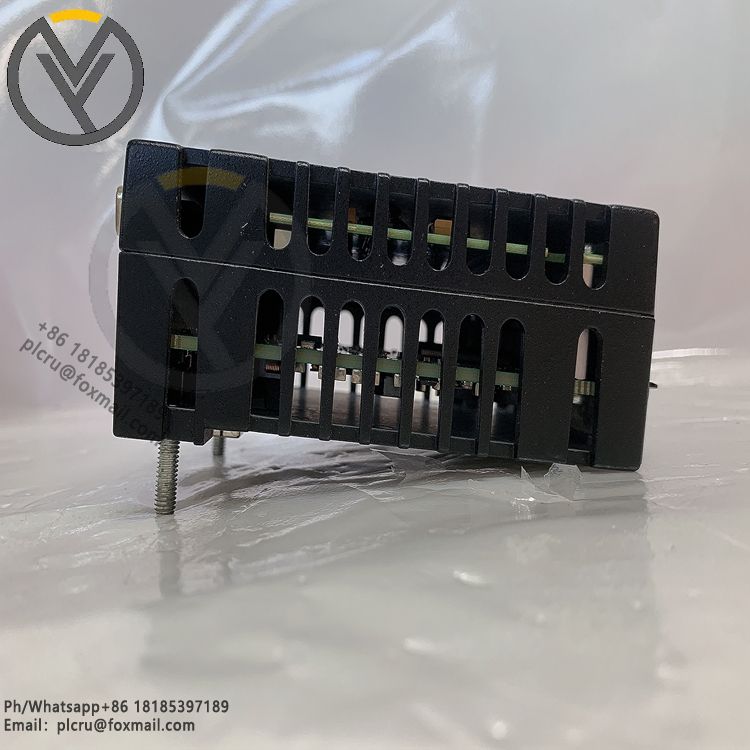

GE Fanuc IS220PAICH2A Analog I/O Module

The GE Fanuc IS220PAICH2A is an analog input/output module for GE Fanuc's Mark VIe Speedtronic control system. It is primarily used in industrial automation and control systems to acquire, process, and output analog signals. The following is a detailed introduction:

Features:

Multiple I/O Configurations: It features 10 analog input channels, the first eight of which can be configured as ±5V, ±10V, or 0-20mA current loop inputs, while the last two can be configured as ±1mA or 0-20mA current inputs. Additionally, it provides two current loop output channels with a range of 0-20mA, with the first channel also supporting 0-200mA current output.

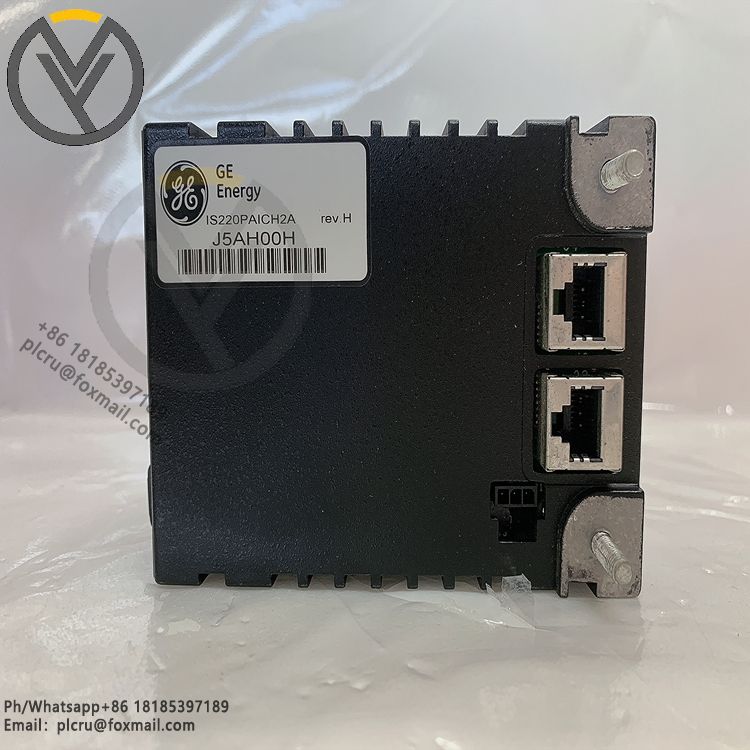

Comprehensive Communication Interfaces: It communicates with the controller via dual RJ-45 Ethernet connectors and with field devices via a DC-37-pin connector, ensuring efficient data transmission between the module and other devices. Easy Installation and Maintenance: It connects directly to a terminal board and is powered via a three-pin connector. It features a soft-start function for inrush current control. The module also features LED indicators for intuitive diagnostics, facilitating installation, commissioning, and maintenance.

Technical Parameters:

Operating Temperature Range: -40°C to +85°C.

Protection Rating: IP20.

Weight: Approximately 1050g.

Applications: This module is suitable for a variety of industrial scenarios requiring analog input and output control, such as monitoring and control of generators, transformers, and switchgear in power systems, as well as monitoring and regulating parameters such as temperature, pressure, liquid level, and flow in industrial process control.
