GE IS200WETAH1AEC Mark VIe I/O Module Circuit Board PCB
Delivery time 3 days
Product origin New/used
Email plcru@foxmail.com
Mobile/wechat /WhatsApp +86 18185397189

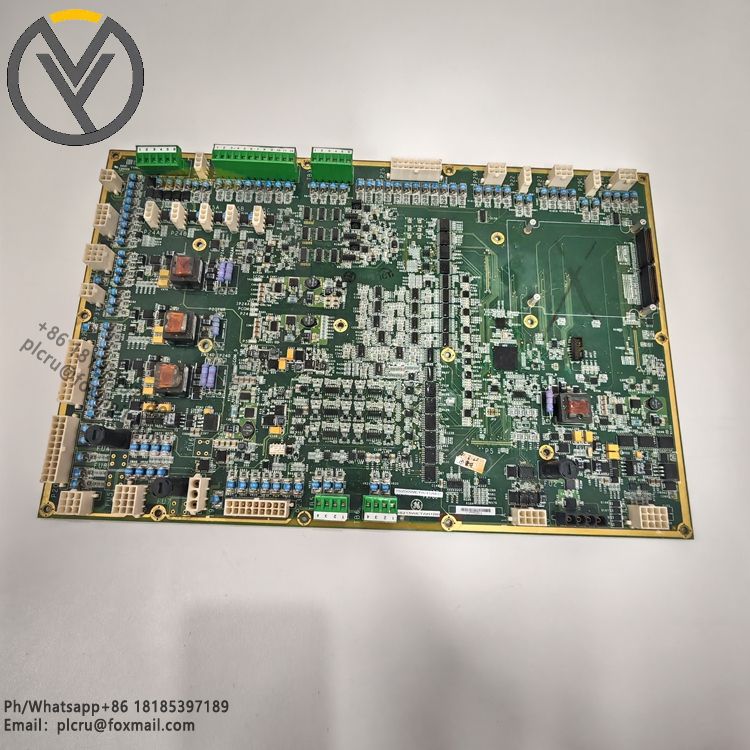

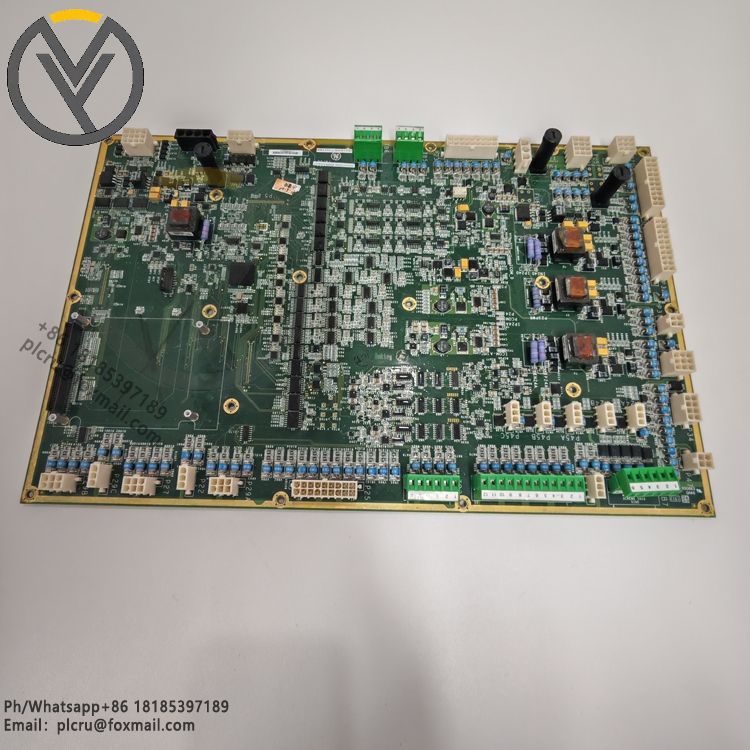

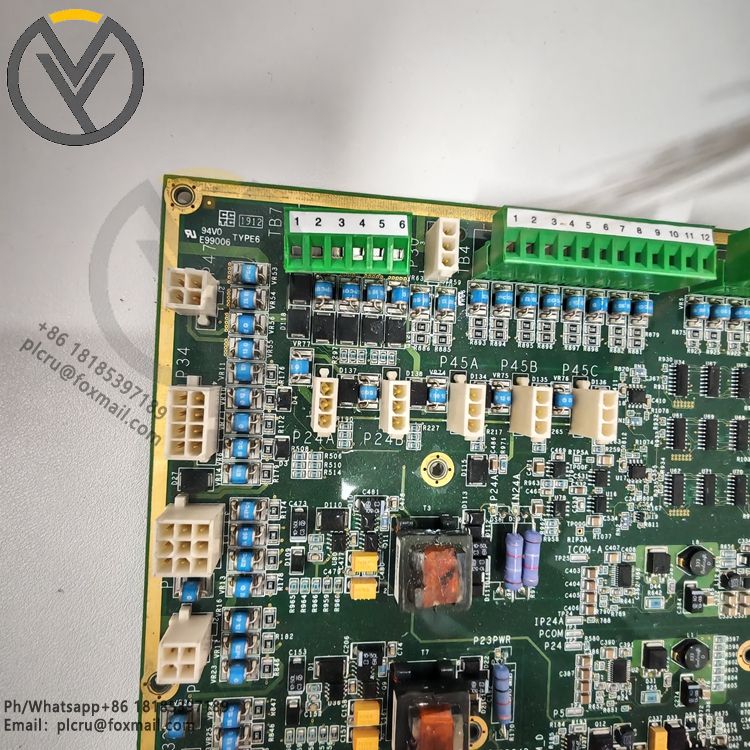

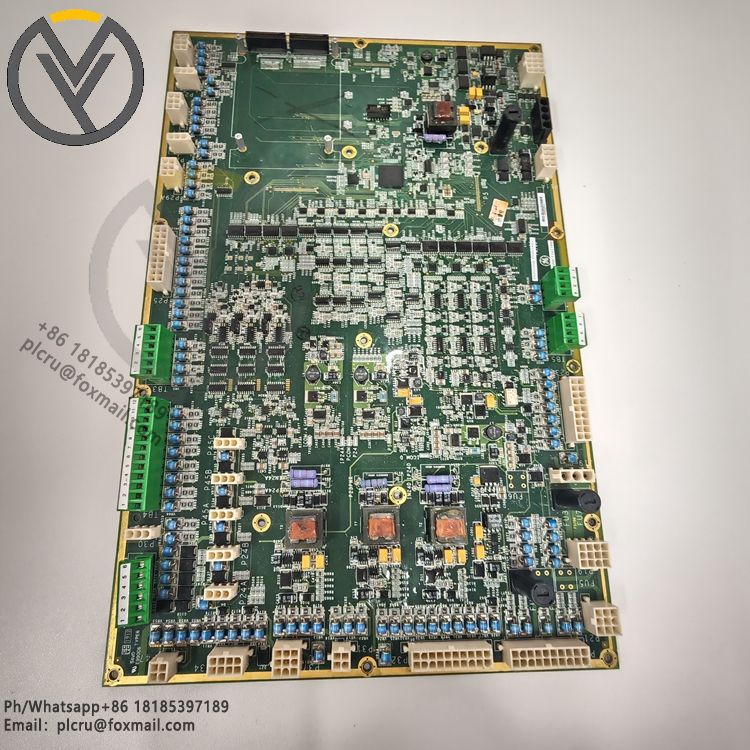

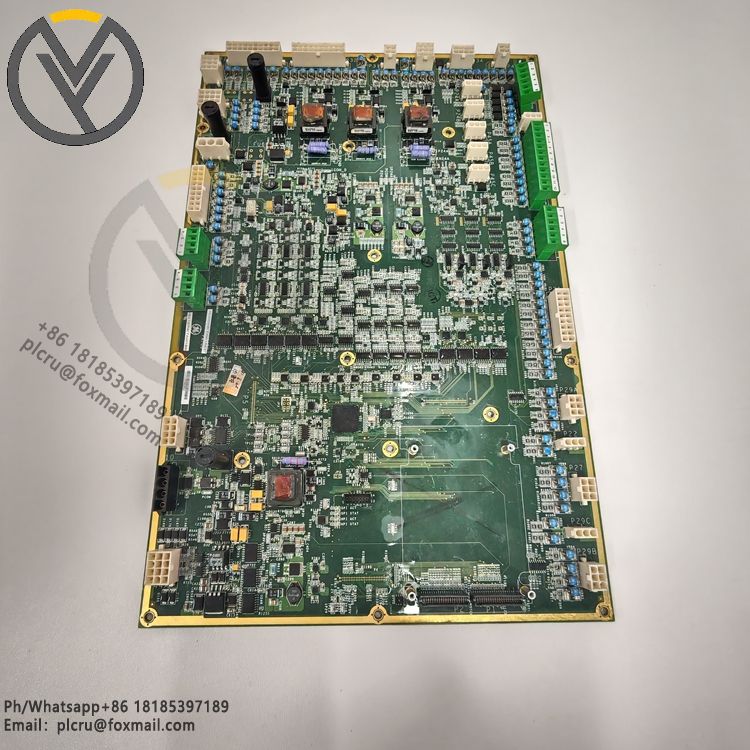

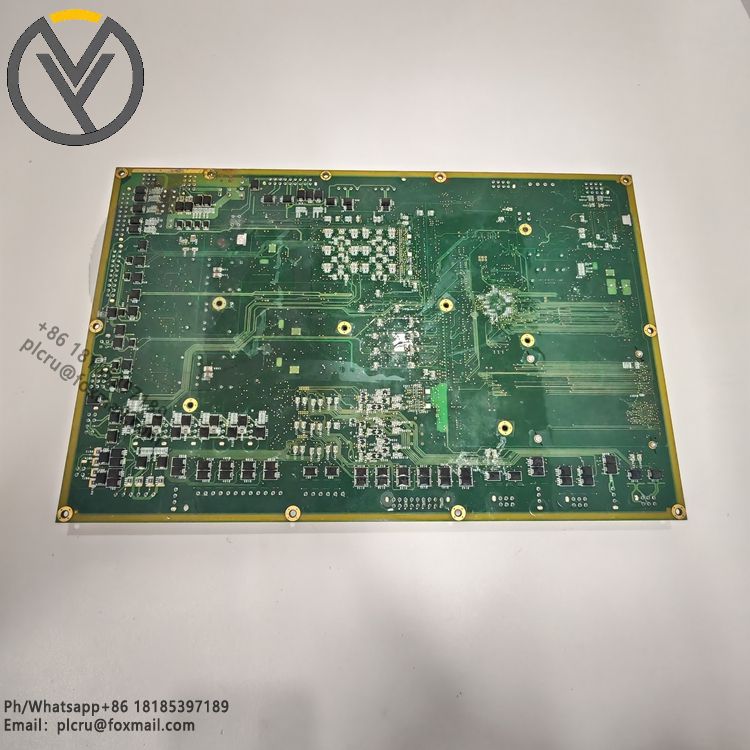

The GE IS200WETAH1AEC is a circuit board manufactured by General Electric (GE).
Features
Connectivity: This board can be connected to the IS210BPPBH2C daughterboard for enhanced functionality.
Circuit Protection: Seven built-in fuses provide immediate circuit disconnection in the event of an overload, short circuit, or other abnormality, protecting other components from damage.
Voltage Conversion: Equipped with four transformers—three combined and one located separately on the board—they convert the input voltage to a suitable operating voltage for the various components on the board.
Signal Connections: Six terminal blocks and over 45 plugs or connectors, including conductive connectors, vertical pin connectors (male), and female plugs, are provided for signal connections and power supply to other circuits or devices. Testing and Debugging: Over 25 test points and multiple jumpers are provided. The test points can be used to measure circuit parameters such as voltage and current, facilitating troubleshooting and debugging. The jumpers can be used to set the board's operating mode and parameters.
Voltage Regulation: Over 100 voltage regulators are arranged parallel to the three edges of the board to stabilize the output voltage, ensuring that components on the board operate within a stable voltage environment.
Technical Specifications
Dimensions: Approximately 30.48 cm × 30.48 cm × 5.08 cm (12 in × 12 in × 2 in).
Weight: Approximately 4.54 kg (10 lbs).
Operating Temperature Range: -40°C to +85°C.
Storage Temperature Range: -65°C to +125°C.
Humidity: 0% to 95% non-condensing.
