GE IS200TREGH1BDB Trip Emergency Termination Board
Delivery time 3 days
Product origin New/used
Email plcru@foxmail.com
Mobile/wechat /WhatsApp +86 18185397189
The GE IS200TREGH1BDB Trip Emergency Termination Board is a turbine emergency tr
The GE IS200TREGH1BDB Trip Emergency Termination Board is a turbine emergency trip termination board manufactured by General Electric and is part of the Mark VI control system. The following is a detailed introduction:
Basic Information
Model: IS200TREGH1BDB
Manufacturer: General Electric
Origin: USA
Dimensions: 7.0 inches x 13.0 inches
Temperature Rating: 0 to 60 degrees Celsius
Features
Emergency Trip Function: Ensures rapid and reliable turbine shutdown in critical fault conditions, protecting equipment from damage.
Signal Processing: Manages trip signals from various turbine sensors, initiating emergency shutdown procedures when necessary.
Power Supply: Provides positive DC power to up to three emergency trip solenoid valves, ensuring system safety under critical conditions.
Balanced Operation: Works in coordination with the TRPG board to provide balanced power distribution.

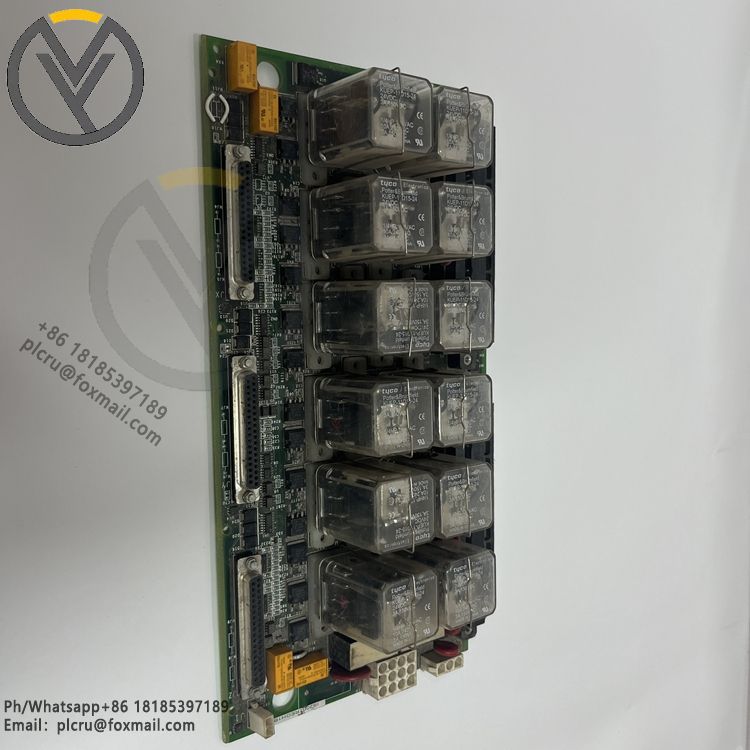

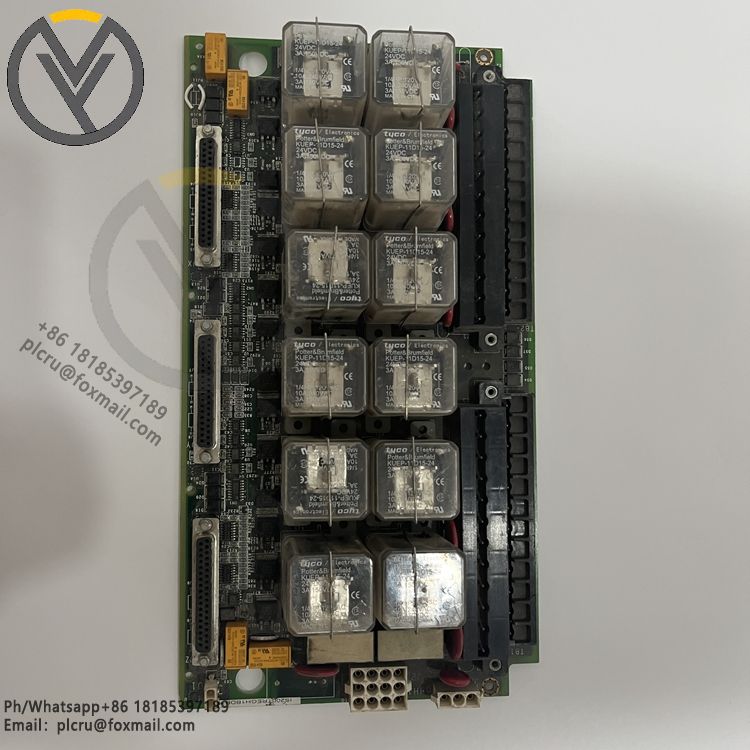

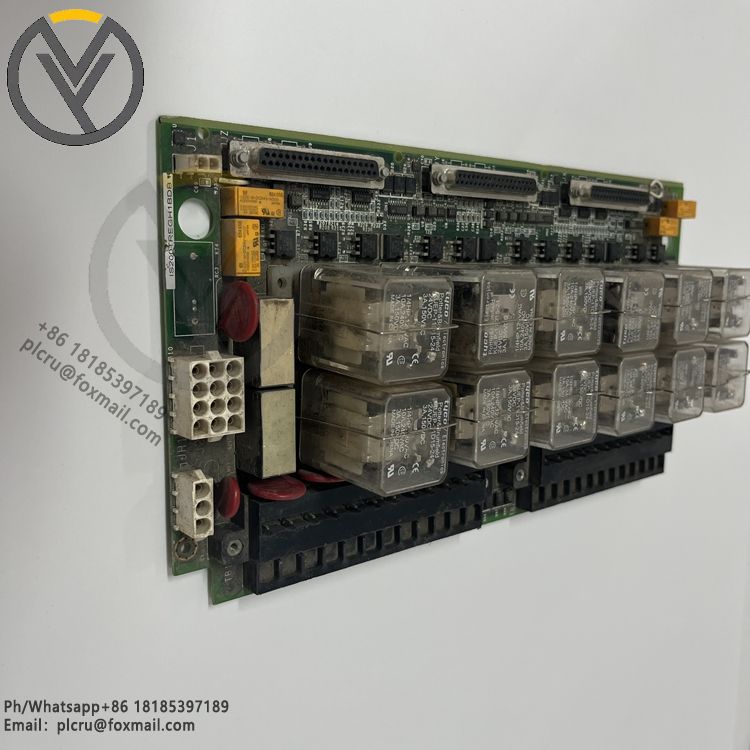

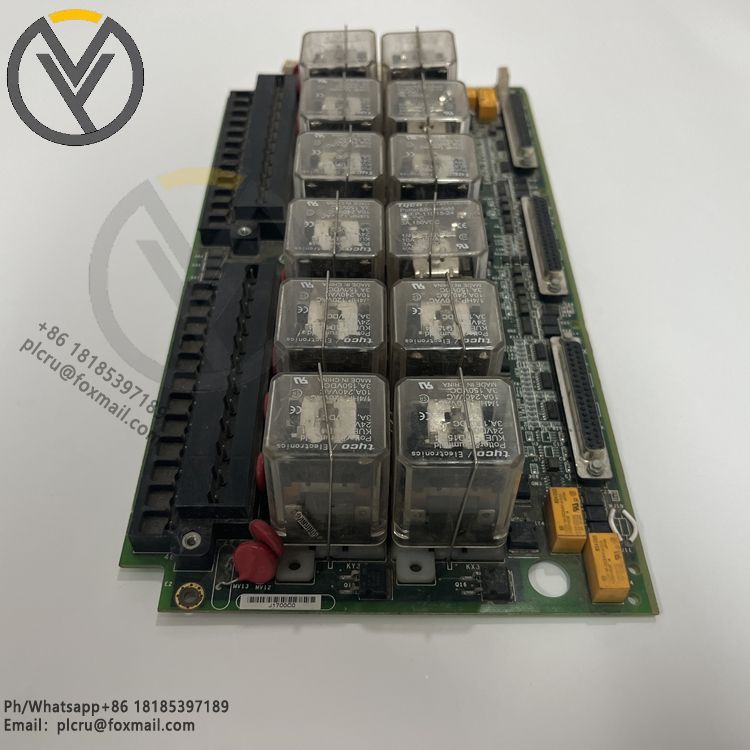

Hardware Filtering: A trip interlock filter with a 4ms hardware filter enhances system stability and reliability. Design: The board contains twelve relays arranged in two rows of six each. Additionally, there are components such as metal oxide varistors and three white jumper terminals.
Purpose
In industrial turbine applications, this terminal board ensures safe and reliable operation of turbine control systems by processing critical trip signals. It seamlessly integrates with GE turbine control systems, monitoring turbine parameters in real time, detecting abnormal conditions, and triggering emergency trips when predefined conditions are met, thereby reducing downtime and preventing costly equipment damage.
Maintenance and Repair
The design facilitates system maintenance and troubleshooting, helping to improve maintenance efficiency and reduce maintenance costs.
