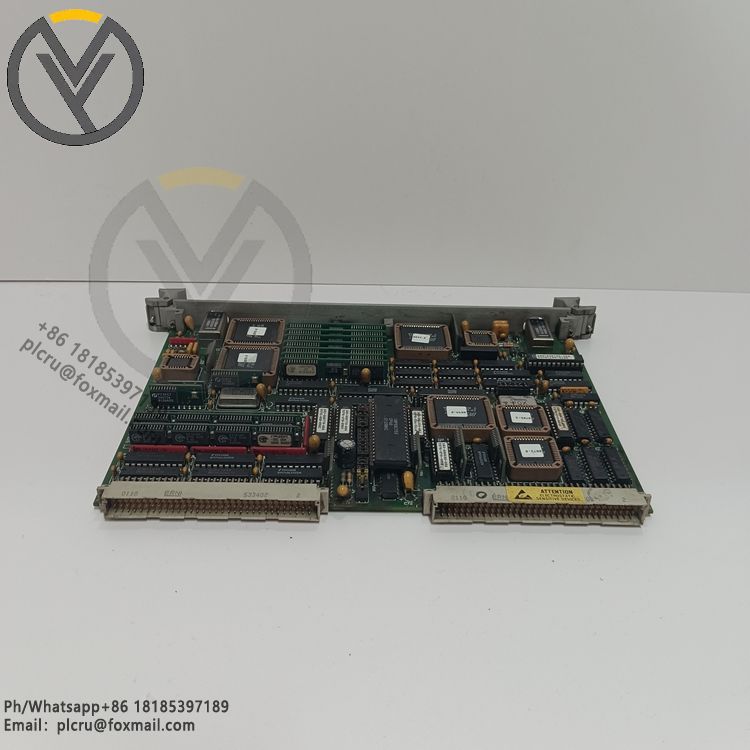

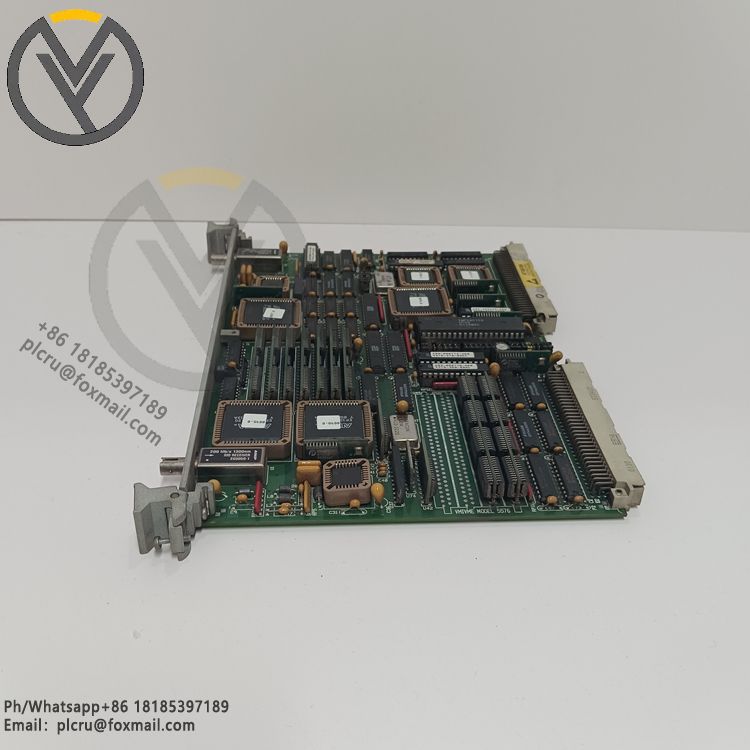

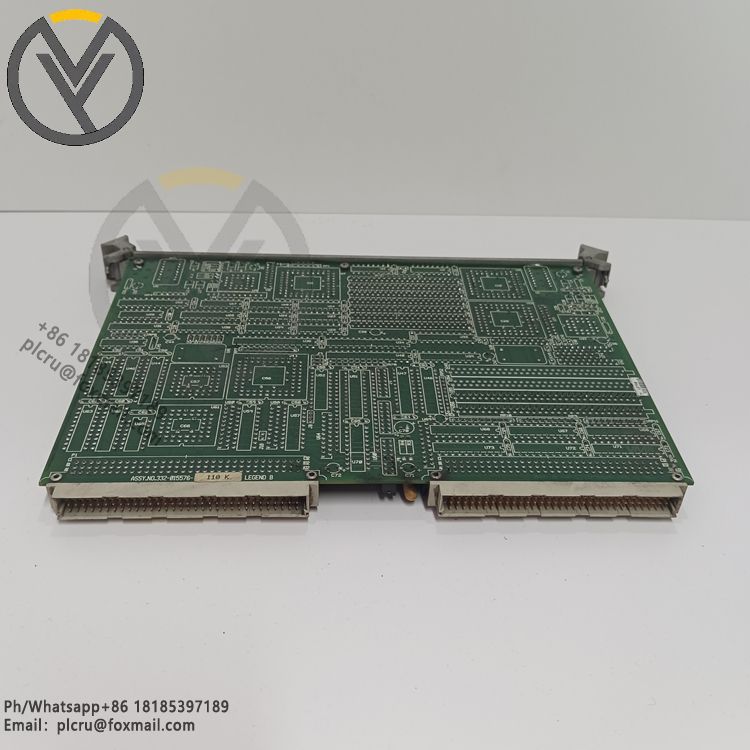

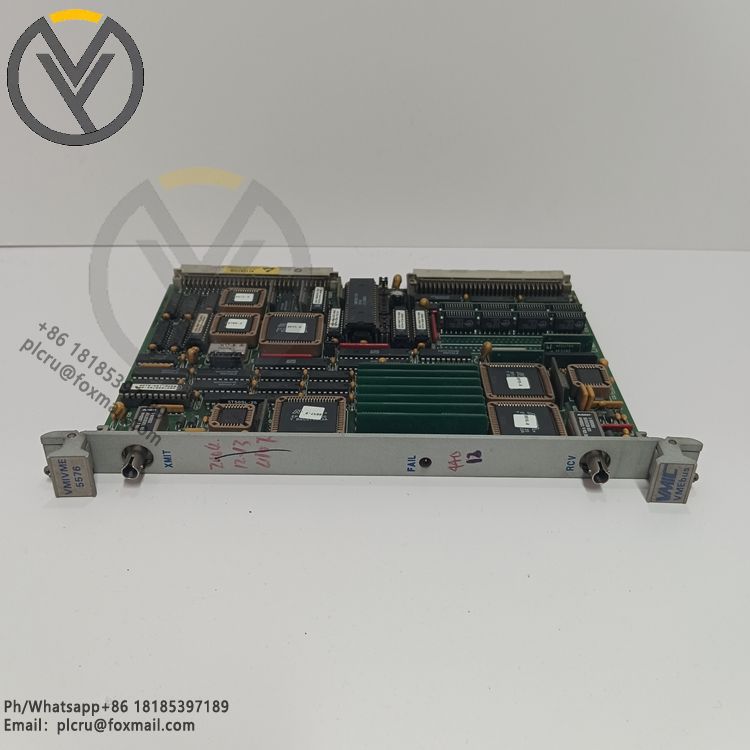

GE VMIC VMIVME-5576-000 Fiber Optic Reflection Memory

GE VMIC VMIVME-5576-000 is a high-performance fiber-optic reflective memory. It connects multiple VME nodes through a fiber-optic network, enabling high-speed and efficient data sharing and communication. It is particularly suitable for distributed computer systems that require high data throughput and low latency. The relevant introduction is as follows:

Communication rate: Supports serial rates up to 170Mbaud to ensure fast data transmission between nodes.

Memory technology: Using reflective memory technology, data written to one node is automatically copied to the memory of all nodes on the network, facilitating data sharing.

Node connection: Supports up to 256 nodes, with a maximum distance of up to 2000 meters between nodes.

Data transmission rate: Up to 6.2Mbyte/s in non-redundant transmission mode and 3.2Mbyte/s in redundant transmission mode.

Interrupt function: Any node on the network can generate an interrupt in other nodes or all nodes through a command, which can be used to synchronize system processes or track data.

Processor overhead: The processor does not participate in network operation, and no processor overhead is required, which simplifies system design and maintenance.

Memory configuration: Each reflective memory board can be configured with 256Kbyte to 1Mbyte of onboard SRAM to meet different storage requirements.
