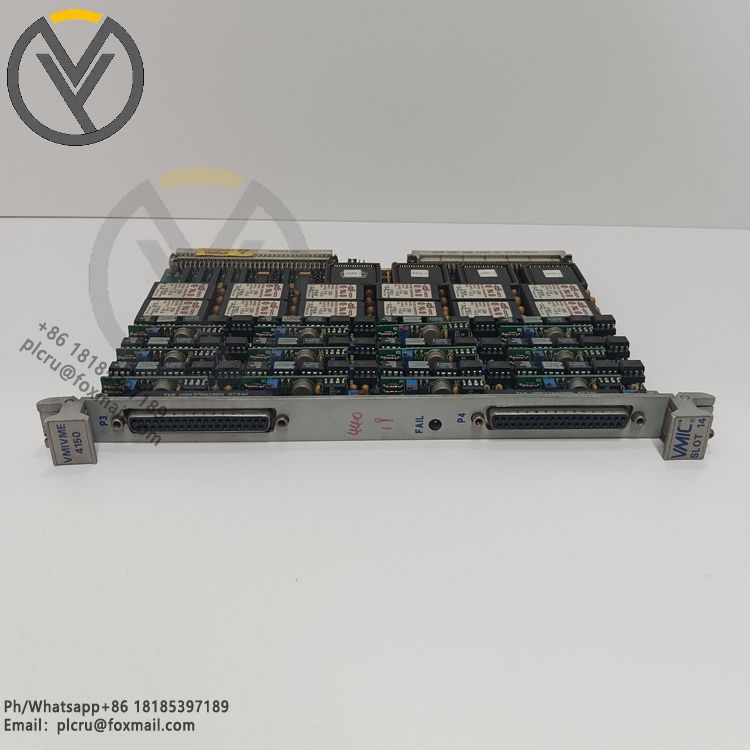

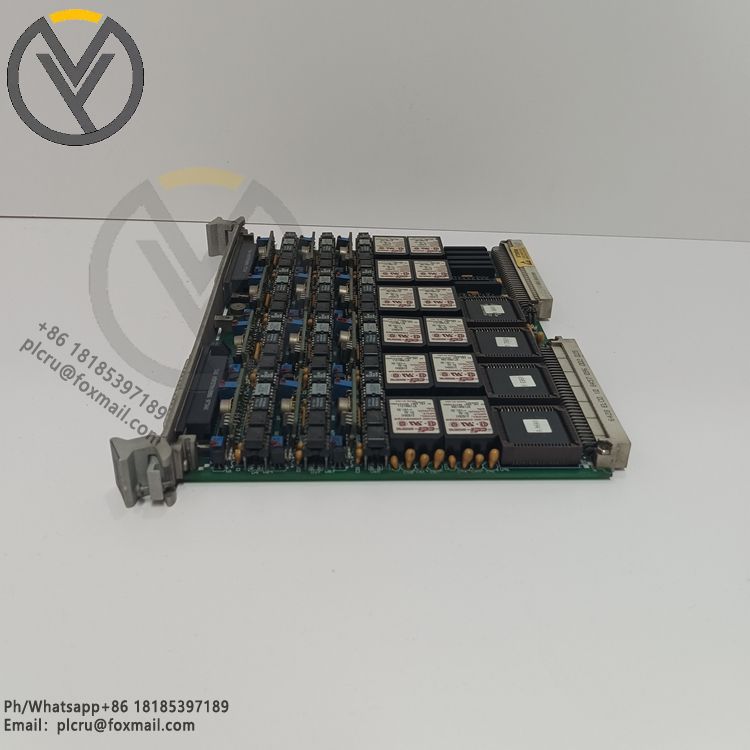

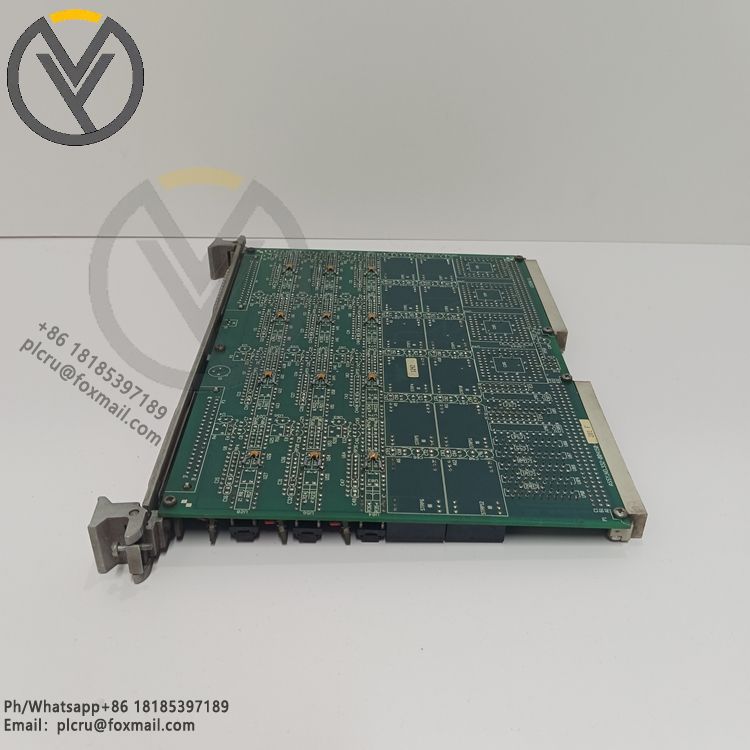

GE VMIC VMIVME-4150-201 Isolated 12-bit Analog Output Board

GE VMIC VMIVME-4150-201 is an isolated 12-bit analog output board with high precision and high isolation. It is mainly used for signal output and control in industrial automation control systems. The relevant introduction is as follows:

Channel characteristics: It has 12 analog output channels, each channel is electrically isolated from other channels and VME bus, and the isolation voltage can reach 1000Vpk.

Output range: The voltage output range is optional, bipolar can be selected as ±2.5V, ±5V or ±10V, and unipolar can be selected as 0 to 2.5V, 0 to 5V or 0 to 10V. The current loop output can provide 4 to 20mA, 0 to 20mA or 5 to 25mA.

Output accuracy: The voltage output accuracy is 0.05%, and the current loop output accuracy is 0.08%, which can meet the accuracy requirements of most industrial control scenarios.

Load capacity: Within the entire 10V voltage output range, the load capacity is 10mA, which can drive external devices with a certain load.

Data coupling: Optical data coupling is used to provide complete current isolation, which effectively enhances the anti-interference ability.

Functional design: It has a static readback data register to simplify program control. The front panel entry supports field connection, and the voltage output has a programmable connection/disconnection operation, which is helpful for system testing.

Module configuration: It can be configured with 4, 8 or 12 channels according to actual needs, which increases the flexibility of use.
