GE IS215UCCCM04A Compact PCI Controller Board

GE IS215UCCCM04A is a compact PCI controller board in the General Electric (GE) Mark VIe turbine control system series. The specific introduction is as follows:

Basic information: The product type is VME controller, also known as CPCI 3U compact PCI. The PCB coating style is M04 coating, and the functional version is 1A.

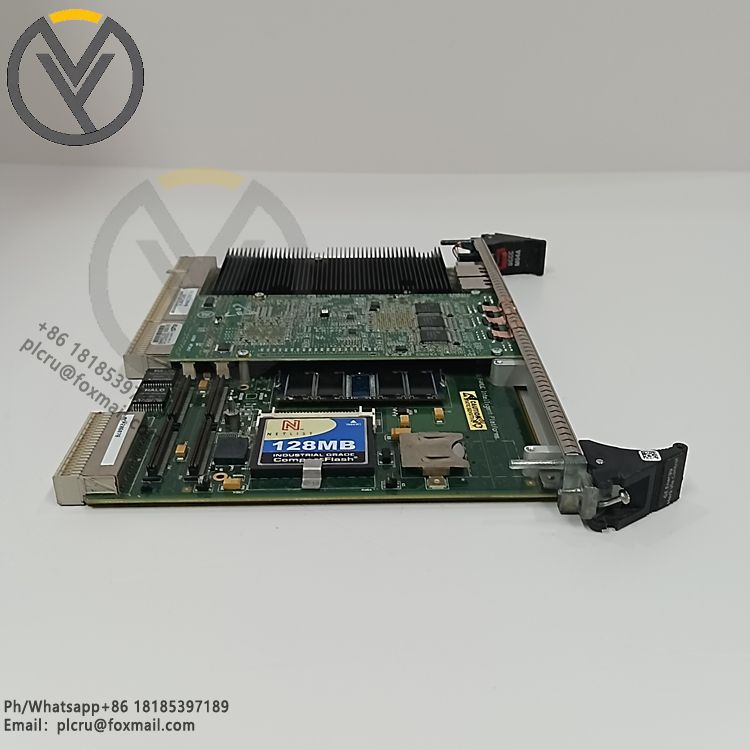

Performance parameters: It uses a 1.6GHz Intel Pentium M processor, equipped with 256MB of memory, and is equipped with a QNX Neutrino operating system. Equipped with a 128MB SD card for data storage.

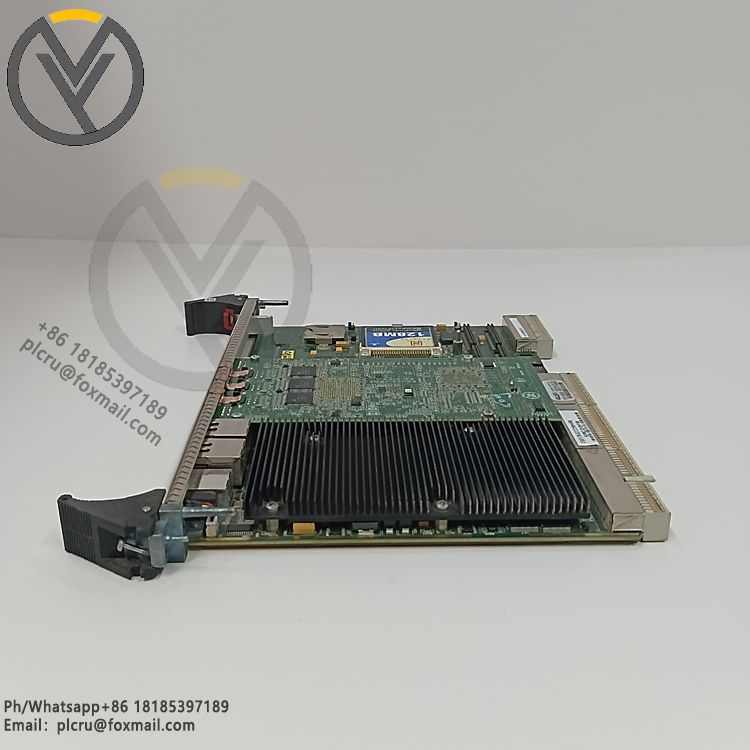

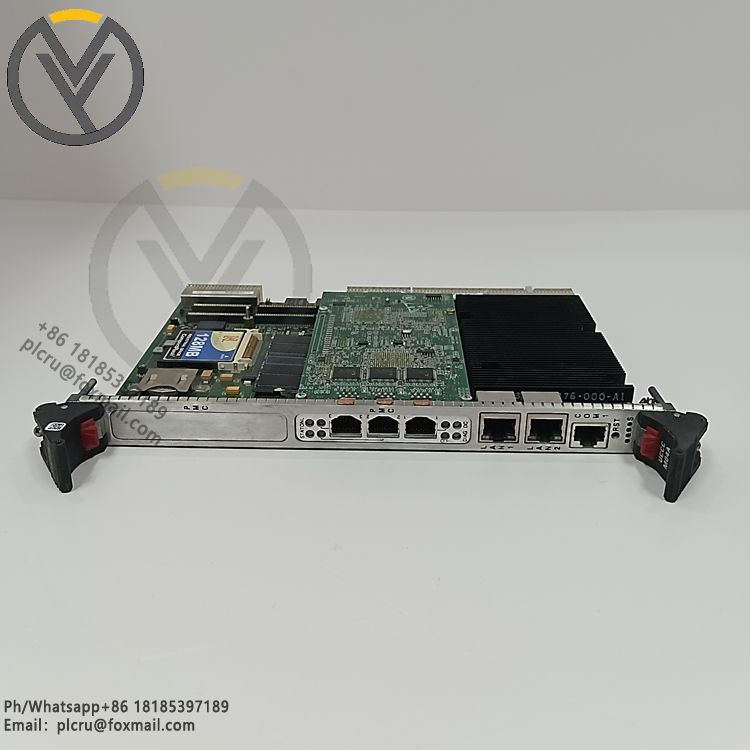

Appearance design: There are six Ethernet type ports on the panel, each of which is classified according to its purpose, which is convenient for users to connect different devices. There are also some indicator lights on the panel to display the working status of the device, and there is a small reset button at the bottom to reset the controller board when necessary. The controller board is locked in the installation position by the male terminals on the back of the circuit board and two large buckles at both ends of the panel.

Features: It has multiple interference suppressors to block interference from external power sources such as radios and mobile phones to ensure stable operation. At the same time, it uses multiple capacitor types to store energy, and when the circuit board needs to clear unused energy, it will direct the energy to the resistor.
