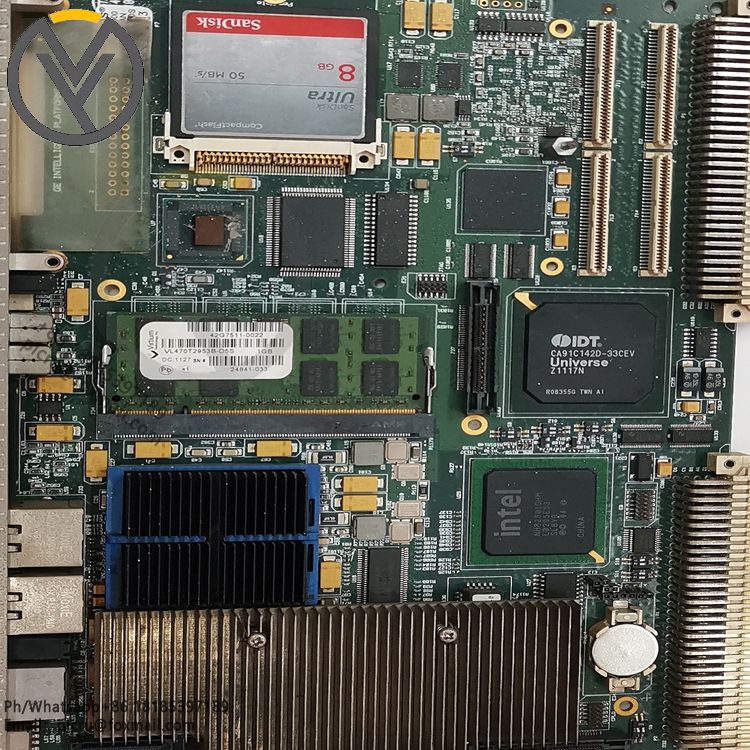

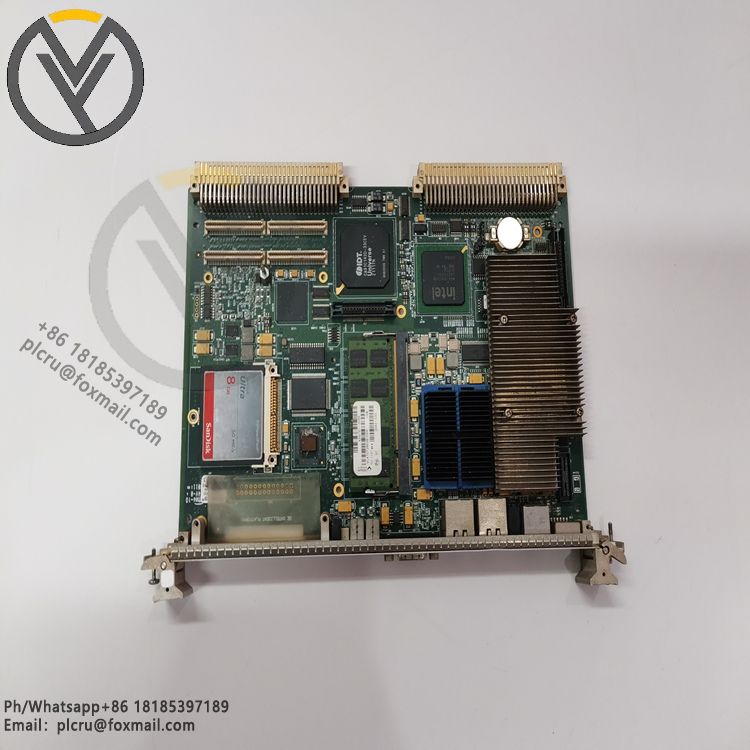

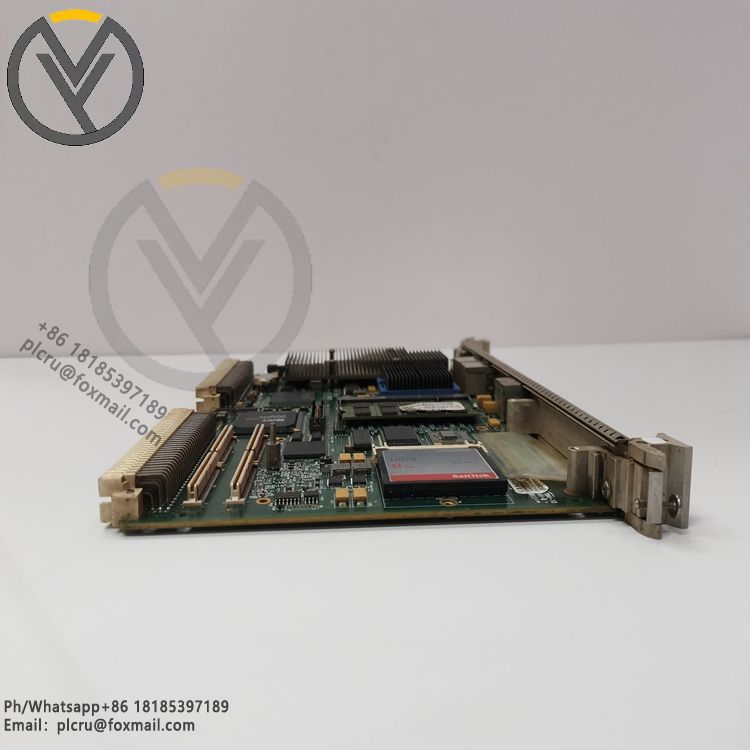

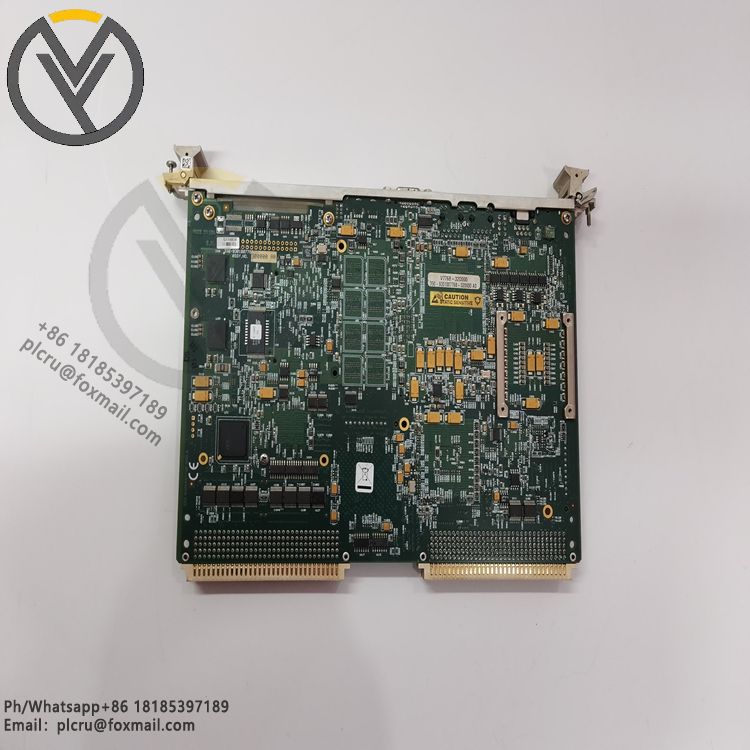

GE V7768-320000 3509301007768-320000A0 Single Board Computer

The GE V7768 - 320000 (part number 3509301007768 - 320000A0) is a high-performance single-board computer (SBC) designed for industrial control and embedded systems. Here are some of its features:

Processor: Intel Core 2 Duo processor with a clock speed of up to 2.16GHz, Celeron M processor is also available, the latter can make the upper limit of operating temperature higher.

Memory: Supports up to 2GB of DDR2 SDRAM, implemented through a single SO-DIMM.

Storage: Supports bootable Compact Flash with a maximum capacity of 8GB.

Chipset: Integrated Intel 945GME Express chipset.

Network function: Supports network boot (PXE).

Serial port: There are two 16550-compatible serial ports, supporting independent 16-byte FIFOs and a maximum baud rate of 115kbps.

Timers: Two 16-bit and two 32-bit timers, fully software programmable, plus watchdog timer with programmable interval, interrupt, and onboard reset trigger.

Expandability: One PCI-X PMC expansion site to support additional function cards or modules.

Size: 6U (4HP) single-slot Eurocard form factor.

Power: Requires +5VDC and +12VDC power supplies.

Operating Temperature: 0°C to +55°C for Intel Core 2 Duo processors and 0°C to +70°C for Intel Celeron M processors.

Storage Temperature: Storage temperature range is -40°C to +80°C.

Relative Humidity: 5% to 95% relative humidity, non-condensing, for both operating and storage conditions.

This single board computer is suitable for industrial process control, infrastructure management, machine automation, environmental monitoring, building automation, and other fields.
