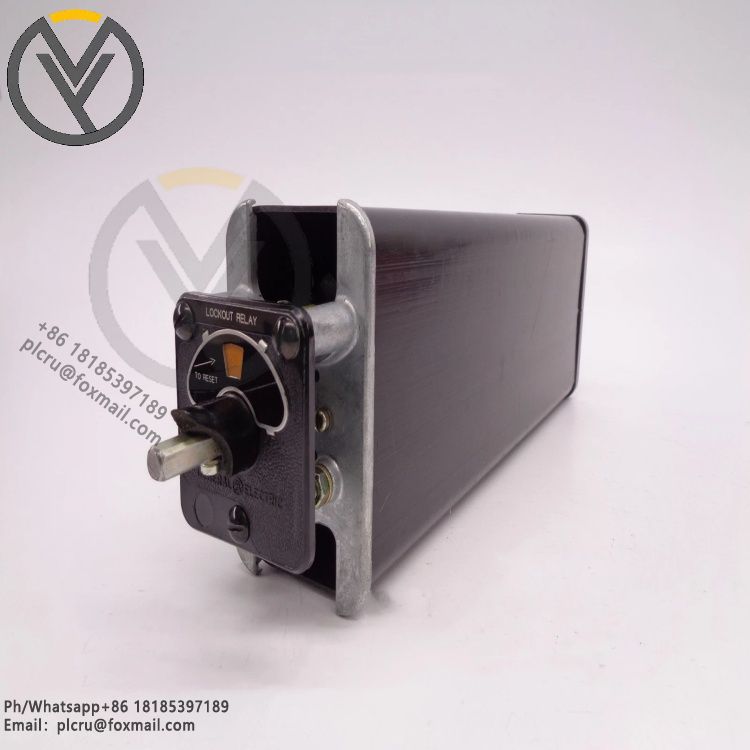

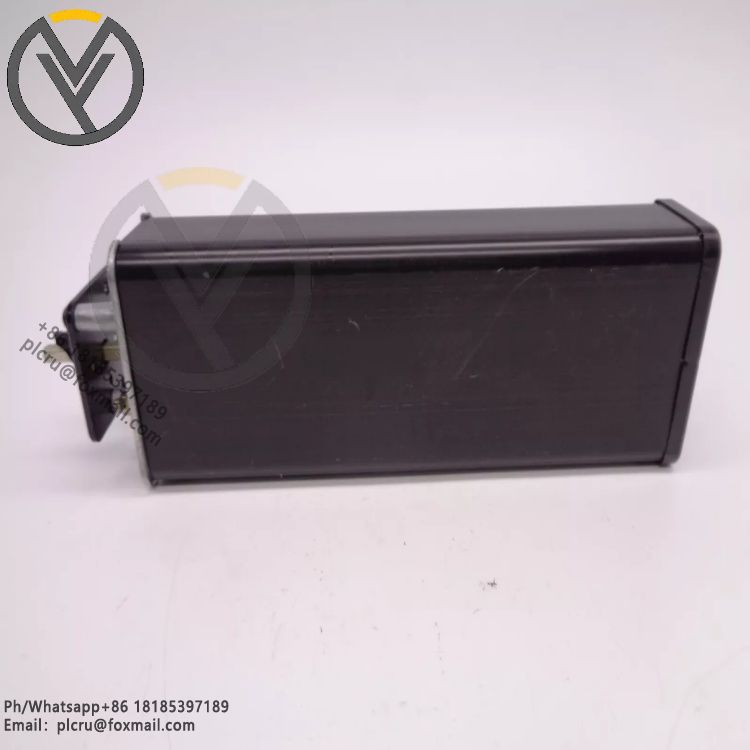

GE 12HEA61C239X2 MultiContact Auxiliary Lockout Relay
Delivery time 3 days
Product origin New/used
Email plcru@foxmail.com
Mobile/wechat /WhatsApp +86 18185397189
GE 12HEA61C239X2 is a multi-contact auxiliary interlocking relay produced by Gen
GE 12HEA61C239X2 is a multi-contact auxiliary interlocking relay produced by General Electric (GE) and belongs to the HEA series. The following are some detailed information about it:
Basic functions and applications: The HEA series high-speed multi-contact auxiliary relays are suitable for situations where multiple operations need to be performed simultaneously through the operation of a single relay. They can provide electrical isolation output and are used for tripping and/or locking circuit breaker control, etc.
Structural features: Manufactured with the same universal components as the SB-1 type conversion and control selector, it is capable of resisting shock and vibration.
Contact characteristics: The HEA61 relay is a high-speed manual reset auxiliary relay that can be configured with 2, 6, 10, 14 and 16 contacts (plus two coil circuit contacts). It is speculated that the 12HEA61C239X2 might have a similar contact configuration option, with a closing current range that its contacts can withstand of 50A per minute (20A continuous), suitable for voltages not exceeding 600V.
Coil characteristic: The "125Vdc" in the model indicates that the operating power supply voltage of this relay is 125 volts DC.
Comparison of related models: It belongs to the HEA series along with models such as HEA62 and HEA63. Based on HEA61, HEA62 adds a resistor diode combination in the coil circuit to suppress the arc that may occur when the contacts are interrupted in the DC circuit. HEA63 is based on the standard HEA61 and adds a rotating solenoid for the electrical reset of relays. It is suitable for situations where the operator and the relay are far apart.
