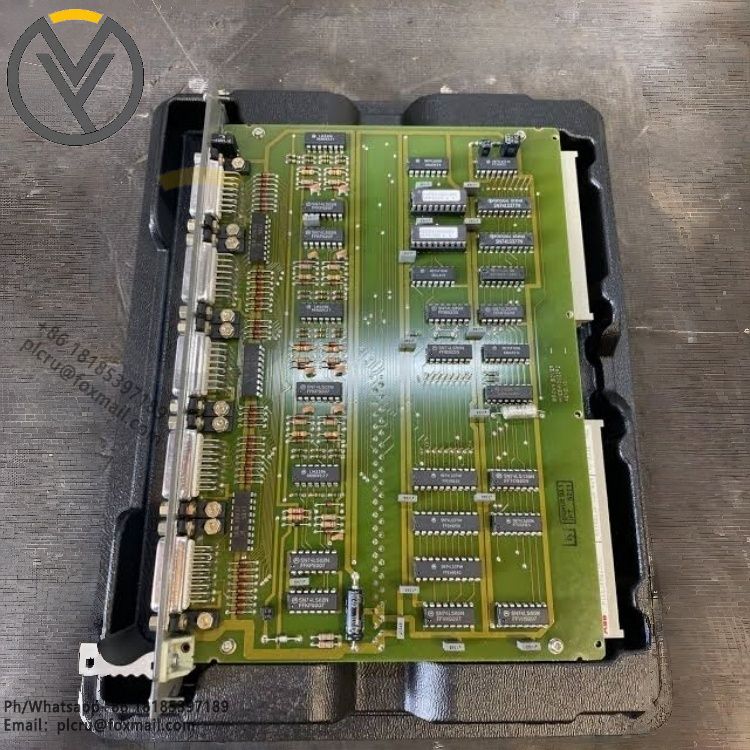

ABB HIEE300025R2, VDA330A02

Interface Module for UNITROL 5000 Excitation System

General description This interface module is a dedicated internal signal interface board designed for the ABB UNITROL 5000 generator excitation control system. It performs signal isolation, signal conversion and interconnection between different functional units inside the excitation cabinet. It transfers analog and digital control signals, status feedback signals and diagnostic signals within the excitation rack, and supports coordination between the main control board, power unit and monitoring circuits. The module adopts standard rack-mounted form for installation inside UNITROL 5000 cabinets.

Manufacturer ABB

Part number HIEE300025R2 Type code VDA330A02

Country of origin Sweden

Product lifecycle status Discontinued, obsolete spare part. ABB stopped new production and new order acceptance in 2016. No direct drop-in replacement part available. Available stock items are original surplus inventory.

Power supply 24 V DC, supplied from the internal rack power bus of UNITROL 5000.

Operating environment Operating temperature range: -20 °C to +55 °C Storage temperature range: -40 °C to +85 °C Relative humidity: 5 % to 95 %, non-condensing Protection degree: IP20, for installation inside electrical control cabinet only

Construction and mechanical PCB material: FR4 epoxy glass laminate Mounting method: standard Eurocard rack mount Approximate weight: 0.4 kg

Signal features Multi-channel isolated signal interface Supports bidirectional transmission of excitation control commands and equipment status feedback Onboard circuit provides signal conditioning and surge protection for field internal signals

Compliance Designed to comply with relevant IEC standards for power plant excitation equipment, CE marked.

Application scope Generator excitation control system, applicable for synchronous generator sets in power stations, industrial self-generation facilities.

HS code reference for Saudi customs declaration 853710

Disclaimer No official standalone datasheet published by ABB for this obsolete board. All specifications are compiled from UNITROL 5000 system documentation and industry spare part reference data. Actual parameters shall follow the marking and performance of the physical unit.
