ABB 500BIO01 1MRB150005R1/J Binary Input Output BoardProduct Type: Binary I/O in

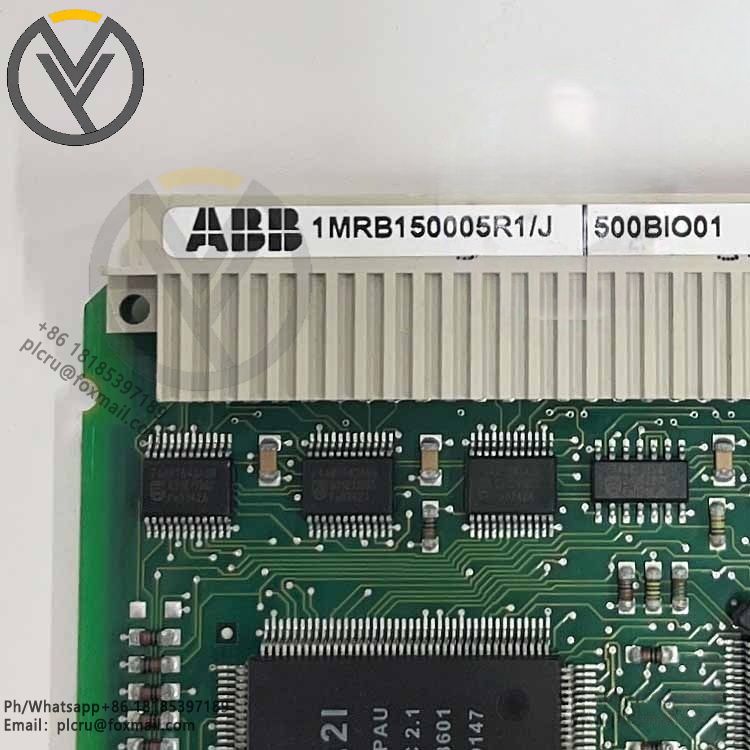

ABB 500BIO01 1MRB150005R1/J Binary Input Output Board
Product Type: Binary I/O interface board for ABB REB500 busbar protection relay system Part Number: 500BIO01, 1MRB150005R1/J Note: This is not a general-purpose PLC board; it is a dedicated signal interface module for REB500 substation busbar protection
Channel Configuration: 9 opto-isolated binary input channels, 6 relay contact binary output channels Field Signal Voltage Range: 24 V DC to 250 V DC Power Supply: Powered through the REB500 system backplane, no separate external power wiring required Input Function: Collect auxiliary contact status feedback from circuit breakers, disconnectors, isolating switches and field auxiliary relays Output Function: Relay outputs for trip commands, interlock logic and status signalling under busbar fault conditions PCB Treatment: Conformal coated circuit board for anti-humidity and anti-pollution performance in substation cabinet environments
Operating Ambient Temperature: -10 °C to +55 °C Storage Temperature: -25 °C to +70 °C Relative Humidity: 5% to 95% non-condensing Installation Format: Plug-in rack mount, fits directly into REB500 chassis slot Protection Class: IP20 for internal cabinet installation Diagnostics: Built-in module supervision, reports channel faults and board failure to the main protection unit
Core Features: Galvanic isolation between field circuits and protection logic, dry contact relay outputs, compatible with REB500 firmware logic, used for hardwired interlocking and breaker status acquisition Typical Application: Spare replacement and retrofit for legacy REB500 busbar protection systems in high-voltage power substations Product Lifecycle: Legacy protection spare part, mainly used for maintenance replacement of existing installed base
