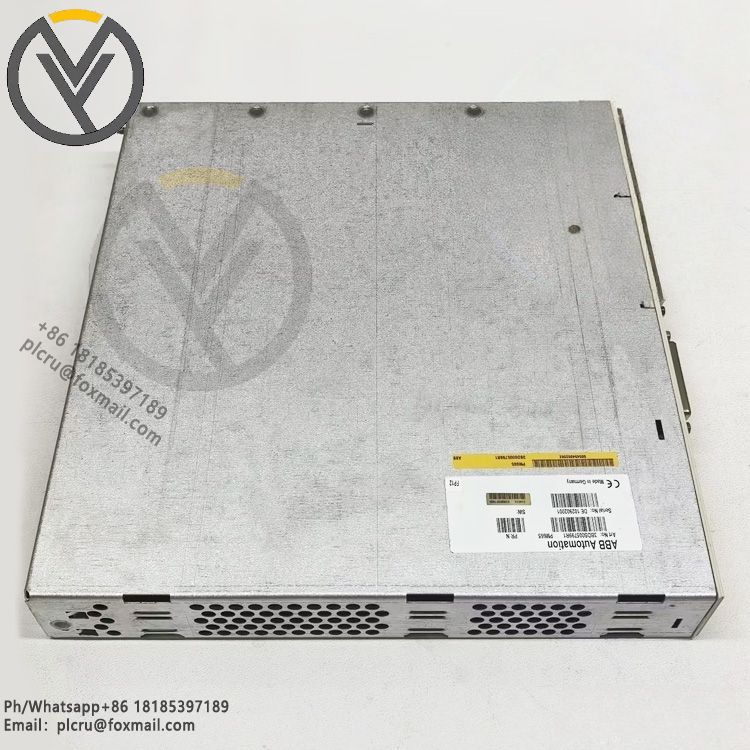

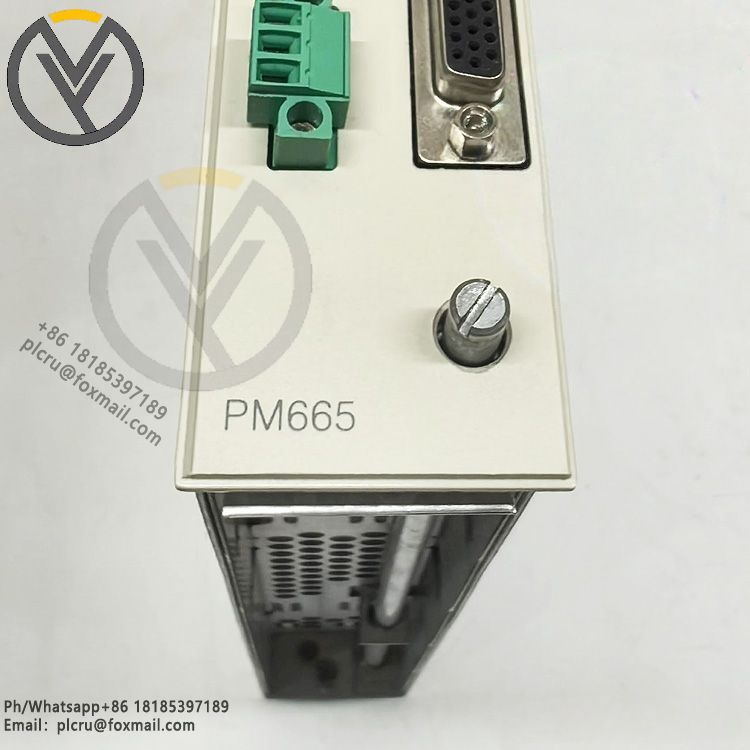

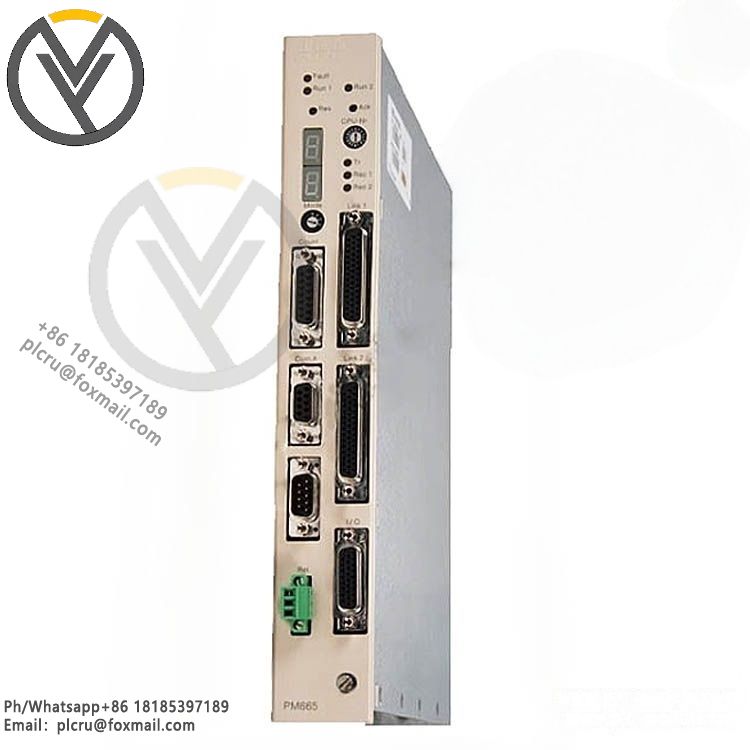

ABB PM665 3BDS005799R1 Processor Module
Delivery time 3 days
Product origin New/used
Email plcru@foxmail.com
Mobile/wechat /WhatsApp +86 18185397189
ABB PM665 3BDS005799R1 Processor ModuleProduct Type: PowerPC-based processor mod
ABB PM665 3BDS005799R1 Processor Module
Product Type: PowerPC-based processor module for ABB Advant Controller 160 (AC160) DCS system Part Number: PM665, 3BDS005799R1 System Platform: Advant Master, compatible with System 800xA integration Core Hardware: Integrated redundancy voter, high-speed link interface, dedicated speed/rotational pulse input channel, designed for high-performance turbine and sequence control
Processing Architecture: Multi-processor capable, up to six PM665 modules can operate within one AC160 controller subrack Supported I/O: Works with S600 local I/O and S800 distributed I/O clusters, recommended maximum control capacity around 1500 I/O points Communication Interfaces: Advant Fieldbus 100, supports redundant fieldbus wiring; PROFIBUS-DP available via expansion; high-speed inter-processor link for multi-CPU synchronization Special Input Function: Onboard high-speed speed input for turbine shaft speed pickup signals, suited for steam turbine, gas turbine and hydro turbine governor and protection control Redundancy Feature: Supports full processor redundancy with built-in voter logic for bumpless switchover, redundant power supply and fieldbus are also supported within the controller rack
Mounting Form: Plug-in subrack module, installed in AC160 controller base rack Physical Dimension: 273 mm height, 252 mm depth, 40 mm width Net Weight: 2.04 kg Power Supply: Backplane powered from AC160 rack power unit Event Function: High precision source-level time stamping for sequence of events recording
Operating Temperature: 0 °C to +55 °C cabinet installation Storage Temperature: -25 °C to +70 °C Humidity: 5% to 95% non-condensing Protection Rating: IP20, for indoor control cabinet mounting PCB Treatment: Conformal coating option available for high humidity or polluted cabinet environments
Core Applications: Turbine control, burner management, power plant boiler and auxiliary control, combined cycle power island control Lifecycle Status: Legacy spare module for existing installed Advant Master / AC160 systems, mainly for replacement and retrofit of operational power plant DCS Certification: CE marked, RoHS compliant
