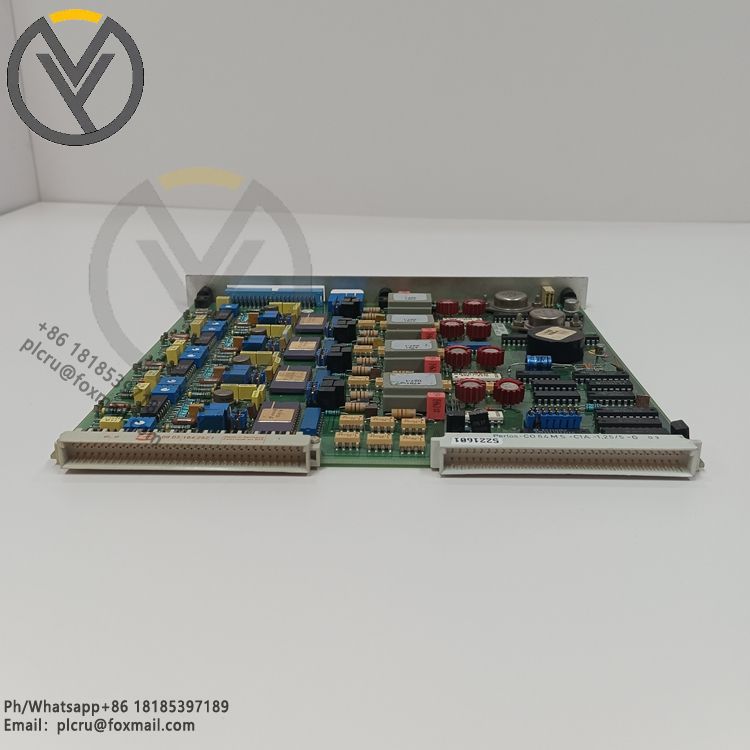

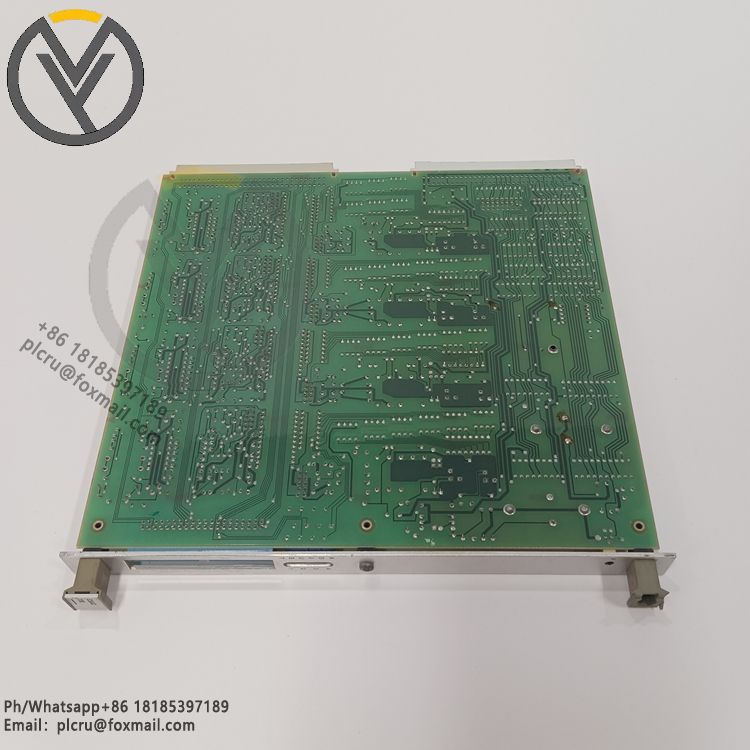

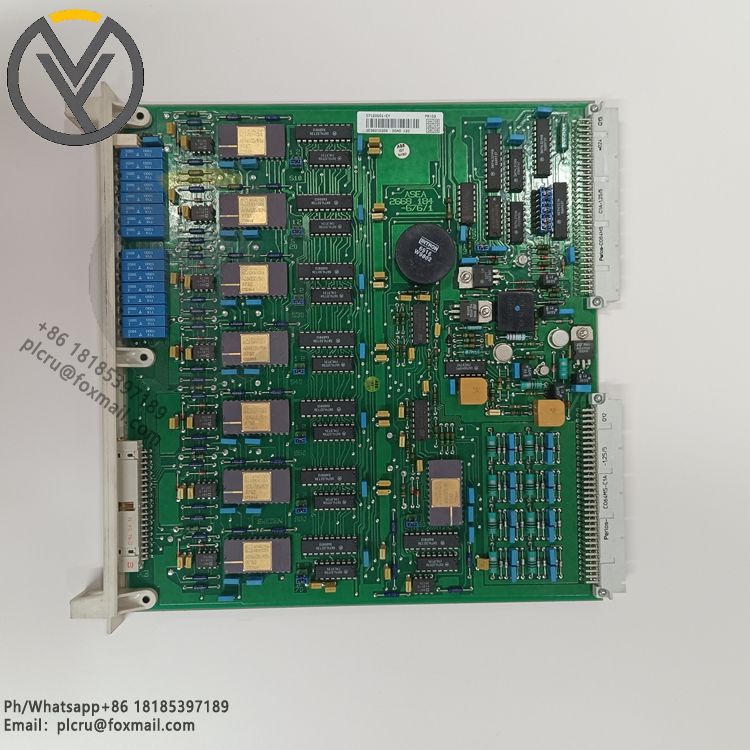

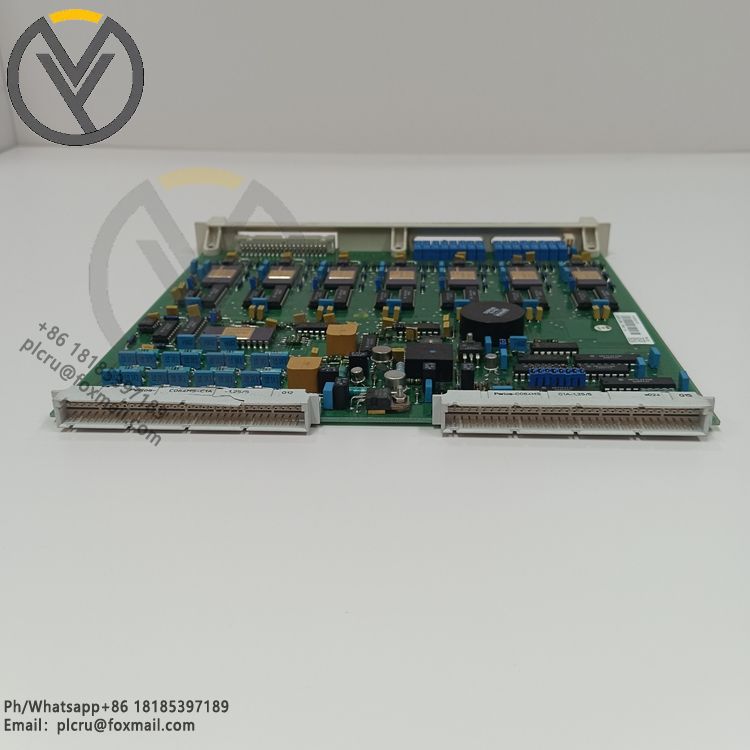

DASO110 57120001-AT1 ABB analog output 4 channels

DASO110 57120001 - AT1 is an analog output module from ABB. However, according to relevant information, it is actually a 16-channel digital output module, not a 4-channel analog output module. The specific introduction is as follows:

Functional characteristics: As a key interface in industrial automation systems, it can convert digital instructions of the control system into physical actions and accurately control discrete actuators such as valves, contactors and motors. Each channel has surge protection and diagnostic feedback functions, which can monitor the output status in real time and quickly detect faults such as open circuits or overloads.

Technical parameters: It has 16 current-isolated output channels, supports 24–230V AC/DC AC/DC loads, and the maximum current per channel is 2A (resistive load) and the isolation voltage is 2.5kV RMS. It is powered by a 24V DC±10% redundant power supply, with an operating temperature range of -25°C to +70°C, and complies with CE, UL, IEC 61131-2 and other certification standards.

Physical specifications: The size is 100mm×160mm×60mm, the weight is about 0.5kg, and it adopts 35mm rail installation, which is convenient for installation in the control cabinet.

Application areas: It can be seamlessly integrated into PLC, DCS and SCADA systems, and is widely used in industries such as oil and gas, power generation and manufacturing. It can provide reliable signal transmission and strong fault tolerance in complex industrial environments.
