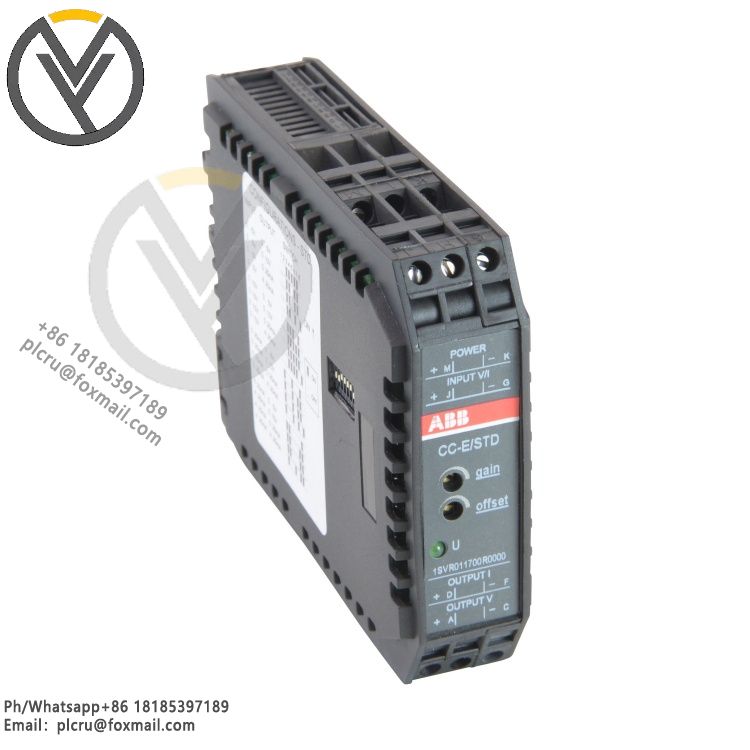

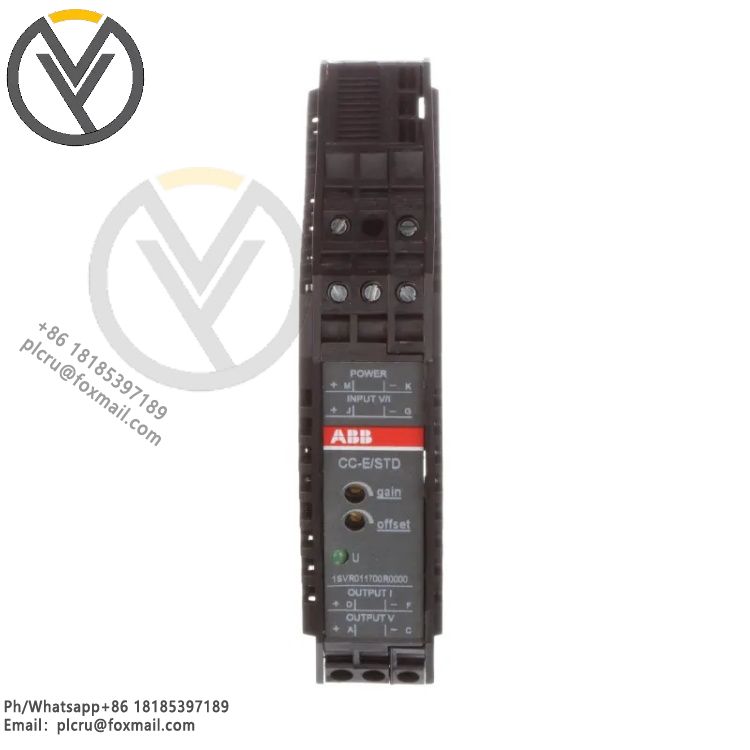

ABB 1SVR011700R0000 CC-E/STD Signal Converter

ABB 1SVR011700R0000 CC - E/STD signal converter is an analog standard signal converter that has been discontinued and has no replacement model. The following is a detailed introduction:

Working power supply: The power supply voltage is 24V DC.

Input and output signals: The input signal supports standard signals such as 0 - 5V, 0 - 10V, 0 - 20mA, 4 - 20mA, etc. The output signal is also 0 - 5V, 0 - 10V, 0 - 20mA, 4 - 20mA, etc. The input and output signal ranges can be directly configured through the dip switch on the side.

Accuracy: The accuracy is ±0.5% of the full scale.

Response time: The response time is 200µs.

Electrical isolation: It has three-way electrical isolation, respectively for the power supply voltage, output contacts and measurement circuit, to ensure the safety of operation and the stability of signal transmission.

Environmental parameters: The ambient temperature range is 0 - +60°C (operating) / -20 - +80°C (storage), and the protection level is IP20.

This signal converter can be widely used in industrial automation, process control, temperature measurement and other fields. It can amplify, convert and isolate various analog signals, and can also process RTD thermocouple temperature signals (such as PT100) and thermocouple signals (J type and K type). Users can adjust the gain and offset within the range of ±5% through the built-in potentiometer, and the low-pass input filter configured inside the product can effectively suppress high-frequency electromagnetic interference.
