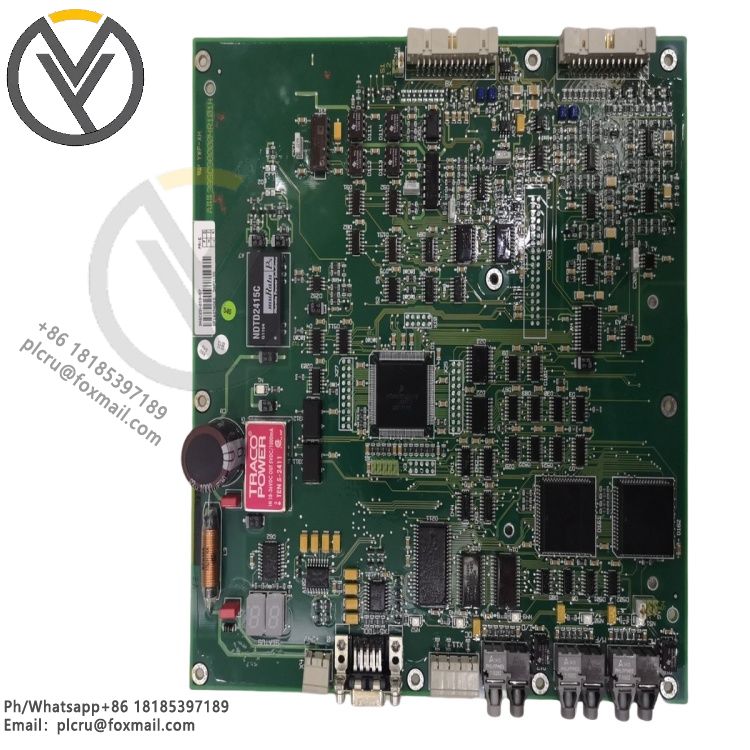

Product Model: 3ASC25H203 DAPC100.

Brand: ABB

Module type: Analog input module, used for collecting analog signals such as voltage, current, thermocouple, thermal resistance, temperature and other values.

Generally, ABB's analog input modules have the following common features:

Input range: It can be configured with different voltage or current input ranges, such as 0-20mA, 4-20mA, 0-5V, 0-10V, etc., to adapt to the output of different types of sensors.

Accuracy: It features high measurement accuracy and can accurately convert analog signals into digital signals for processing by the control system.

Isolation function: There is usually electrical isolation between the input channel and the system power supply as well as other modules to enhance the system's anti-interference ability and safety.

Diagnostic function: It has self-diagnostic capability, can detect faults of the module itself, and send fault information to the control system through indicator lights or communication interfaces.
