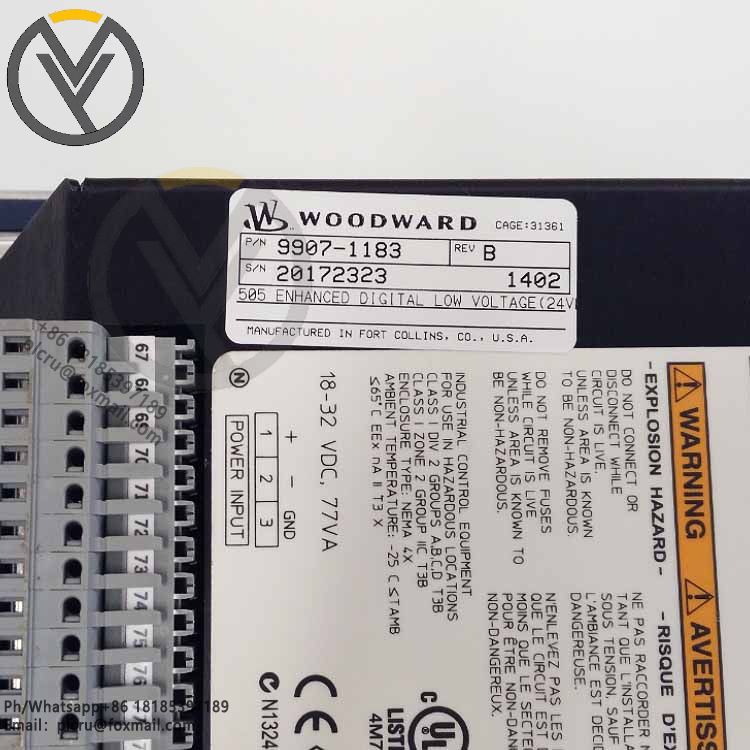

Woodward 9907-1183 505 Turbine Controller HMI
Delivery time 3 days
Product origin New/used
Email plcru@foxmail.com
Mobile/wechat /WhatsApp +86 18185397189
The following is the data table information of Woodward 9907-1183 505 Turbine Co
The following is the data table information of Woodward 9907-1183 505 Turbine Controller HMI:
General information
Manufacturer: Woodward
Product Model: 9907-1183
Product series: 505e turbine control
Product type: Turbine Control Governor
Country of origin: The United States
Technical Specification
Communication serial ports: 2 Modbus (ASCII or RTU) communication ports
External dimensions: 14 inches long ×11 inches high ×4 inches deep (356×279×102mm)
Power supply: 18-32 VDC
Recommended ambient temperature: -25℃ to + 65℃
Weight: approximately 2000g or 9.11 lbs
Safety certifications: CE, UL, etc
Functional characteristics
Password protection: Password protection is provided for the program to ensure the security and stability of the system and prevent unauthorized access and operation.
Zero-speed detection: It can precisely detect the zero-speed state of the turbine, which is conducive to achieving accurate start-up, shutdown and protection functions.
PID control: It features a PID structure and can be used to precisely monitor and control parameters such as turbine speed, load, inlet pressure, exhaust pipe pressure, or suction/intake pipe pressure.
Multiple control modes: It can be configured to operate as an independent device or work in coordination with the distributed control system (DCS) of industrial plants, suitable for various industrial application scenarios.

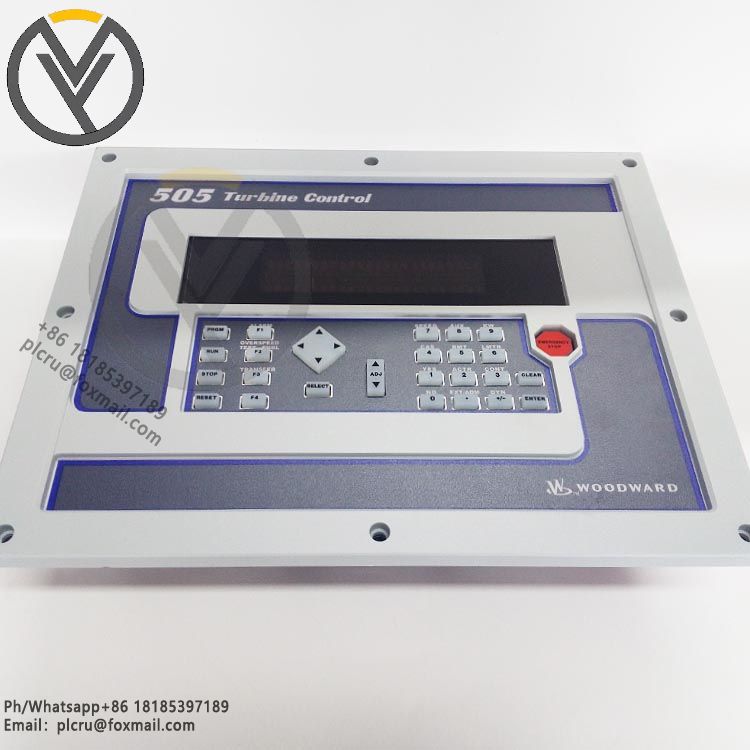

Advanced Human-machine interface: It provides an intuitive human-machine interface (HMI) with clear and comprehensive information display, supports multiple languages, and is convenient for operators to monitor and control.
