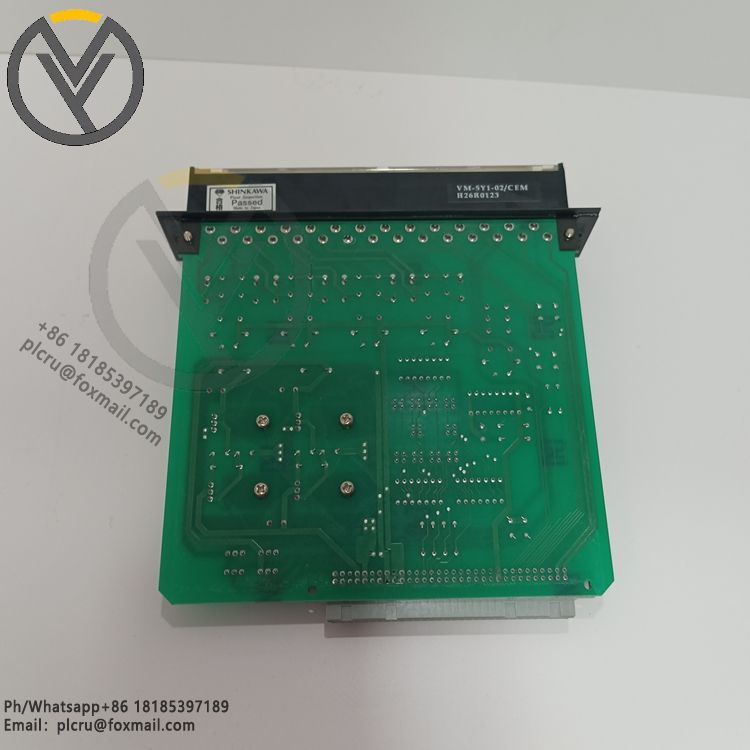

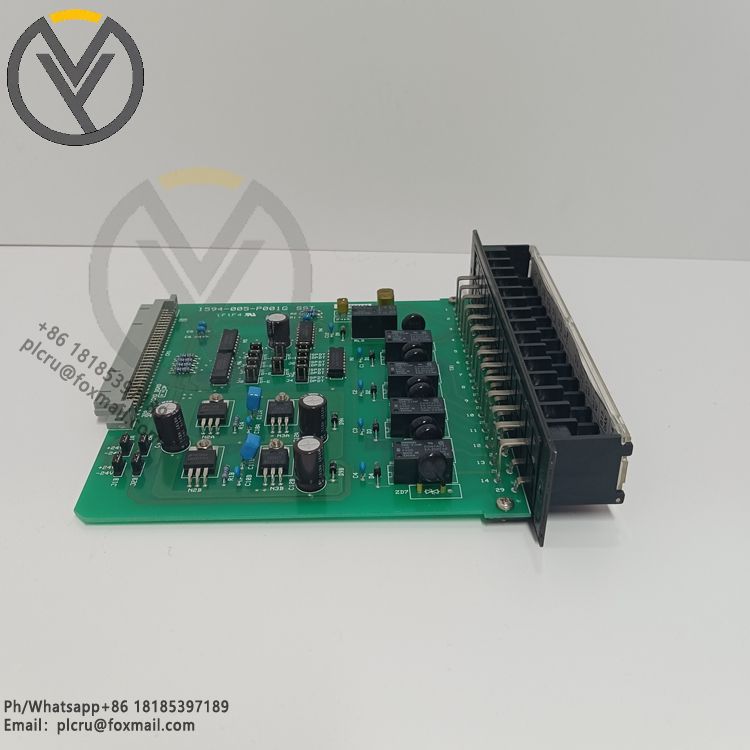

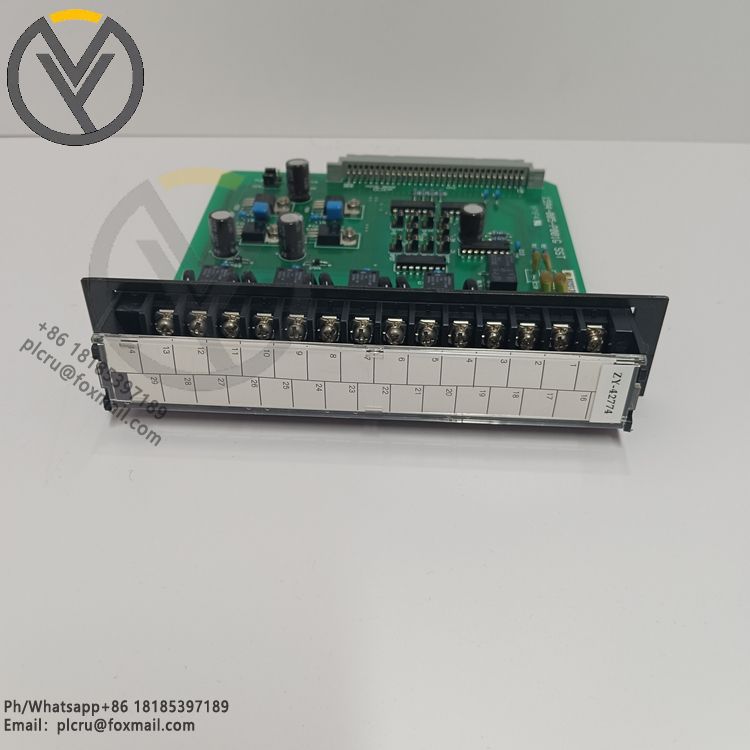

SHINKAWA VM-5Y1-02GEM 1594-005-P001F Relay module

Basic functions: Relay modules can usually transmit signals, amplify currents, control circuits, etc. in circuits. It can control a large current with a small current, achieve on-off control of the circuit, and thereby control the operation or stop of electrical appliances. It can be used to realize remote control or automatic control.

Working principle: It usually contains an electromagnetic coil inside. When current passes through the coil, an electromagnetic field is generated, attracting the core to move and thereby changing the contact state. Relays usually have normally open (NO) and normally closed (NC) contacts. The normally open contact opens when the relay is not energized and closes when it is energized. The normally closed contact is the opposite.

Electrical characteristics: Relay modules typically have a specific operating voltage range, commonly including 5V, 12V, 24V, etc. This SHINKAWA module may also support similar voltage specifications to adapt to different control circuits. Its contacts can usually withstand certain currents and voltages and are used to connect load circuits, possibly having a load capacity of around 250V/10A AC or 30V/10A DC.

Application scenarios: SHINKAWA's products are often used in precision equipment such as semiconductor manufacturing. This relay module may also be applied in related fields to control the on-off of circuits in equipment, such as controlling the start and stop of motors, the operation of solenoid valves, or the power supply of other components, and may also be used in chip packaging and testing equipment to ensure the precise operation of the equipment.
