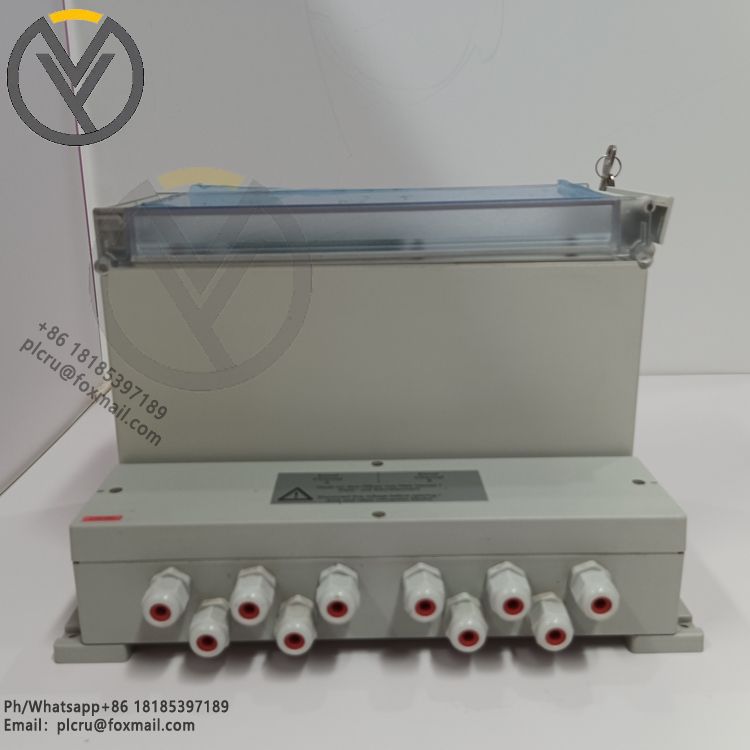

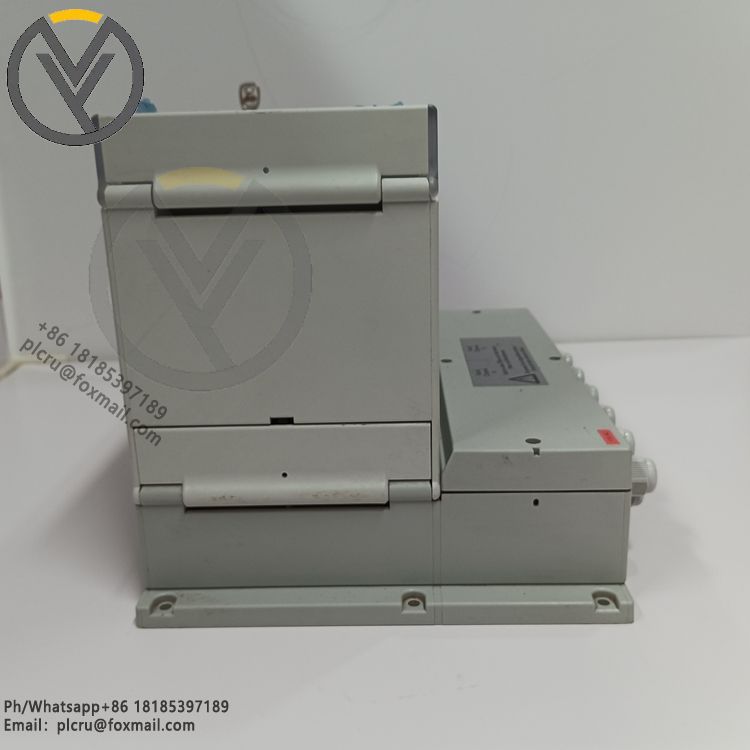

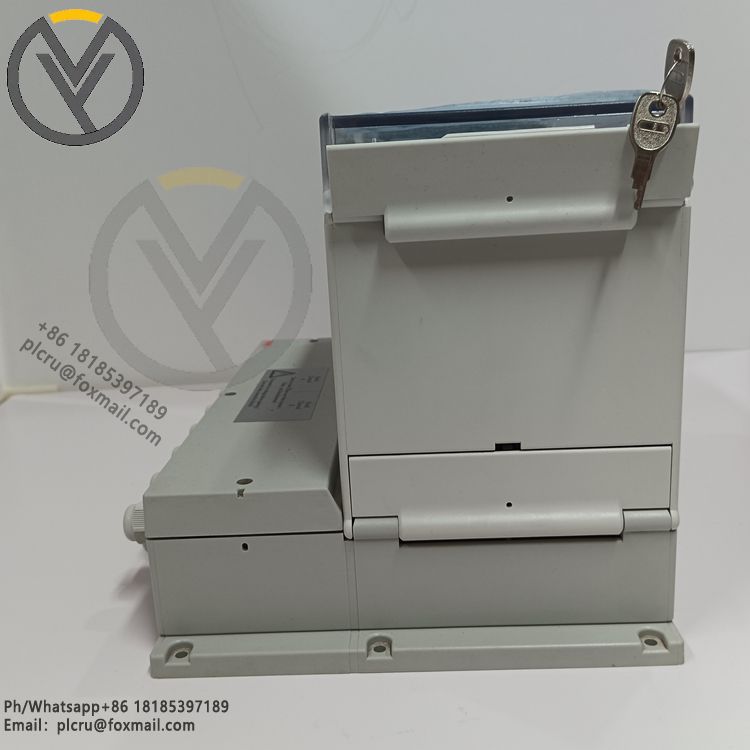

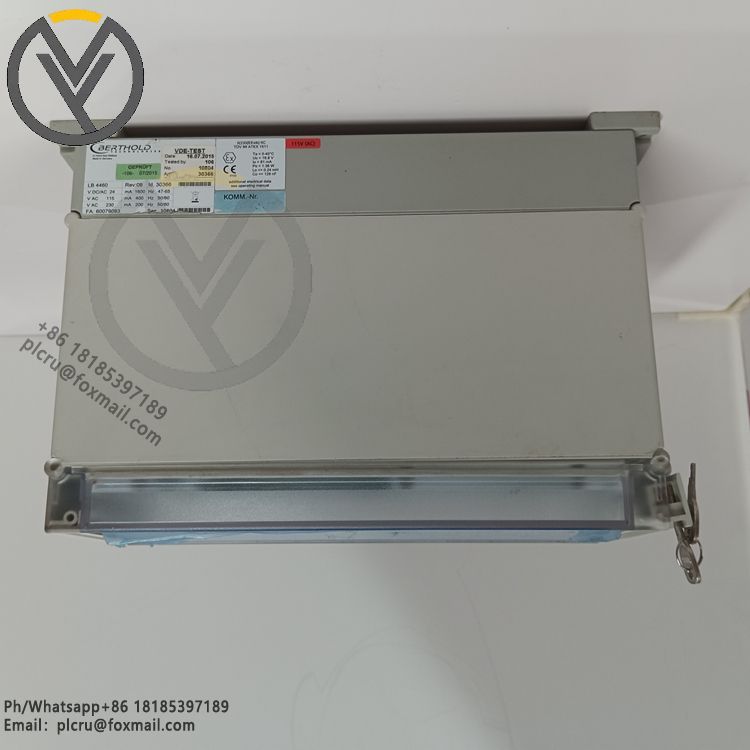

BERTHOLD LB4460 Level Gauge Chassis

BERTHOLD LB4460 level gauge chassis is an important part of BERTHOLD LB4460 level gauge. Here is an introduction to it:

Function

Support and fixation: As the basic component of the level gauge, it is mainly used to support the main structure of the level gauge to ensure that the level gauge remains stable at the installation position. At the same time, the level gauge is fixed at a specific measurement point, such as a tank, pipeline, etc., to prevent it from being displaced due to external forces or vibrations, and to ensure the accuracy and stability of the measurement.

Connection and sealing: Responsible for connecting with the measured container or pipeline to form a sealed measurement environment to prevent leakage of the measured medium. At the same time, it provides connection interfaces for the sensors and electronic components of the level gauge to ensure that the electrical connection and signal transmission between the components are stable and reliable.

Protection and protection: It protects the internal components of the level gauge to prevent them from being affected by external environmental factors, such as dust, moisture, corrosive substances, etc., to extend the service life of the level gauge, and can also play a protective role to a certain extent, reducing damage to the level gauge caused by collisions and impacts.

Structural design

Material selection: Corrosion-resistant and high-strength metal materials such as stainless steel are usually used to adapt to different industrial environments and the characteristics of the measured medium, to ensure that the chassis will not be damaged by corrosion during long-term use, and to ensure the normal operation of the level meter.

Shape and size: Designed according to factors such as the type of level meter, measurement range, and installation method. Generally, it is round or square. The size must match the overall size of the level meter. At the same time, it must meet the requirements of the installation space and be easy to install on different equipment.

Mounting holes and connecting parts: There are mounting holes on the chassis for fixing the level meter to the installation position through bolts, nuts and other connectors. The design of the connecting parts must ensure the firmness and sealing of the connection. Common connection methods include flange connection and threaded connection, which can be selected according to actual needs.
