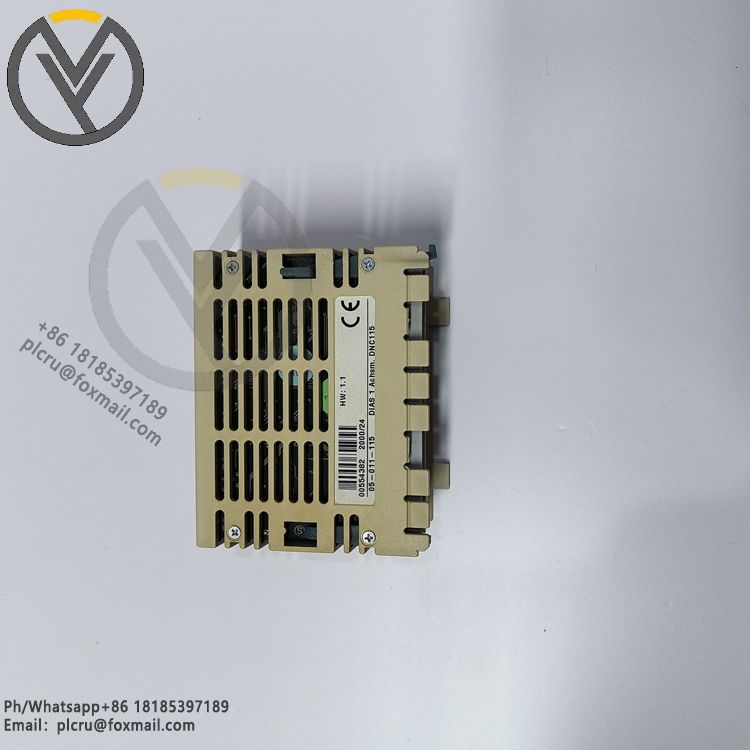

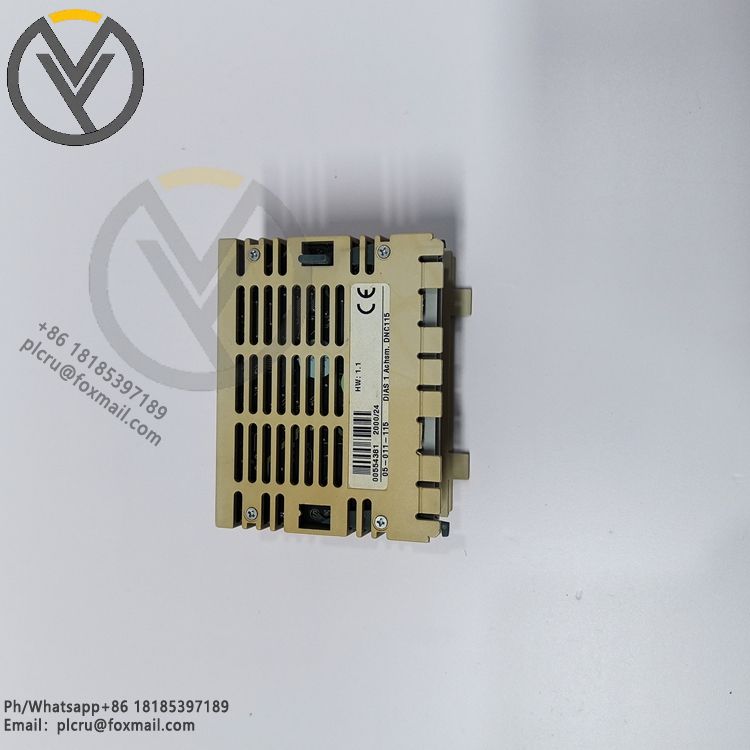

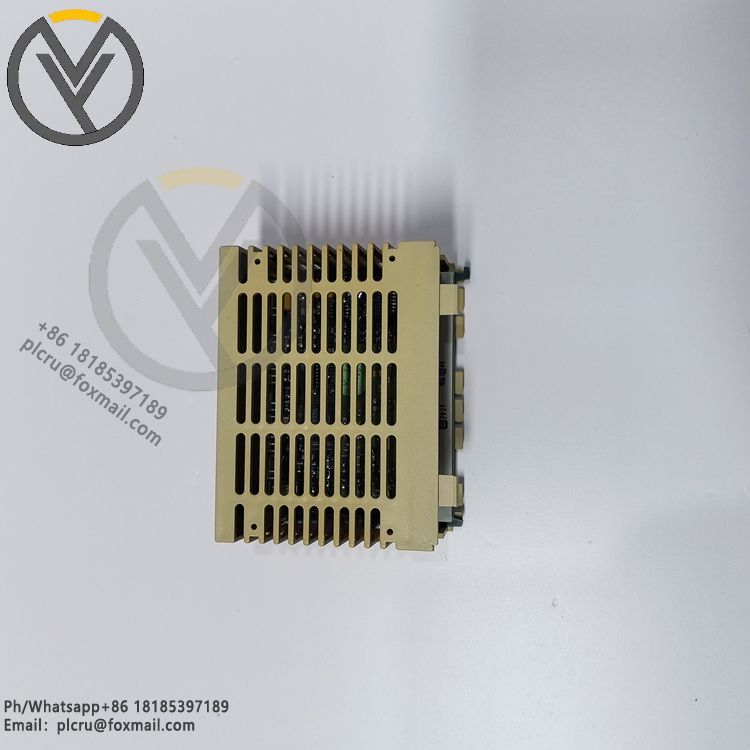

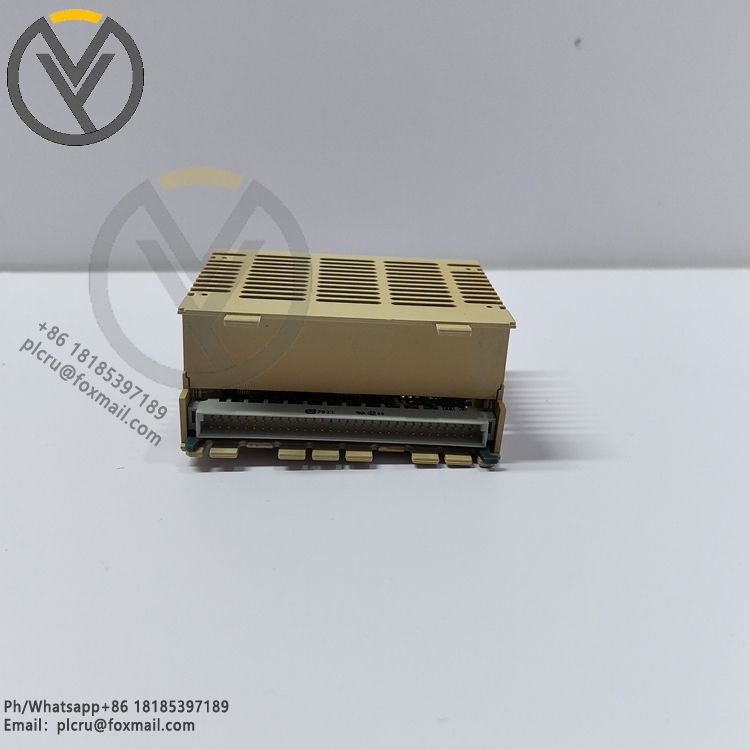

DNC115 Sigmatek Positioning Module
The Sigmatek DNC115 positioning module is designed for one - axis positioning control. Here are its possible features and applications:
- Features
- High - precision positioning: It can achieve precise one - axis positioning control, with resolver input for positioning feedback (12 - bit resolution), which can provide accurate position information and ensure the positioning accuracy of the controlled object.
- Motor drive support: It supports brushless motor drivers and is equipped with a 4 - quadrant regulator. The maximum continuous current is 6A, and the maximum peak current (for 10 seconds) can reach 15A, which can provide sufficient driving force for the motor and meet the power requirements of different motion control applications.
- Programmable and configurable: Based on Sigmatek's LASAL software platform, it can be flexibly programmed and configured. Users can set parameters such as positioning points, movement speeds, and acceleration/deceleration ramps according to specific application requirements to achieve customized motion control.
- Good compatibility: It can be seamlessly integrated with other devices in the Sigmatek automation system through the DIAS field - bus. At the same time, with the support of software and hardware, it can communicate with other bus systems such as Ethernet, serial port, Profibus, and CAN, which is convenient for building a complex automation network.
- Applications
- Industrial automation production lines: It is used for the precise positioning of conveyor belts, robotic arms, and other equipment, such as the precise positioning of materials in the assembly process and the accurate grasping and placement of parts by robotic arms.
- Machine tools and CNC machining: It is applied to the axis motion control of machine tools, such as the X - axis, Y - axis, or Z - axis positioning in milling machines, lathes, etc., to ensure the accuracy of machining and improve the quality of machined parts.
- Packaging and printing industry: In packaging machinery, it is used for the positioning control of packaging materials, such as the precise positioning of cartons and labels; in the printing industry, it is used for the positioning of the printing head and paper to ensure the accuracy of printing.
Logistics and warehousing: It is used in the positioning control of stacker cranes and conveyor belts in warehouses, realizing the accurate storage and retrieval of goods, improving the efficiency and accuracy of logistics operations.
