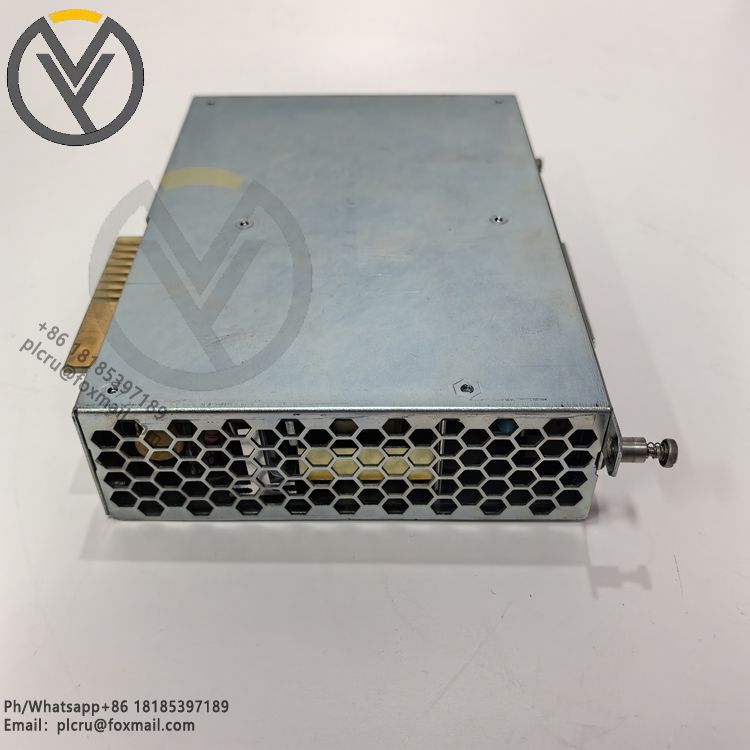

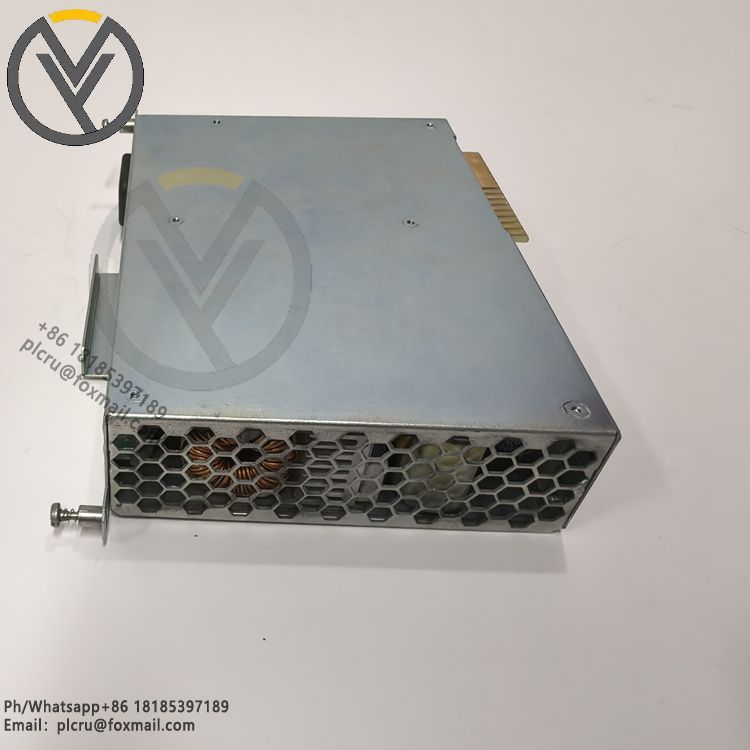

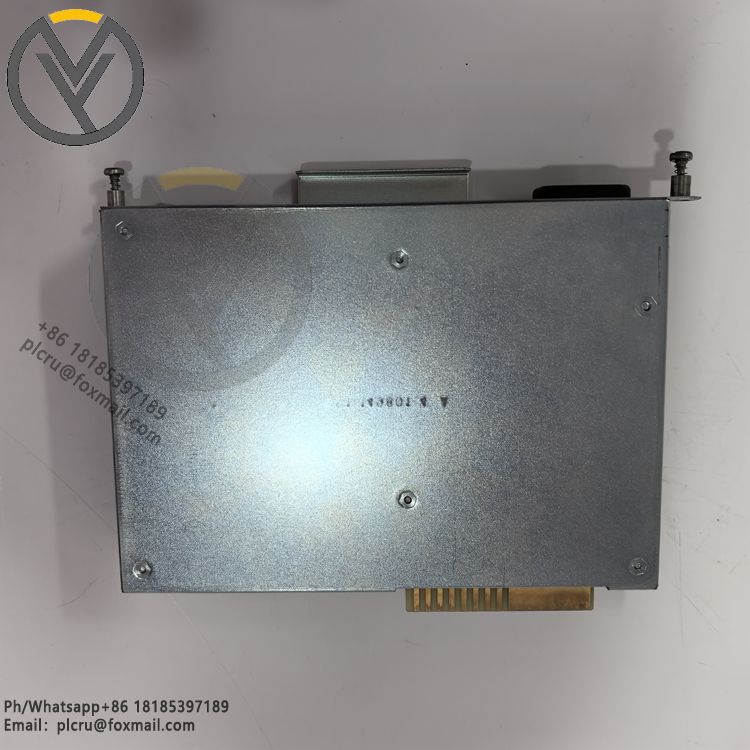

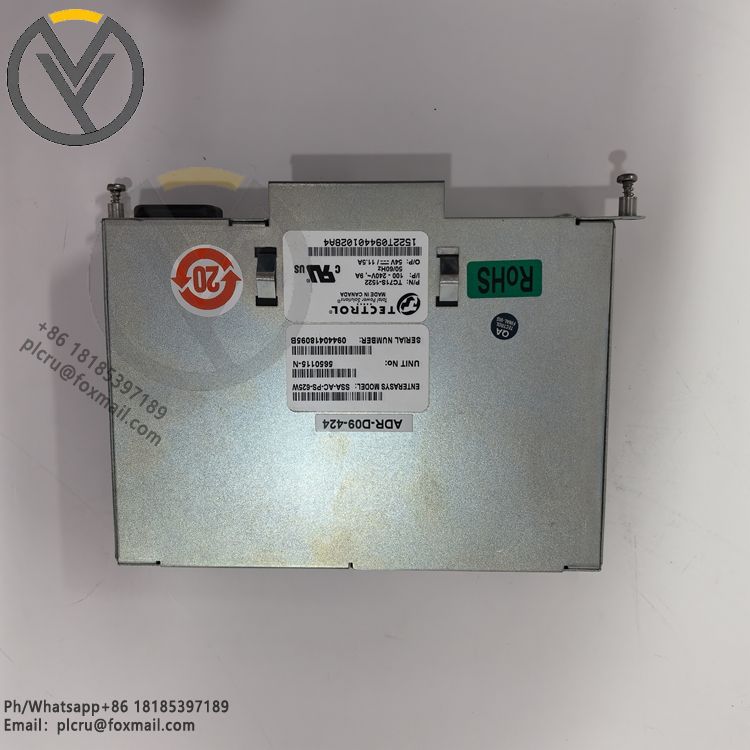

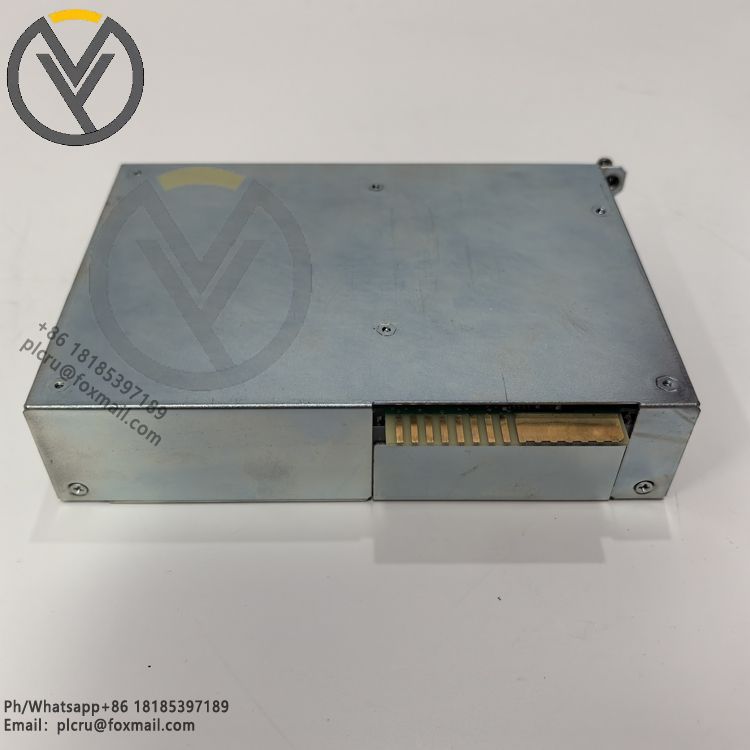

Extreme SSA-AC-PS-625W Power Supply Enterasys Module

Extreme SSA - AC - PS - 625W is an AC power supply module for Enterasys related equipment. The following is a detailed introduction:

Electrical specifications

Input voltage: 100 - 240V AC, supports wide voltage input, can adapt to the grid voltage in different regions, and has good compatibility and adaptability.

Input frequency: 50 to 60Hz, can work stably under common AC power frequency.

Output power: 625W, can provide sufficient power supply for the equipment to meet the power requirements of multiple components in the system running simultaneously.

Output voltage: 24V DC, provides a stable DC voltage for the connected equipment to ensure that the equipment can work normally under the specified voltage.

Output current: 10A, can meet the current requirements of the load equipment, and ensure the stability and reliability of power transmission.

Physical characteristics

Size: 127mm×76mm×43mm, compact size, easy to install in various equipment cabinets or limited space environments.

Weight: about 1.22 kg, light weight, will not bring too much burden to the installation location.

Working environment

Working temperature range: 5°C to 40°C (39°F to 104°F). Within this temperature range, the power module can maintain stable performance and ensure the normal operation of the equipment.

Storage temperature range: -30°C to 73°C (-22°F to 164°F). Even in the non-working state, it can be stored in a wide temperature range without damage due to excessively high or low temperatures.

Relative humidity: 5% to 95% in both working and non-working states, no condensation, with good moisture-proof performance, and can work stably in different humidity environments.

Protection function: With short circuit, overload and overvoltage protection functions, it can effectively prevent equipment damage caused by circuit failure, and improve the safety and stability of the system.
