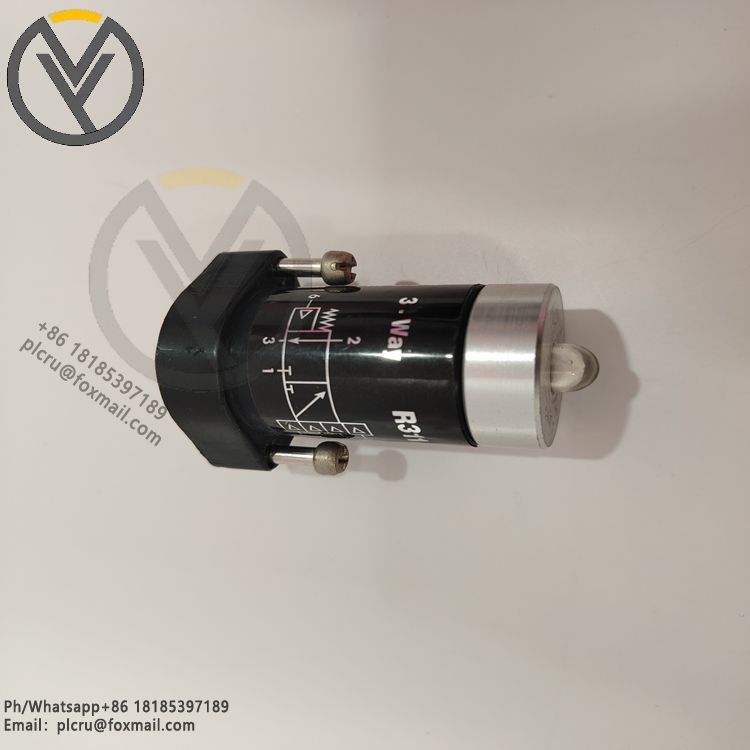

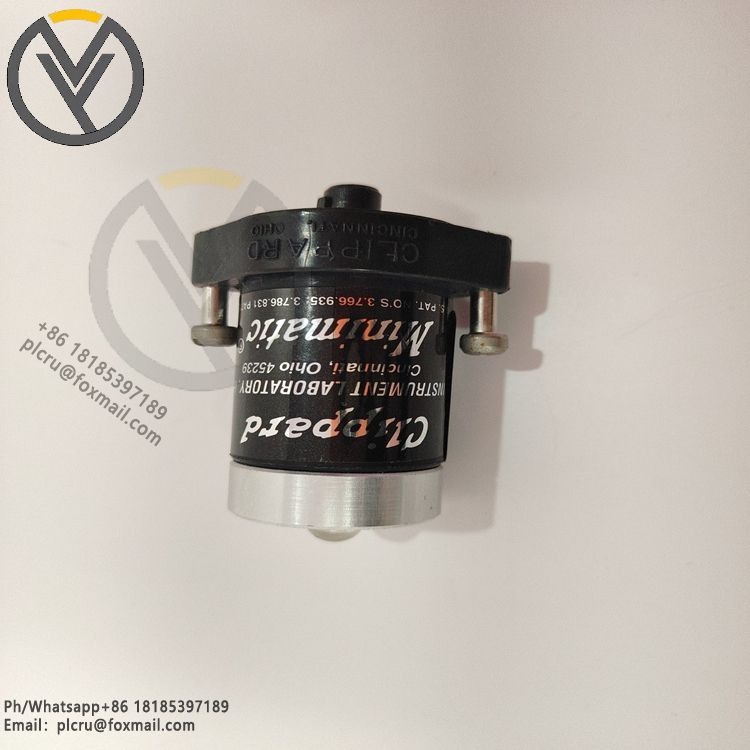

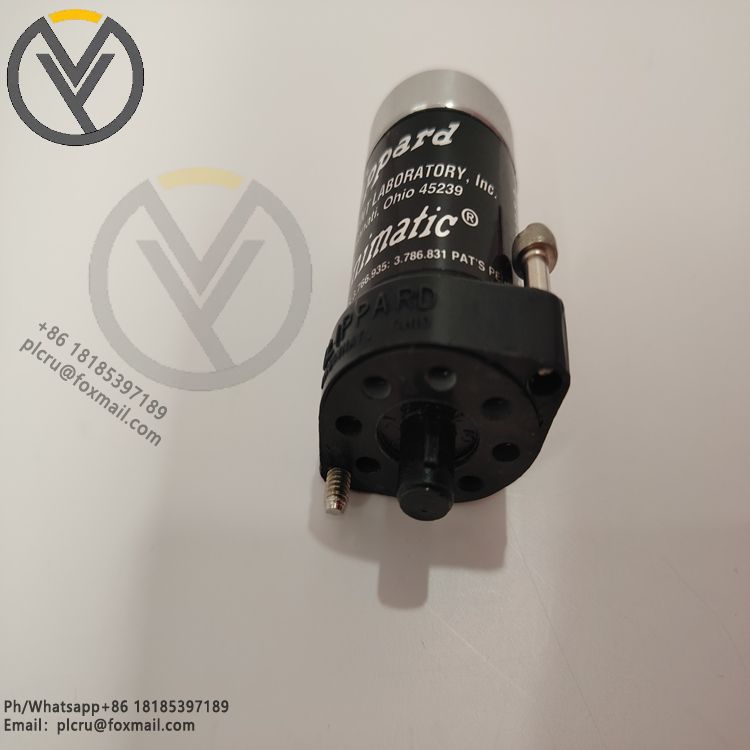

CLIPPARD R311 3-way multi-way pilot spring return valve

CLIPPARD R311 3-way multi-way pilot spring return valve is a pneumatic valve with multiple features and uses. Here is some information about it:

Product Overview: CLIPPARD's Minimatic® modular valves are characterized by versatility. R311 is a 3-way multi-way pilot spring return valve that provides a variety of directional control, low pressure and special control functions. Each valve is packaged in a valve body designed to be installed and connected with a simple piping system. It is a "plug and play" device in pneumatic applications.

Technical Specifications

Flow: 250l/min air flow at 100psig pressure.

Maximum pressure: 150psig.

Temperature range: 32°F to 180°F.

Weight: Approximately 0.32kg.

Minimum pilot pressure: 40psig.

Working Principle: R311 is a 3-way, spring return, full-bore valve with four pilot ports. Any of the four pilot ports can drive the valve, and driving multiple pilot ports will not produce additional effects. The valve will reset under the action of the spring only when there is no signal from the four pilot ports.

Application scenarios: This valve can be widely used in industrial fields that require precise pneumatic control, such as pneumatic actuator control in automated production lines, pneumatic joint drive of robots, start and stop control of pneumatic tools, etc. In some occasions with high space requirements, its compact design can also meet installation requirements well.
