Honeywell C7012F1052Full PN:C7012F1052/UProduct Name: Purple‑Peeper UV Ultraviol
Honeywell C7012F1052

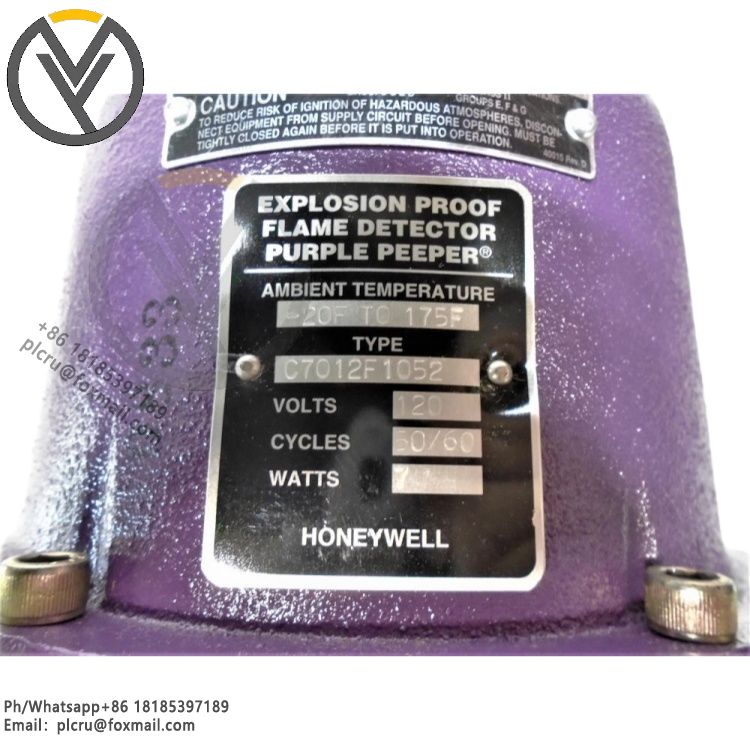

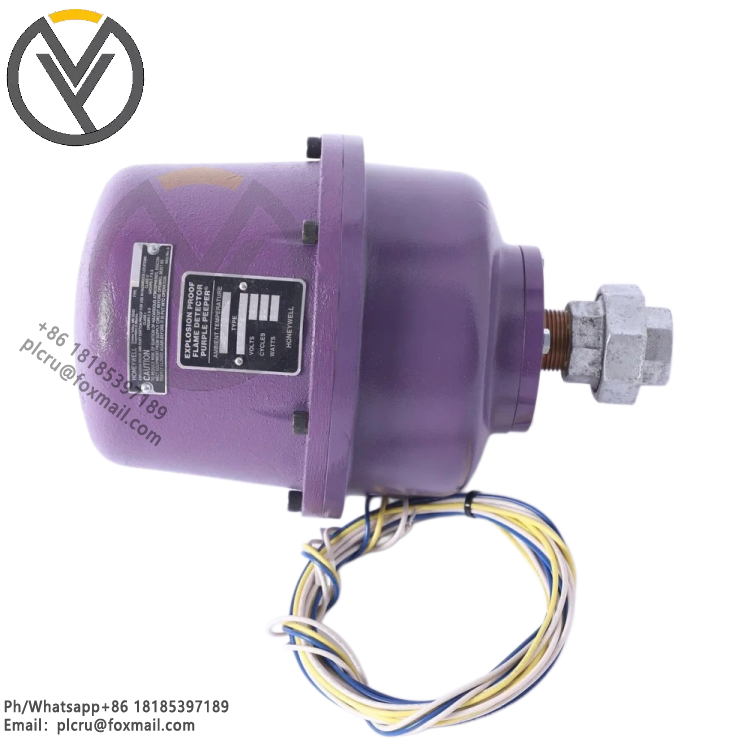

Full PN:C7012F1052/U Product Name: Purple‑Peeper UV Ultraviolet Flame Detector, Dynamic Self‑Checking, Explosion‑Proof
General Description
C7012F1052 is a solid‑state explosion‑proof ultraviolet flame sensor. It captures UV radiation emitted from burning natural gas, fuel oil, coal and hydrocarbon fuels. Built‑in motor‑driven shutter for continuous dynamic self‑test, verifies sensor health automatically without manual inspection. Designed for hazardous area burner flame supervision, works together with Honeywell dedicated flame amplifier in burner management system for industrial boilers, process heaters and furnacesHoneywell。
Core Technical Data
Detection principle:Ultraviolet (UV) Supply voltage:120 VAC,50/60 Hz Power consumption:7 W Mount thread:1 inch NPT Window pressure rating:100 psi (690 kPa) Operating ambient temperature:-29℃ ~ +79℃ Housing material:Cast aluminum,Explosion‑proof,NEMA7 Certifications:UL Class I Div 1 Grp C,D;Class II Grp E,F,G hazardous location approved,FM approved Cable:2438 mm(96 inch),6 color‑coded flying leads,NEC Class1 Installation:Any mounting angle,horizontal,vertical or tilted Overall dimensions:Diameter 203 mm × Length 305 mm Net weight:Approx 6.6 kg Required matched amplifier:R7247C,R7847C dynamic self‑check flame amplifier Parallel connection:Max two detectors can be wired in parallel for difficult sighting applicationsmaxon.su
Lifecycle Status
Obsolete / Discontinued by Honeywell original manufacturer. No new original factory production. Supply channels are surplus new old stock,used spare parts or aftermarket sources,long uncertain lead‑time。
Typical Application
Oil & gas plant,refinery,chemical plant,power station boiler,heating furnace,process burner safety monitoring
