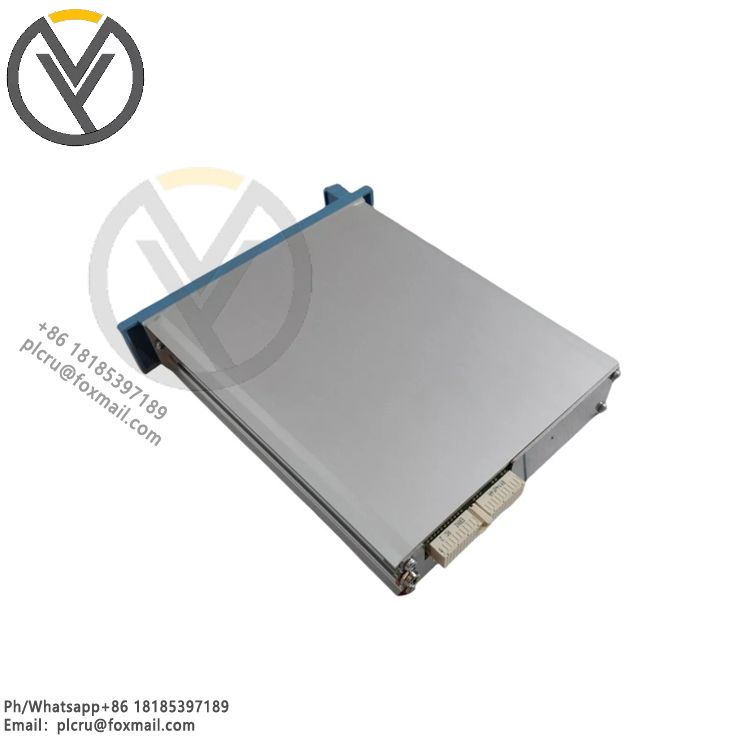

FX-USI-0002 is the Universal Safety Interface Module (USI) for Honeywell's Safety Manager (SM) system, often modeled as FC-USI-0002. It is used to isolate the safety controller from external systems, enable encrypted communication, and manage I/O. It is a core component of SIL 3 safety systems.

I. Basic Information and Positioning

Model: FX-USI-0002 (Replaces the old FE-USI-0002, discontinued in 2019)

Full Name: Universal Safety Interface Module

Manufacturer: Honeywell

Applicable Systems: Safety Manager (R140.1 and above), Experion PKS DCS

Functional Positioning: Safety logic execution, I/O processing, encrypted communication, system diagnostics and redundancy management

II. Core Hardware Specifications

Processor: Motorola 8260 communication processor

Memory: 8 MB Flash (firmware storage), 8 MB SRAM (with ECC error correction), 256 KB shared RAM (interacts with the control processor)

Power Supply: 5 VDC ±5%, maximum 1.2 A; supports redundant power supply

Dimensions/Weight: 212 × 176 × 35.2 mm, approx. 0.7 kg

Installation: Controller chassis slot, supports hot-swapping

III. Communication and Interfaces

Ethernet: Dual-speed 10/100 Mbps, RJ45 interface, supports redundant and encrypted communication

Serial Port: 2 universal serial ports (RS-232/422/485), 10-pin AMP interface

Protocol Support: Modbus TCP/IP, OPC UA, Honeywell proprietary security protocol

Hardware Firewall: Isolates secure and insecure domains to prevent external intrusion

IV. Security and Reliability

Security Level: SIL 3 (IEC 61508), TÜV certified

Redundancy Design: Supports 1:1 redundancy, seamless switching, automatic fault diagnosis and isolation

Environmental Parameters:

Operating Temperature: −5 °C ~ +70 °C

Storage Temperature: −40 °C ~ +85 °C

Humidity: 10%–95% RH (non-condensing)

Certifications: CE, UL, CSA, IEC Ex

V. Part Number Analysis

FX: New generation Safety Manager module (replaces FE series)

USI: Universal Safety Interface

0002: Hardware version 2 (V1.0 is a common revision)

VI. Typical Applications

Safety Interlock (SIS): Emergency Stop (ESD), Fire/Gas Protection (F&G), Burner Management (BMS)

DCS Integration: Safety data exchange between Experion PKS and Safety Manager

Long-Distance Communication: Safety signal transmission in high-noise industrial environments, supporting fiber optic extension

VII. Procurement and Selection Considerations

System Compatibility: Only for Honeywell Safety Manager, not for other brands of SIS/DCS

Redundancy Configuration: Critical applications require paired redundant modules, paired with the FC-IOCHAS-0003R chassis

Firmware Version: Must match the system software version (R140.1+), supporting online upgrades

Substitution: The older FE-USI-0002 is discontinued; new purchases should directly use FX-USI-0002.
