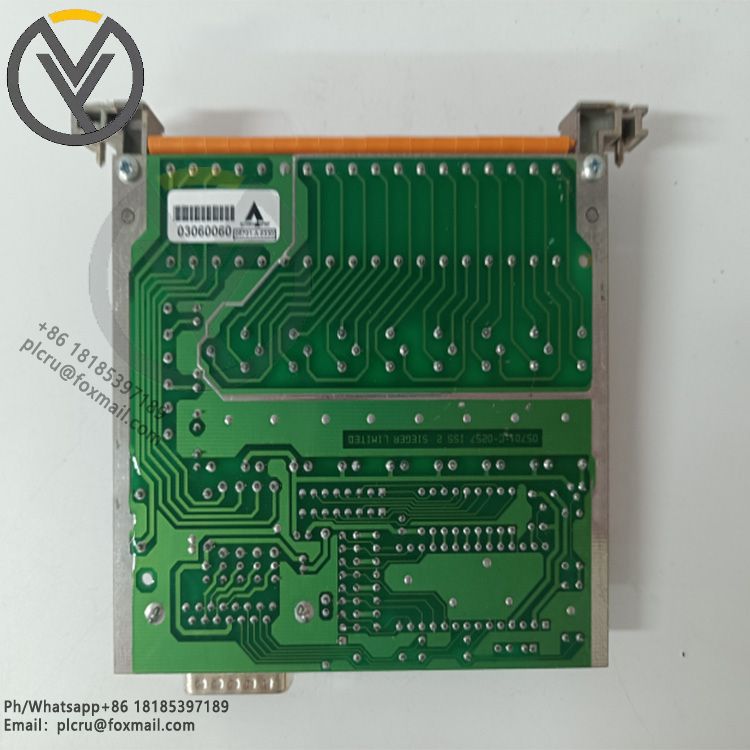

05701-A-0325 | Honeywell | DC Input Card
Delivery time 3 days
Product origin New/used
Email plcru@foxmail.com
Mobile/wechat /WhatsApp +86 18185397189
The following is the relevant information of Honeywell 05701-A-0325 DC Input Car
The following is the relevant information of Honeywell 05701-A-0325 DC Input Card:
Overview: It is a DC input card specially designed for Honeywell DCS systems, used to collect DC voltage signals from various sensors and convert them into standard digital signals for processing and display by the DCS system.
It is widely applied in industrial process control, data acquisition and other fields.
Main parameters:
Input channels: There are usually 8 or 16 digital input channels.
Input type: DC voltage.
Range: There are multiple ranges to choose from, such as 0-20mA, 4-20mA, 0-10VDC, 0-5VDC, etc.
Resolution: 12 bits or 16 bits.
Sampling rate: Configurable.
Input impedance: 250Ω for current input and 1MΩ for voltage input.
Operating temperature: 0℃ - 55℃.
Power supply: It is usually 24VDC, and some materials also mention that it can support 125VDC, etc.
Dimensions: 45mm x 120mm x 120mm.
Weight: 250g.
Functional features:
High precision: High-precision ADC is adopted to ensure the accuracy of measurement data.
High reliability: Utilizing industrial-grade components, it can adapt to harsh industrial environments.
Modular design: Easy to install and maintain.
Multiple ranges: Supports multiple ranges to meet different measurement requirements.
Isolation design: The input channel and output channel are isolated to enhance the security of the system.
Other features: This card is directly connected to the engineering card, providing power connection points for the entire rack. The on-site wiring of the engineering card module is also on this card.
It has reverse polarity and short-circuit protection functions, as well as multi-power input capabilities.
In addition, it is compatible with Honeywell Systems' 57 gas detection controller and can be used in conjunction with a variety of Honeywell gas detectors, being applied in various industrial scenarios.
