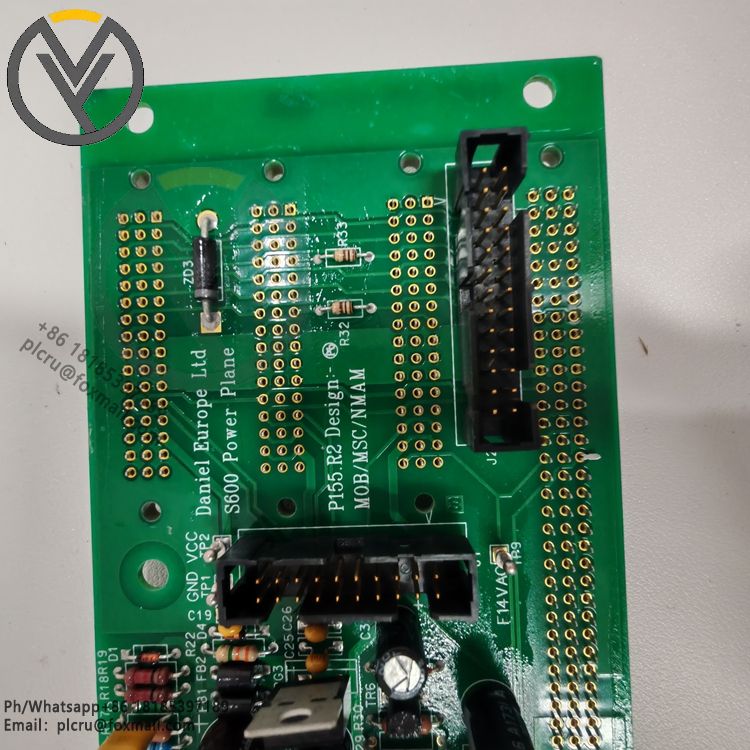

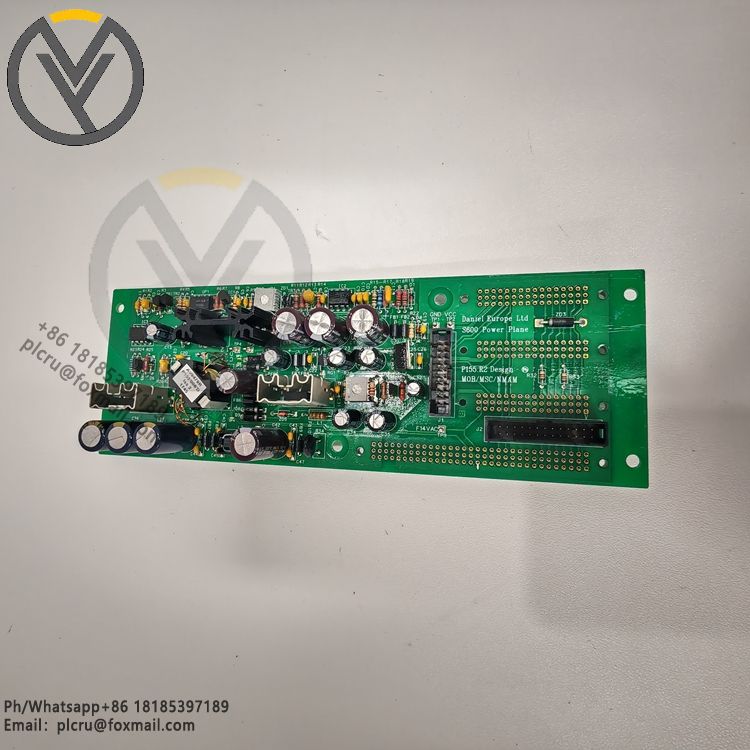

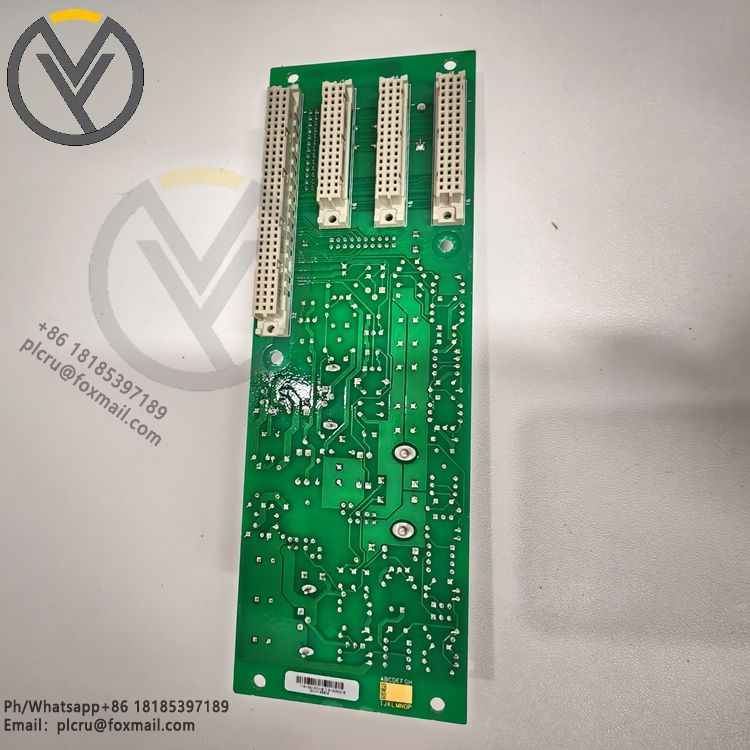

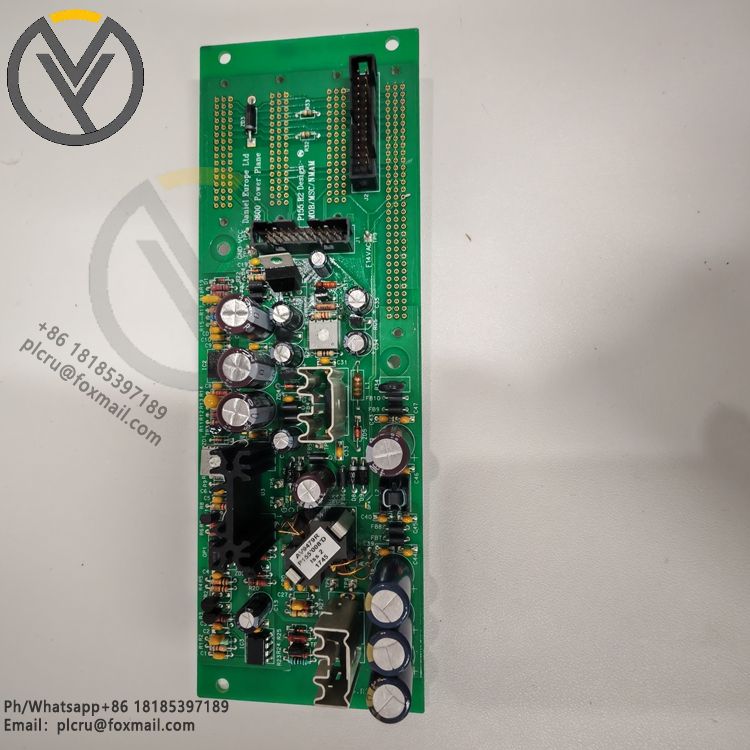

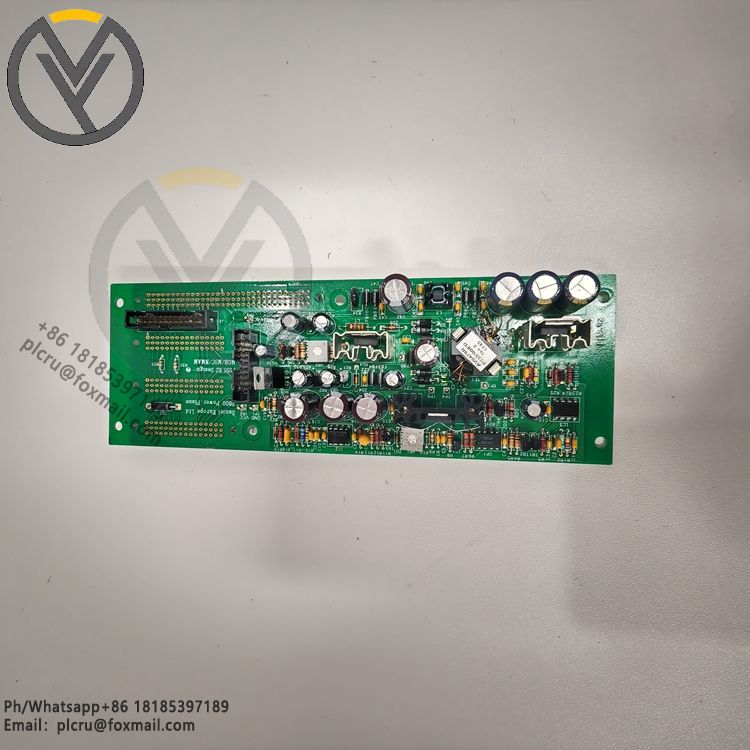

The Emerson P155.R2 Design PCB is the power plane circuit board in the Emerson FloBoss S600 flow computer.

Power plane circuit boards play a critical role in electronic devices. They are typically dedicated copper layers within a printed circuit board (PCB) that provide stable power distribution to the various components on the board. Specifically, the P155.R2 PCB in the Emerson FloBoss S600 flow computer provides a low-impedance power path for each functional module of the S600, ensuring stable operation of the entire system. The power plane also helps reduce electromagnetic interference (EMI) and improve signal integrity by providing a stable return path for current and, in conjunction with the ground plane, effectively shielding and suppressing electromagnetic radiation. Furthermore, the design and layout of the P155.R2 PCB may also take into account factors such as heat dissipation and voltage regulation to ensure reliable operation of the FloBoss S600 in various operating environments.
