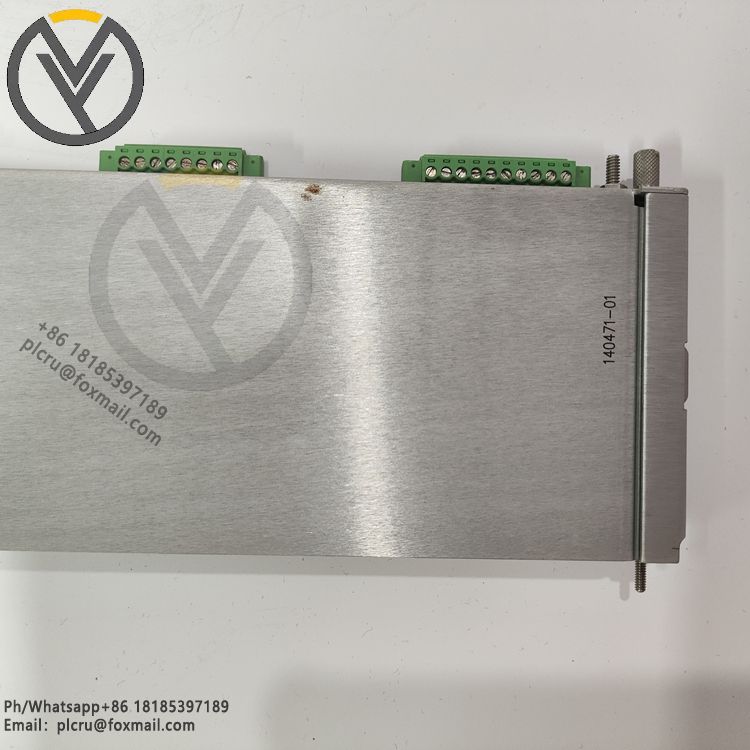

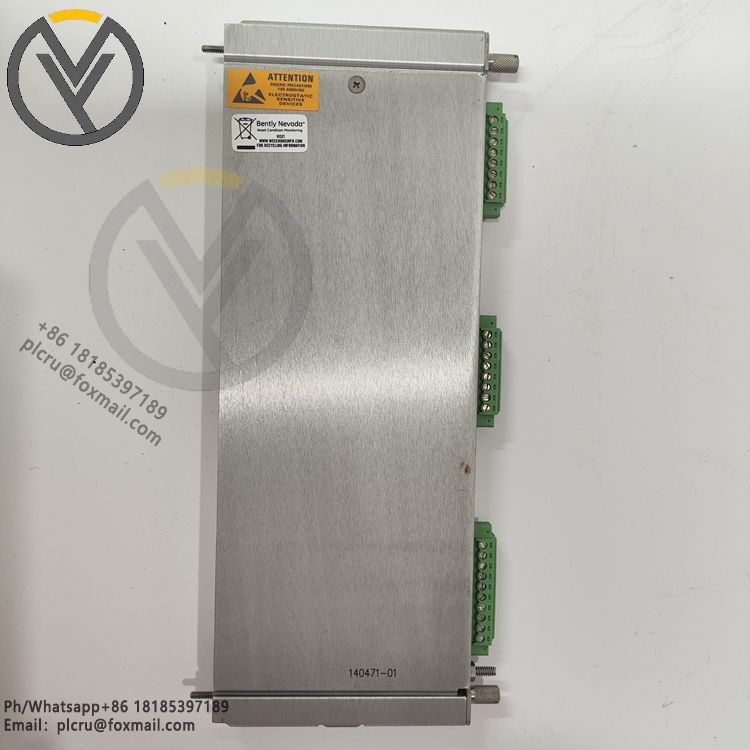

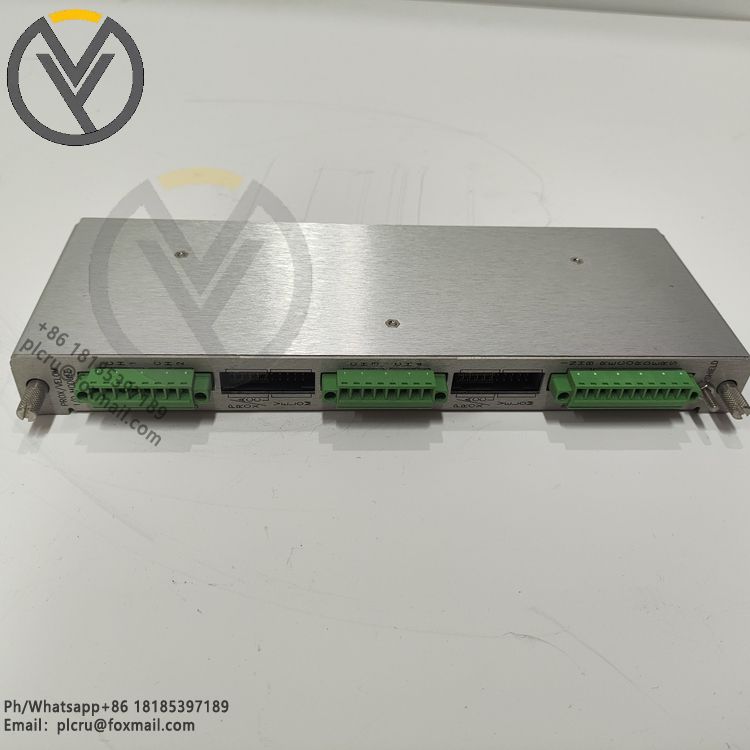

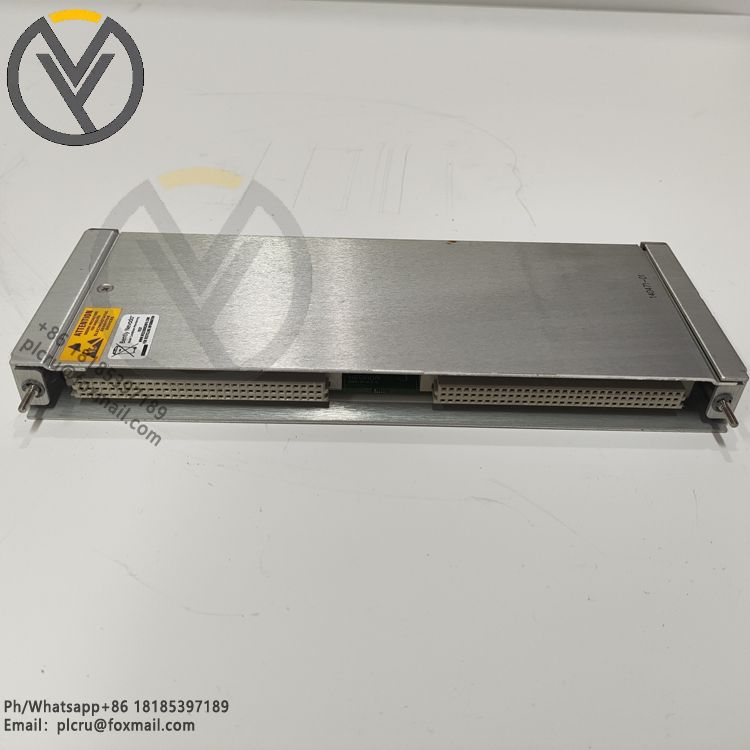

Bently Nevada 140471-01 Series 3500/70 Prox/Velom I/O Module

Bently Nevada 140471-01 is a Prox/Velom I/O module with internal terminals in the 3500 series. It is part of the 3500/42M Proximitor Seismic Monitor and is mainly used for machinery protection and machine information monitoring. The relevant introduction is as follows:

Functional features: The module can receive data from seismic and proximity sensors, and trigger alarms to protect equipment by comparing the observed data with predetermined alarm set points. At the same time, key machine information is shared with maintenance and operating personnel.

Signal processing: The signal can be conditioned to provide vibration and position measurements, and the conditioned signal can be compared with user-programmable alarms. With the configuration software, each channel can be programmed to perform radial vibration, thrust position, differential expansion, eccentricity and other measurement functions.

Status indication: The module has a status indicator, the OK LED is used to indicate that the module is in good working condition; the TX/RX LED is on when the module communicates with other modules in the 3500 rack; the bypass LED indicates whether the module is in bypass mode.
