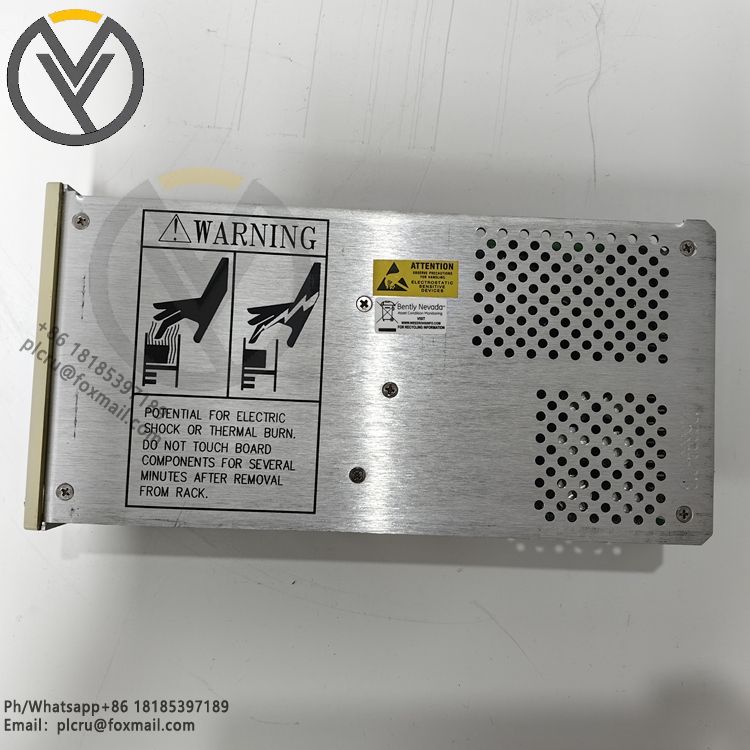

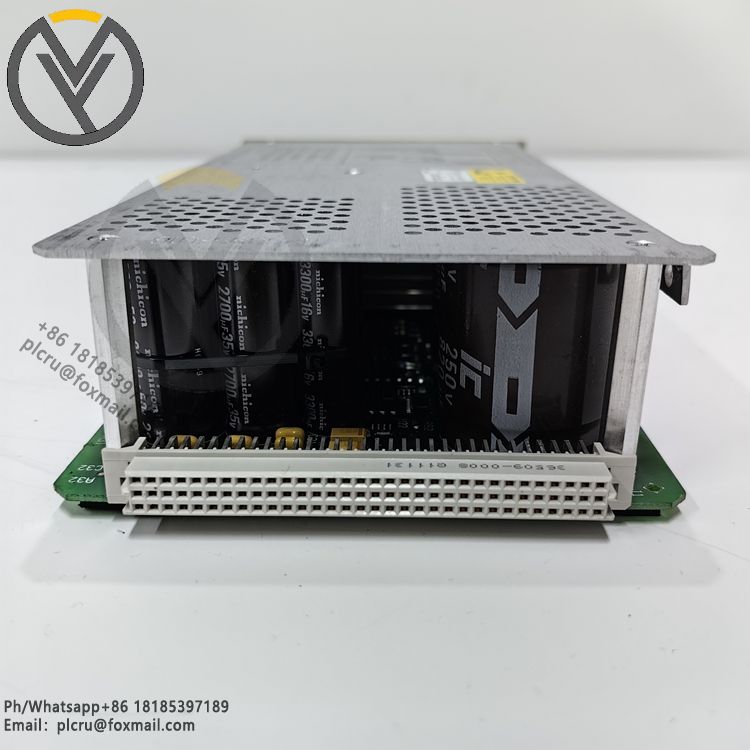

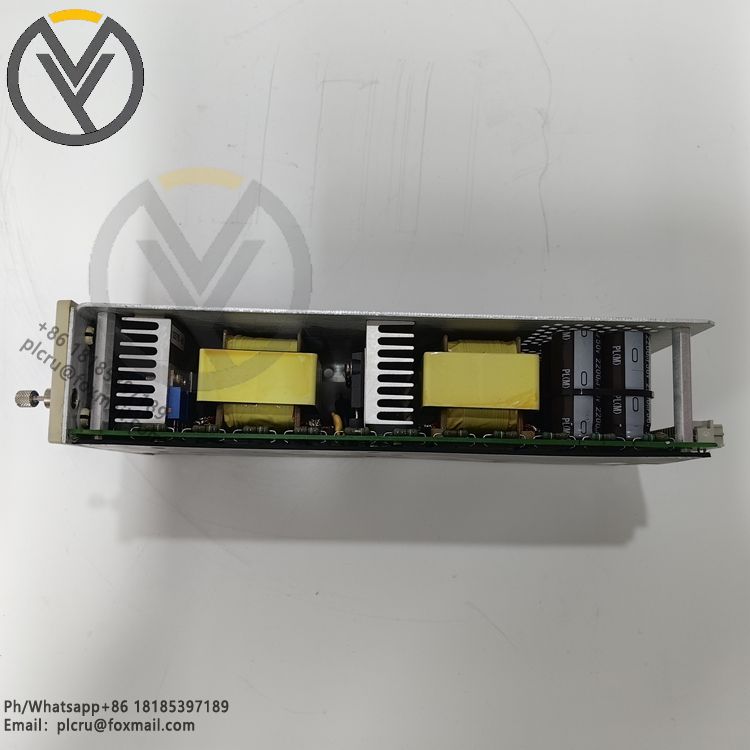

127610-01 | Bently Nevada 3500/15 AC Power Module

Bently Nevada 3500/15 127610-01 is an AC power module designed for the 3500 series mechanical protection system. The relevant introduction is as follows:

Appearance size: The module size is about 100mm×60mm×25mm. It is a half-height module and needs to be installed in the designated slot on the left side of the 3500 system rack.

Electrical parameters: The input voltage range is 90-264VAC, the output voltage is 24VDC, the output current is 2A, and the power consumption is about 12W.

Performance characteristics: It has a wide voltage input characteristic and can adapt to a variety of power supply environments. Supports redundant power supply configuration. If two power supplies are installed in the rack, the lower one is the main power supply and the upper one is the backup power supply. Either power supply can power the entire rack to improve system reliability.

Working environment: The operating temperature range is -30℃ to +65℃, the storage temperature range is -40℃ to +85℃, and the humidity is 95% (non-condensing). It can work stably in relatively harsh industrial environments.

Status Indicator: A "Supply OK" LED indicator is provided to show the working status of the power module, which is convenient for users to monitor and maintain.

Certification: CE, UL and other certifications are passed, and it meets relevant safety standards and performance requirements.
