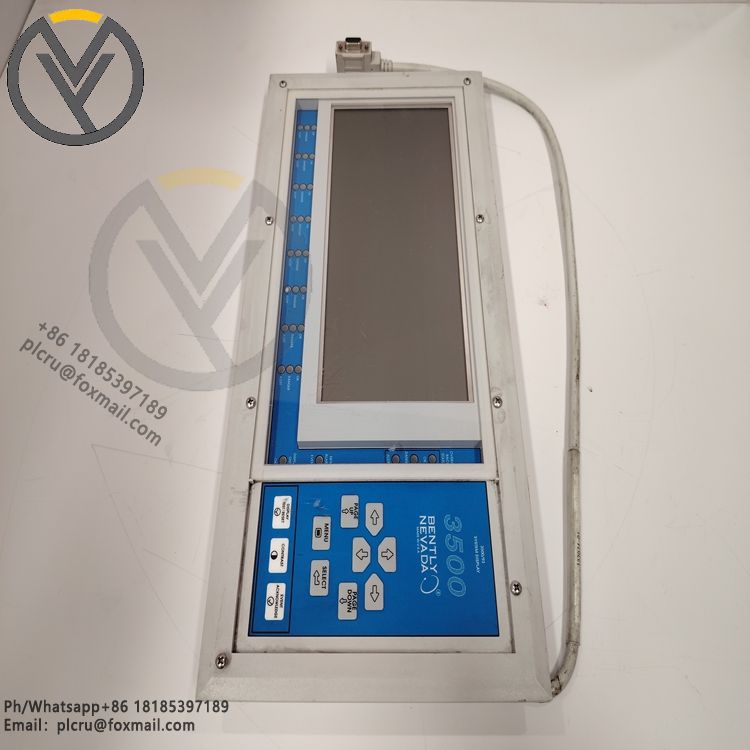

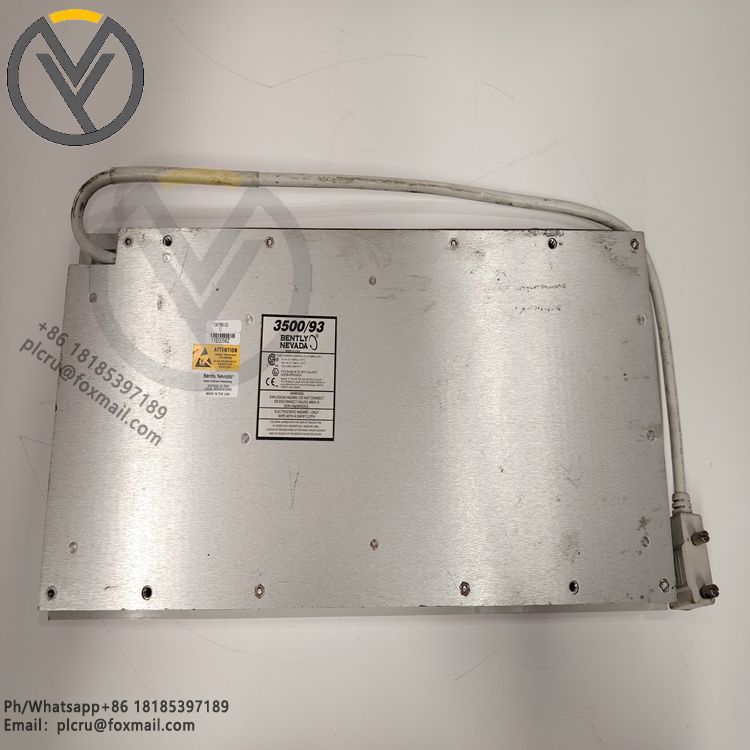

Bently Nevada 3500/93 135785-02 Backlit Display Unit

The Bently Nevada 3500/93 135785-02 backlit display unit is a display interface I/O module in the Bently Nevada 3500 machinery protection system. The relevant introduction is as follows:

Functional characteristics: Provides an intuitive display interface for the 3500 series monitoring system, which can display key monitoring data and alarm information, helping operators to quickly evaluate the operating status and performance of the equipment. Supports real-time data display, which can display real-time measurements, alarms and status information of the monitoring system.

Display characteristics: It uses an LCD display with a backlight function to enhance visibility in low-light environments, and the backlight brightness is adjustable, which users can adjust according to ambient light conditions.

Communication capabilities: It has an RS422 interface and supports Bently Nevada proprietary protocols and Modbus protocols based on the AEG PI-Mbus 300 rev.E reference manual, which facilitates communication and data interaction with other devices or systems.

Performance parameters: The channel update rate is typically 1 second. The maximum power consumption is 12.0 W. The storage temperature range is - 30°C to 80°C.
