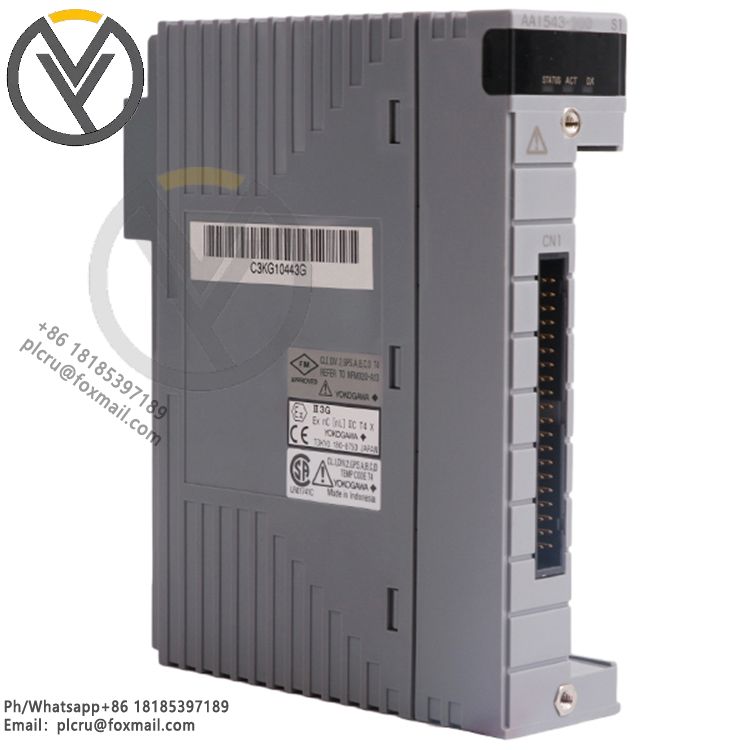

The AAI543-H50/K4A00 is a 16-channel isolated 4–20mA analog output module for the Yokogawa CENTUM VP/CS 3000 system, featuring HART protocol and KS cable interface. It is specifically designed for high-precision control of field actuators in DCS systems.

I. Model Code Analysis

AAI543: 16-channel, 4–20mA, isolated analog output module

-H: Supports HART digital communication

5: Redundant configuration standard switching response (no explosion-proof)

0: Basic type

/K4A00: With KS cable interface adapter (ATK4A-00), for connecting to AEA4D terminal block

II. Core Specifications

1. Output Characteristics

Number of Channels: 16, fully electrically isolated between channels

Output Signal: 4–20 mA DC (range 0–24 mA)

Accuracy: ±48 μA (±0.1% F.S.)

Load Resistance: 0–750 Ω

Open Circuit Detection: < 0.65 mA

Data Update Cycle: 10 ms

Temperature Drift: ±16 μA/10°C

2. Electrical and Isolation

Power Supply: 5 V DC (230 mA), 24 V DC (540 mA)

Isolation Withstand Voltage: 1500 V between output and system side AC / 1 min

Communication: HART protocol (requires ER node + EB401 Rev.2 + firmware support)

3. Physical and Environmental

Weight: Approx. 0.4 kg

Operating Temperature: -10°C ～ +60°C

Storage Temperature: -25°C ～ +70°C

Humidity: 10%–90% RH (non-condensing)

III. Core Functions and Advantages

High-Density 16 Channels: 16 isolated outputs per module, saving rack space, suitable for large DCS systems.

HART Communication: Supports remote parameter configuration, status monitoring and diagnostics, improving maintenance efficiency.

High Isolation and Anti-Interference: Dual isolation between channels and the system side, adaptable to strong electromagnetic industrial environments.

Redundancy Compatibility: Supports redundant configuration, standard switching response, ensuring continuous system operation.

High Precision and Fast Response: 10 ms update cycle, suitable for dynamic control loops.

Standard Interface: /K4A00 comes with a KS adapter, directly connecting to AEA4D. Terminal block for easy wiring

IV. Typical Application Scenarios

CENTUM VP / CS 3000 DCS System: Controls field devices such as regulating valves, actuators, and frequency converters

Process control industries such as petrochemicals, power, metallurgy, and pharmaceuticals

High-precision control loops requiring HART remote configuration and diagnostics

Critical control loops with redundant configuration

V. System Compatibility

Fully compatible with Yokogawa CENTUM VP and CENTUM CS 3000 distributed control systems

Adaptable to FIO (Field Input Output) rack and ER bus node units

Seamlessly interface with AEA4D terminal block and ATK4A-00 KS adapter
