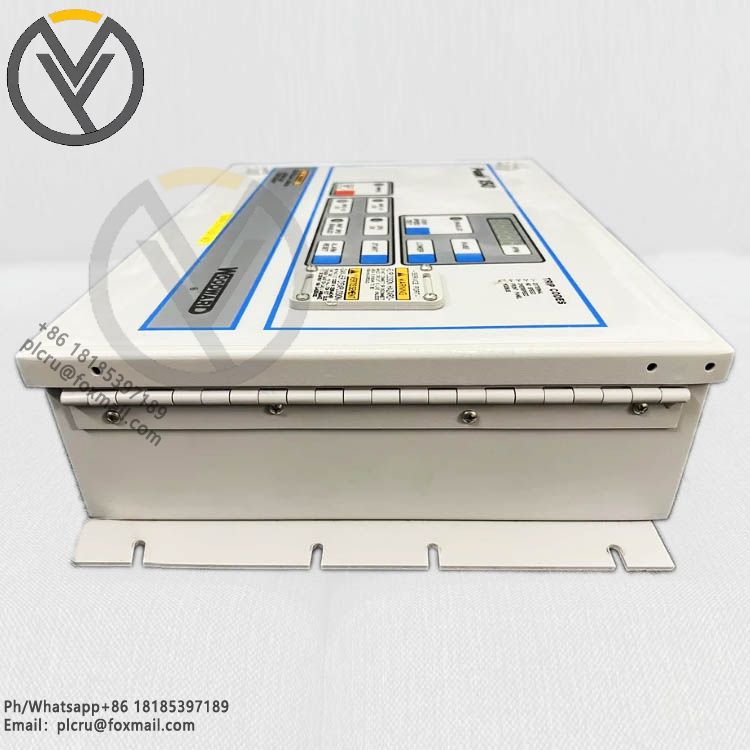

Woodward 9905-867 Peak150 Turbine Digital Speed Controller
Delivery time 3 days
Product origin New/used
Email plcru@foxmail.com
Mobile/wechat /WhatsApp +86 18185397189
The following is the data table information of the Woodward 9905-867 Peak150 Tur
The following is the data table information of the Woodward 9905-867 Peak150 Turbine Digital Speed Controller:
General information
Manufacturer: Woodward
Product Model: 9905-867
Product type: Peak150 Series Digital controller
Country of origin: The United States
Power input: AC/DC
Communication protocol: Modbus
Protection grade: NEMA 4X
Technical Specification
Processor: 16-bit, 12MHz microprocessor
Communication
Protocol: Modbus
Interface: RS-232/422/485
Power supply
Type: AC/DC
Voltage: 90-150 VDC or 88-132 VAC, 47-63 Hz
Input/output
Input
Magnetic resistance sensor input: 2 identical inputs, high signal selection, minimum input voltage 1 VRMS, minimum frequency 200 Hz, maximum frequency 15 kHz
Analog input: 1, remote speed setting signal (4-20 mA or 1-5 VDC, internal jumper optional)
Discrete input: 8, remote (isolated, 5-28VDC), including functions such as speed increase, speed decrease, emergency stop, alarm reset, remote speed setting enable, start, idle/minimum governor, selection of high dynamic or overspeed test, etc
Output
Analog output: 2, actual speed output (scalable, 4-20/0-1 mA), configurable reading (scalable, 4-20/0-1 mA), optional output of actual speed, speed set point, actuator output, remote speed set point, valve slope value
Actuator output: 1, 4-20 or 0-200 mA (internal jumper optional)
Relay output: 4
Environmental specification
Protection grade: NEMA 4X, waterproof and dustproof, and can operate in corrosive environments
Operating temperature: -25℃ to + 60℃
Storage temperature: -40℃ to + 85℃
Dimensions: 483mm (width) × 310mm (height) × 105mm (depth)
