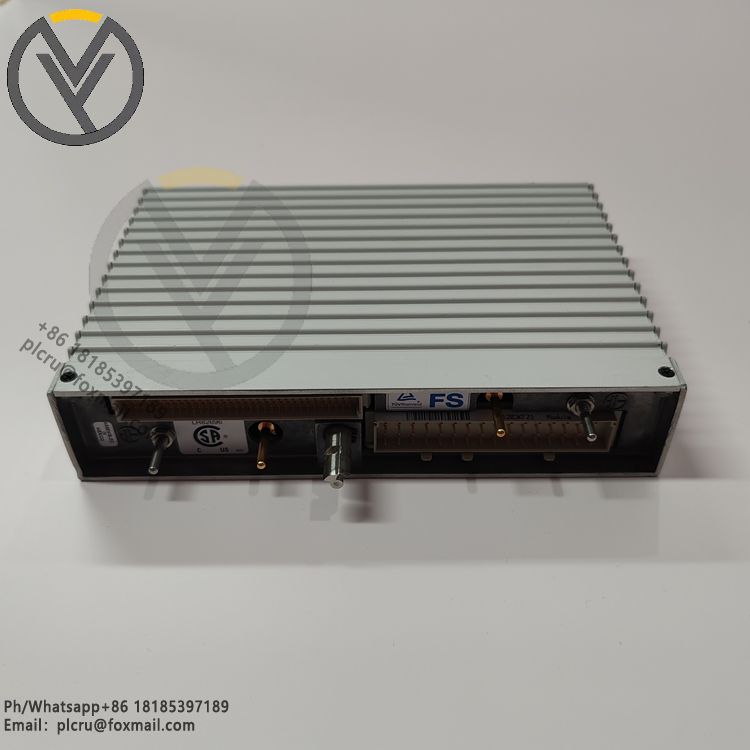

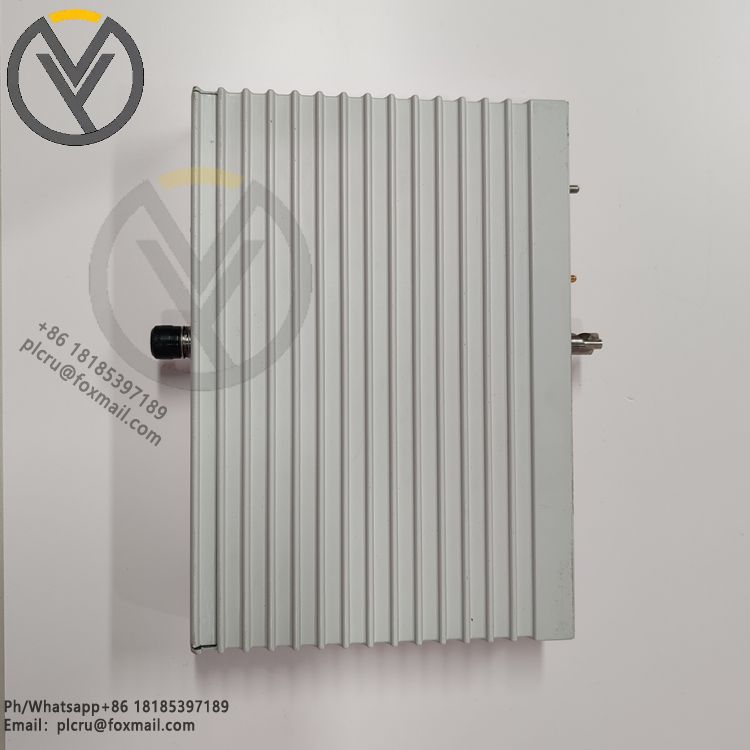

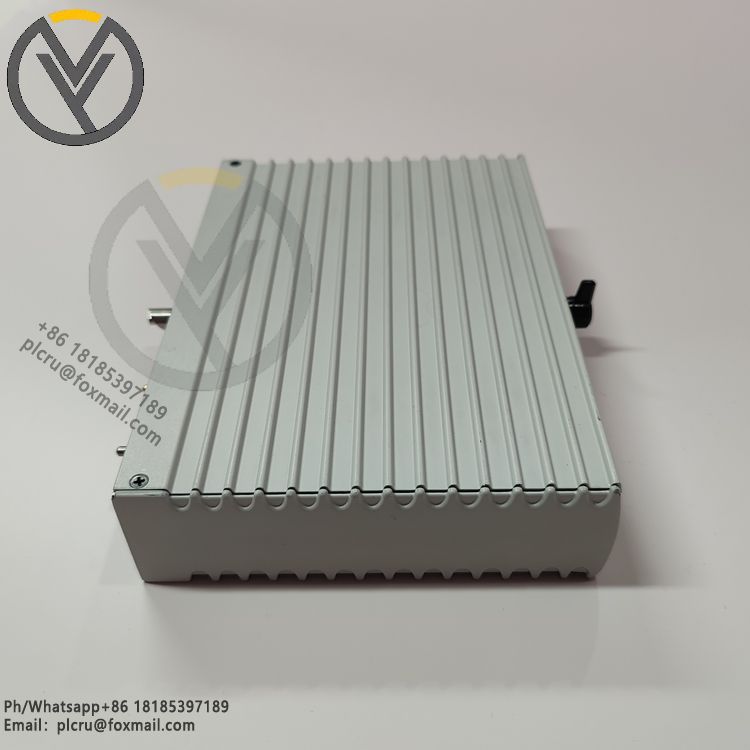

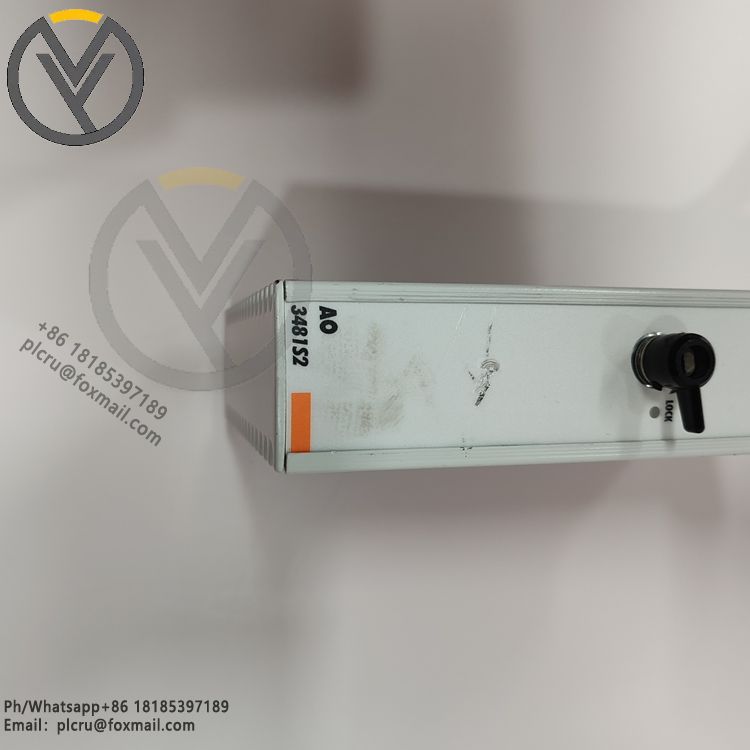

A03481S2 A03481 S2 Triconex Tricon communication model

Backplane bus communication: A03481S2 is likely to communicate with other modules in the Tricon system, such as controllers, power modules, etc., through the backplane bus. The backplane bus provides a high-speed and reliable data transmission channel between modules. A03481S2 can transmit the collected data or its own status information to the controller, and receive instructions sent by the controller to realize the corresponding functions.

Support multiple industrial communication protocols: Triconex systems usually support industrial communication protocols such as Modbus and Profibus. If the A03481S2 module is used to exchange data with external devices or other systems, these protocols may be used. It may achieve data communication with field sensors, actuators or other control systems by cooperating with modules with corresponding communication interfaces, thereby incorporating external devices into the control range of the Tricon system.

Redundant communication design: Considering the high reliability requirements of the Triconex system, the A03481S2 module may have redundant communication functions. For example, there may be dual network interfaces or redundant bus connections. When one communication path fails, it can automatically switch to another path to ensure the continuity of communication and prevent system loss of control or data loss due to communication failure.

Diagnostic information communication: The module may have a self-diagnosis function and can monitor its own working status in real time. Its diagnostic information will be transmitted to the controller or operation station through the backplane bus or other specific channels. The operator can view the module status information through the system's human-machine interface to timely discover and eliminate faults and ensure stable operation of the system.
