CIM3211S2 CIM3211 S2 Triconex Tricon Communication Model

CIM3211S2 is a communication interface module launched by Triconex for Tricon Safety Instrumented System (SIS). Its communication model in the system is mainly reflected in supporting multiple industrial protocols to achieve reliable communication between Triconex controllers and external systems, ensuring seamless data exchange in critical safety industrial environments. The details are as follows:

Supported communication protocols: The module supports multiple industrial communication protocols such as Modbus (TCP/IP and serial), Ethernet/IP, OPC, etc. Through these protocols, it can communicate with devices and systems from different manufacturers, making it easy to integrate Tricon systems into complex industrial automation networks.

Data transmission mode: It has high-speed data transmission capabilities to meet the needs of real-time operations. The module has multiple communication ports and can establish connections with multiple external devices or systems at the same time to achieve parallel data transmission and improve communication efficiency.

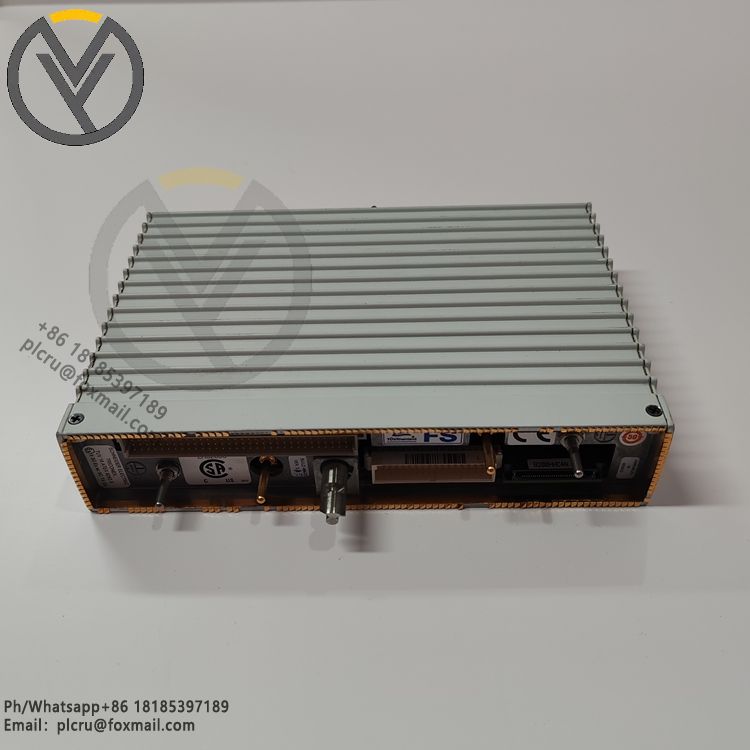

Communication with other components in the system: CIM3211S2 is powered by the Triconex chassis backplane, and also communicates with the Tricon controller and other modules through the backplane, transmitting the received external data to the controller, or sending the controller's instructions to external devices.

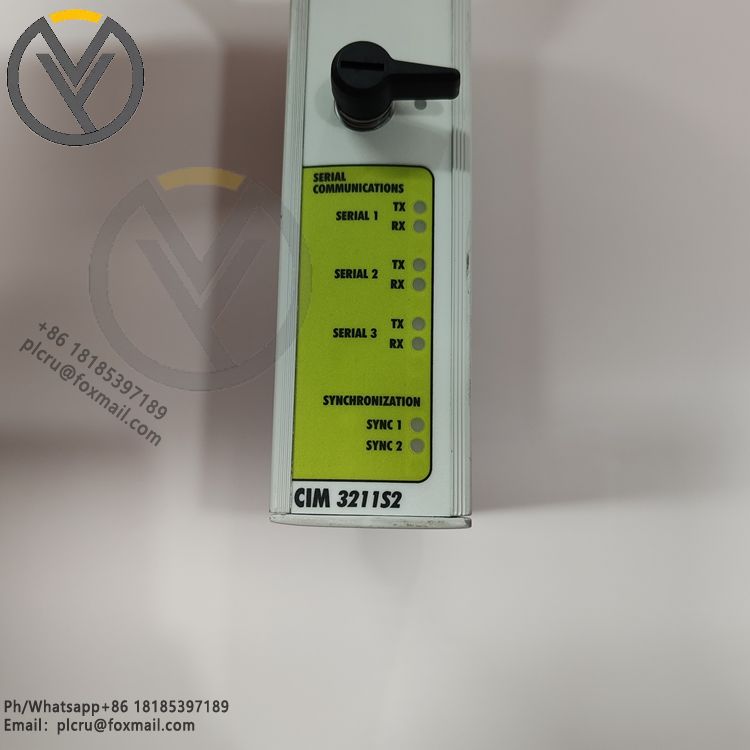

Diagnosis and status display: The module has a self-diagnosis function and can continuously monitor its own health. At the same time, the communication port is equipped with status and activity LED indicators. Through the on and off status of the indicator lights, the operator can intuitively understand the communication status and working conditions of the module, which is convenient for timely detection and elimination of communication faults.
