DI3301S2 DI3301 S2 Triconex Tricon communication model

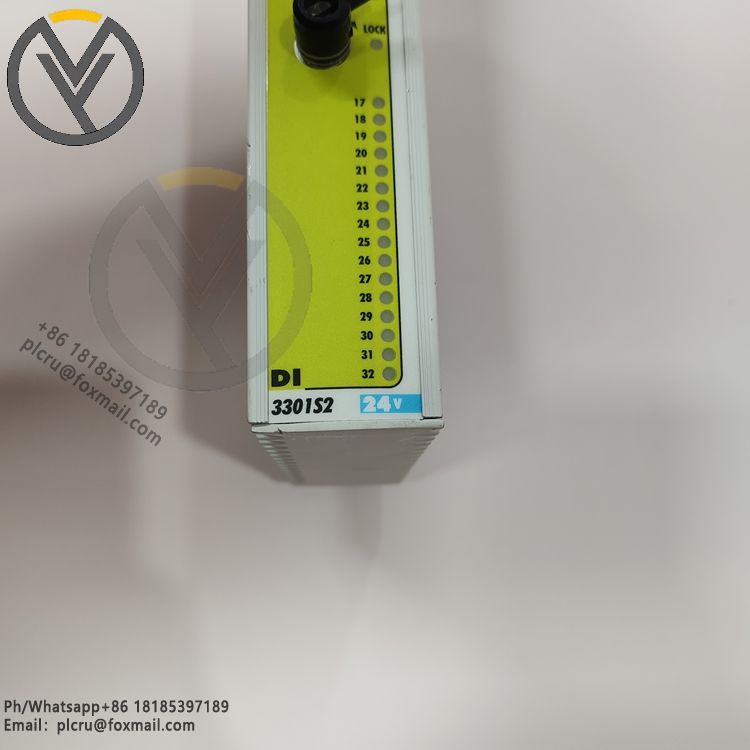

Triconex DI3301 S2 is a digital input module. It is mainly used in the Tricon system to collect field digital signals and transmit the signal status to the controller. It does not involve a complex independent communication model, but as a signal input node in the Tricon system communication architecture, it follows the overall communication mechanism of the Tricon system, as follows:

Communication with the controller: The DI3301 S2 module can read 32 isolated digital signals and report the status of these signals to the Tricon controller. It usually communicates with the Tricon controller through the backplane bus. This communication method can ensure fast and stable data transmission, so that the controller can obtain the status information of the field equipment in time for subsequent logical operations and control decisions.

Communication in fault-tolerant systems: The Tricon system adopts a triple redundant (TMR) architecture. The DI3301 S2 module supports SIL 3 applications and uses the TMR architecture to achieve fault tolerance and high availability. The module will send the collected signals to three redundant processor channels at the same time. The controller determines the final signal status through a three-out-of-two voting mechanism, thereby improving the reliability and safety of the system. Even if one of the channels fails, it will not affect the system's correct judgment and processing of the signal.

Communication protocols and interfaces: The Tricon system as a whole can support multiple communication protocols, such as HART, Profibus, etc., and can interact with other systems or devices. As part of the system, the DI3301 S2 module indirectly participates in these communication processes. However, the module itself is mainly focused on digital signal input and does not directly provide these communication protocol interfaces. Instead, it cooperates with modules or controllers with corresponding communication interfaces to achieve communication with external devices based on different protocols.

Diagnostic information communication: The DI3301 S2 module has a self-diagnosis function, which can continuously monitor its own health status and provide diagnostic information through system LED indicators and internal logs. These diagnostic information will also be transmitted to the controller through the backplane bus and other methods. The operator can view the status of the module through the controller or related operation interface to facilitate timely detection and troubleshooting.
