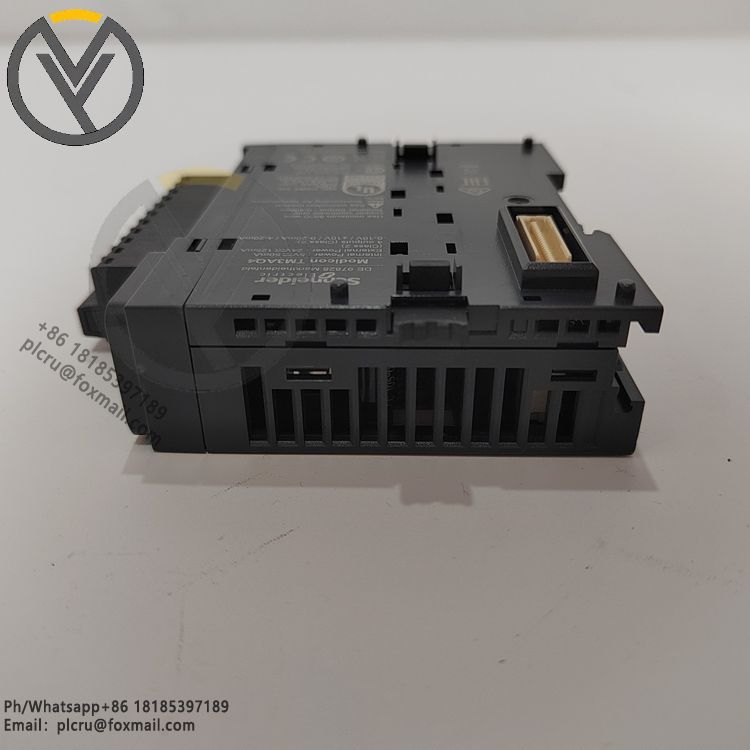

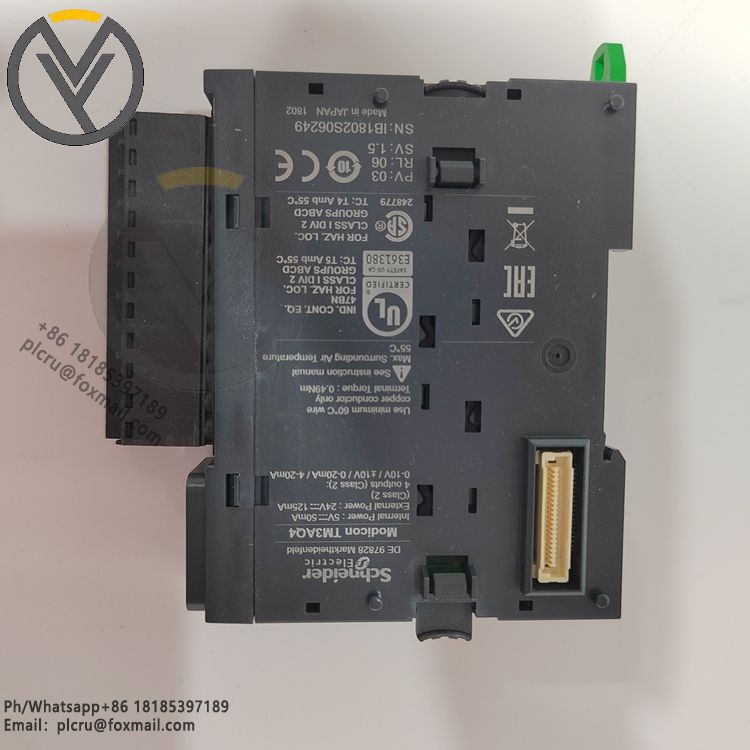

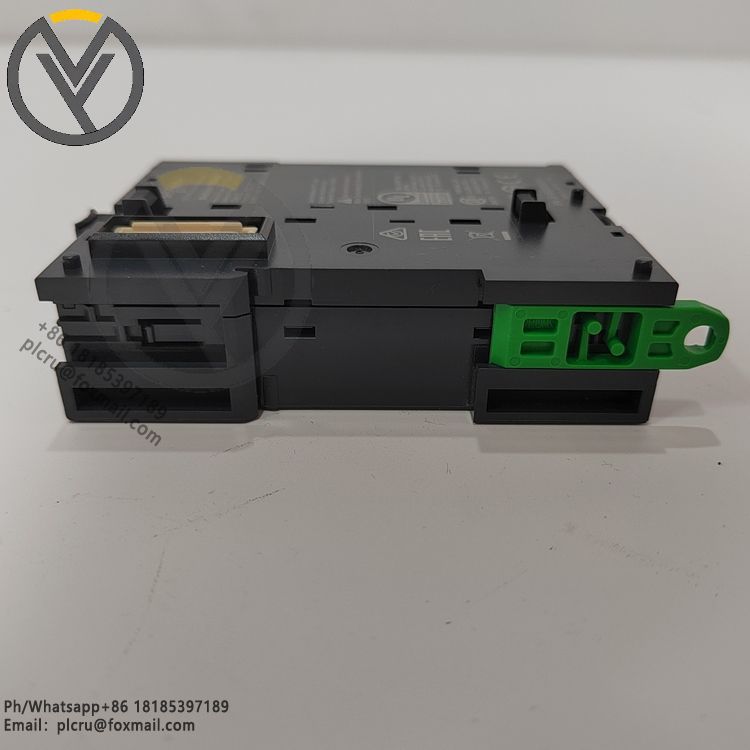

Schneider TM3AQ4 Analog Output Module

Schneider TM3AQ4 is an analog output module in Schneider Electric's Modicon TM3 series. It is mainly used to convert digital signals in PLC into analog signals to control actuators such as valves and motors. The relevant introduction is as follows:

Number of channels: It has 4 analog output channels, which can control multiple devices or output multiple analog signals at the same time.

Output type: It supports multiple analog output types. The voltage output can be selected from 0-10V or -10V to +10V, and the current output can be selected from 0-20mA or 4-20mA.

Resolution: Each channel supports 12-bit resolution, which can accurately convert digital signals into corresponding analog signals to ensure the accuracy of control.

Output accuracy: The accuracy is ±0.2% full scale, which can achieve precise control of actuators.

Conversion time: The conversion time of each channel is less than 10ms, which can quickly respond to the control instructions of the PLC and output the corresponding analog signals in time.

Power supply voltage: The rated power supply voltage is 24V DC, and the operating range is 20.4V to 28.4V.

Protection level: The protection level is IP20, which can be used in general industrial environments and can prevent fingers or similar objects from touching internal live parts.

Operating temperature range: The operating temperature range is - 25°C to 70°C, and the storage temperature range is - 40°C to 85°C, which can adapt to different working environments.

Dimensions and weight: The dimensions are approximately 23.6mm (width) × 70mm (depth) × 90mm (height), and the weight is 0.115kg. It is small and easy to install in the control cabinet.

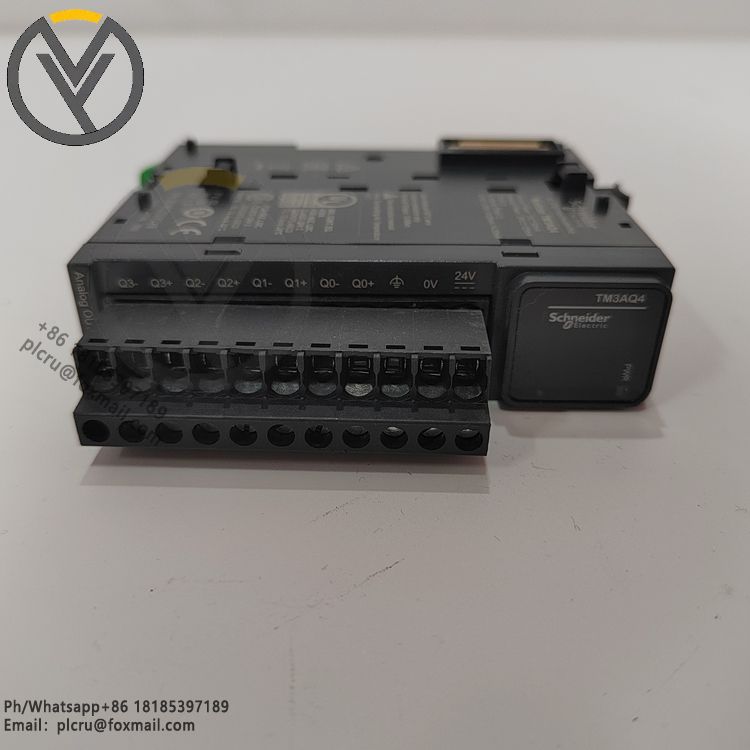

Connection method: It uses screw or spring connectors, which are reliable and easy to install and remove cables.

Communication interface: It communicates with PLC through the Modicon TM3 bus and can be easily integrated into the system composed of Modicon M221, M241, M251 and other series controllers.
