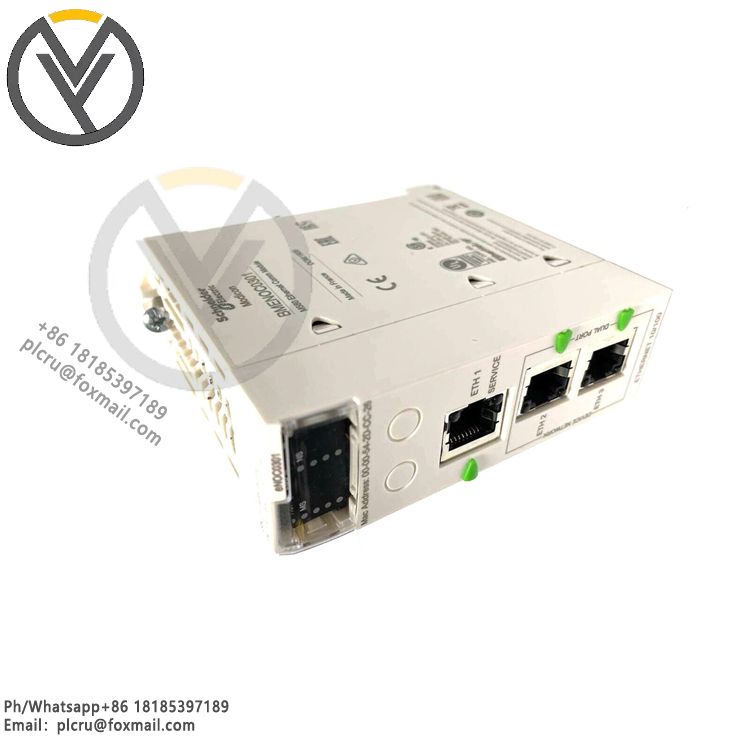

Schneider Electric BMENOC0301 Ethernet module is a high-performance communicatio
Schneider Electric BMENOC0301 Ethernet module is a high-performance communication module produced by Schneider Electric, mainly used for Ethernet communication in industrial automation and control systems. The following is a detailed introduction to the module:
Basic information
Brand: Schneider Electric
Product name: BMENOC0301
Product type: Communication module
Product series: Modicon M580
Technical specifications
Integrated connection type: 3 Ethernet ports, connector type is RJ45
Transmission rate: 10/100 Mbit/s
Transmission mode: Double shielded twisted pair
Built-in functions:
Modbus TCP I/O scanner and messaging
EtherNet/IP I/O scanner and messaging
RSTP support
Port mirroring
Built-in multi-port switch
Power supply: Powered by the internal power supply of the rack
Current consumption:
900 mA at 3.3 V DC (product version >= 13)
1800 mA at 3.3 V DC (product version < 13)
Environmental requirements:
Operating temperature: 0°C to 60°C
IP rating: IP20
Indicator status
Processor operation (RUN): green LED
Processor or system fault (ERR): red LED
Ethernet port configuration status (ETH MS): green/red LED
Ethernet network status (Eth NS): green/red LED
