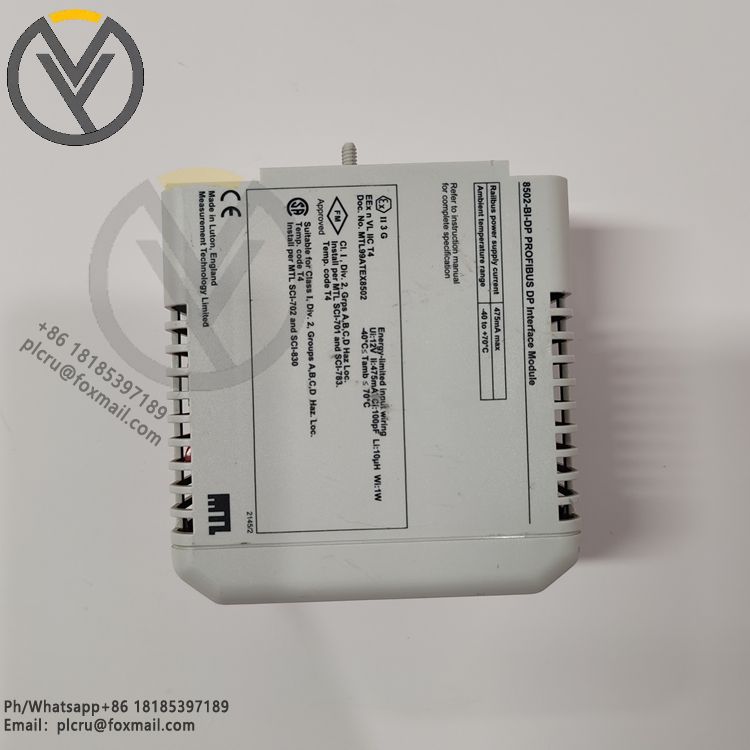

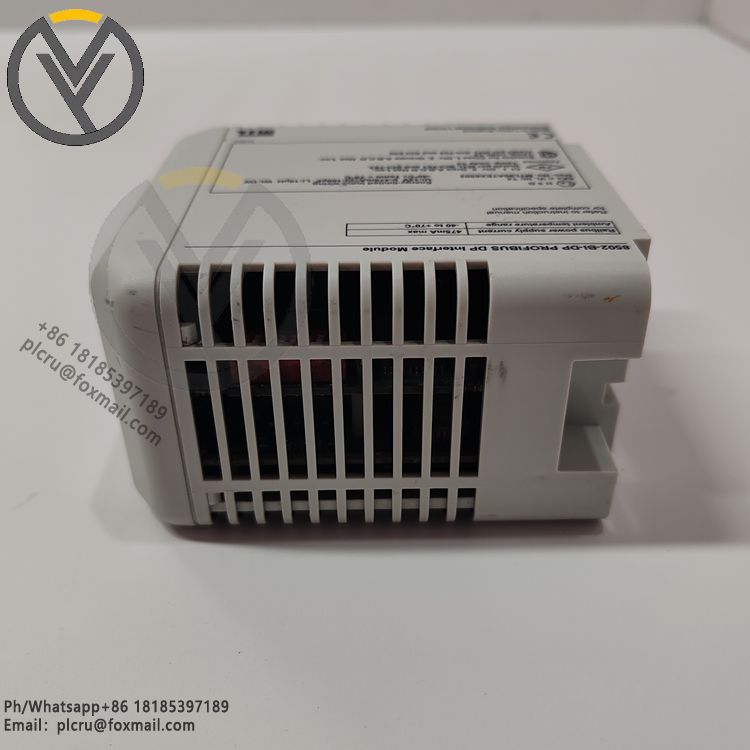

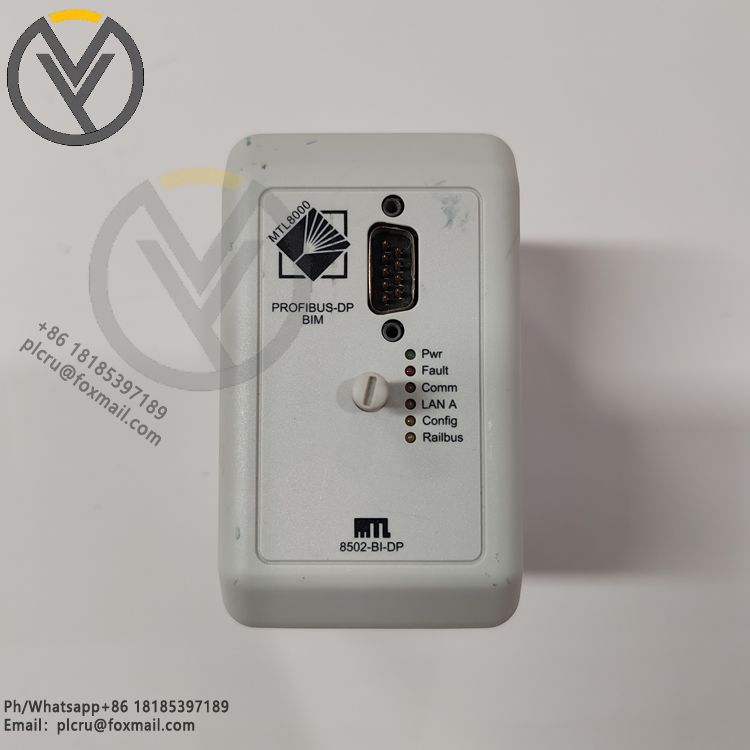

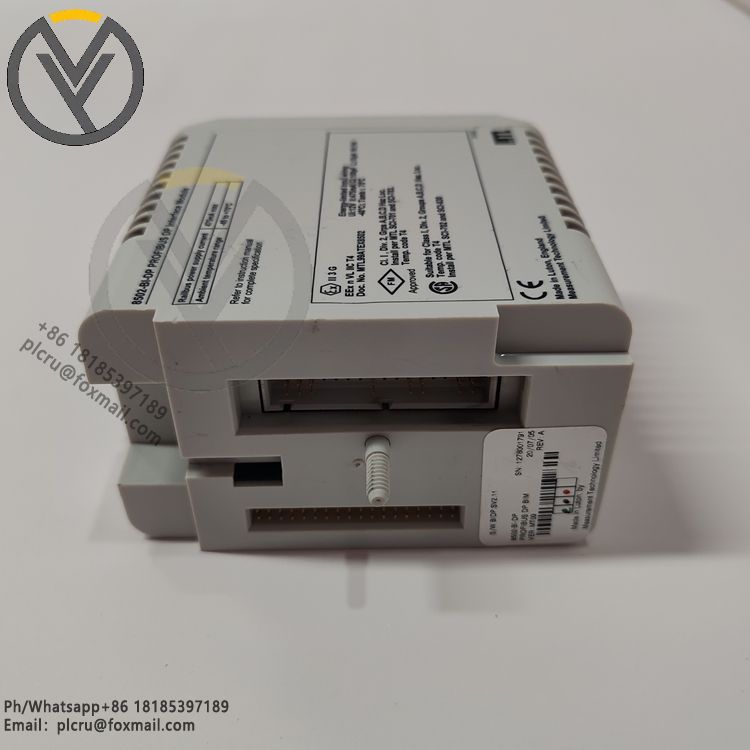

MTL 8502-BI-DP Bus interface module

MTL 8502-BI-DP is a bus interface module for industrial automation. It is mainly used to connect and transmit data to realize the control and monitoring of industrial automation equipment. The specific introduction is as follows:

Functional features:

High-speed data transmission: Supports high-speed data transmission, LAN speed up to 6Mbaud, which can ensure the real-time and accuracy of data, enable the host to quickly respond to the conditions in the control process, and improve the performance and work efficiency of the industrial automation system.

Multiple protocol support: Supports multiple bus protocols such as Profinet and EtherNet/IP, and can also process HART process and state variables on Profibus DP, and can be seamlessly integrated with different devices and systems.

Multi-channel input: Supports multi-channel input, can process multiple signals at the same time, and improve the processing power and efficiency of the system.

Programmable function: With programmable function, users can customize it according to specific needs to achieve more flexible and diverse applications.

Extended diagnostic function: Supports the status information of Profibus Extended Diagnostics, and can perform extended diagnosis of module and channel status for easy maintenance and troubleshooting.

Communication interface: It has Ethernet, RS-232, RS-485 and other communication interfaces, which facilitates data exchange and remote monitoring with other devices or systems.

Configuration method: It has non-volatile memory for configuration, which can be configured through the local port or Profibus host configuration software, and can also be maintained by HART through the communication adapter.

Application field: It is widely used in industrial automation, manufacturing, energy, transportation and other fields. It can link the MTL8000 node to the Profibus DP host LAN, supports up to 24 I/O modules, and is often used as a slave device of the Profibus master device, playing a role in data transmission and interface conversion in industrial control systems.
