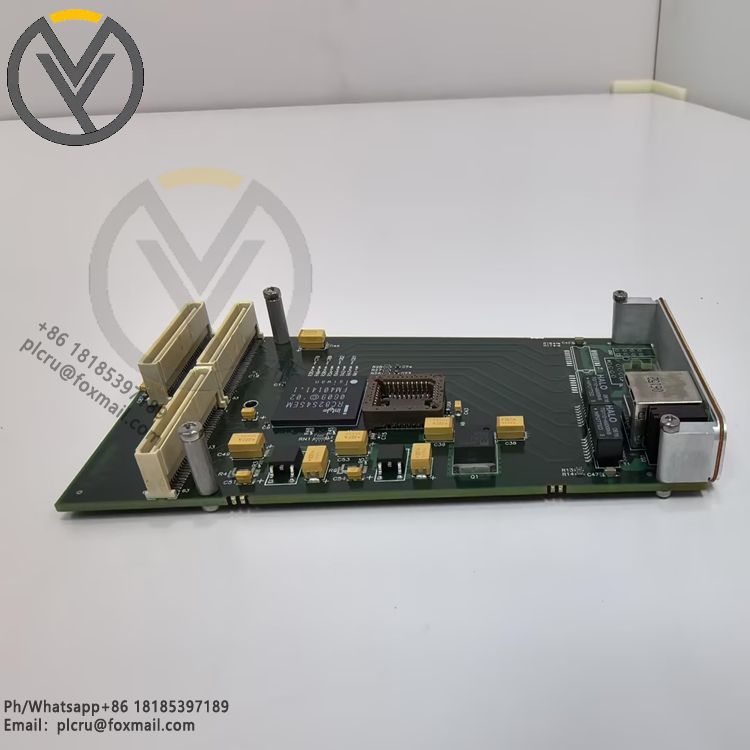

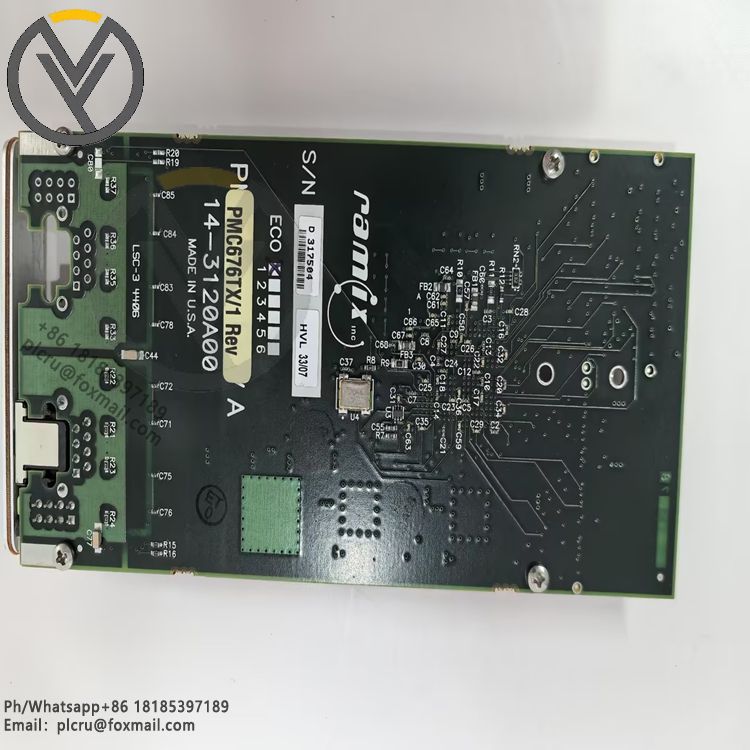

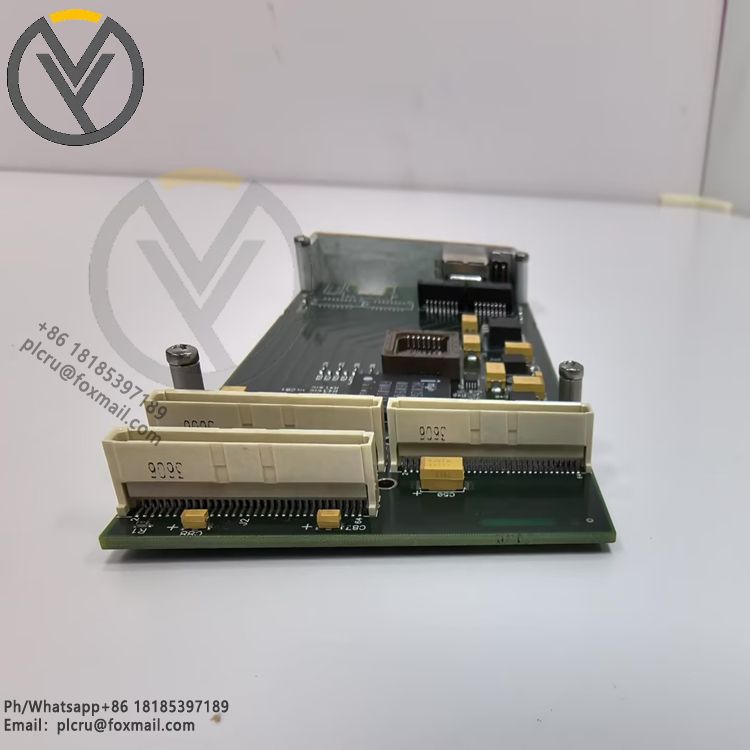

RAMIX PMC676TX Ethernet Control Board PMC676TX/1

RAMIX PMC676TX is a dual-port Gigabit Ethernet control board with high performance and high stability. It is widely used in industrial Ethernet communication and other fields. The following is a detailed introduction:

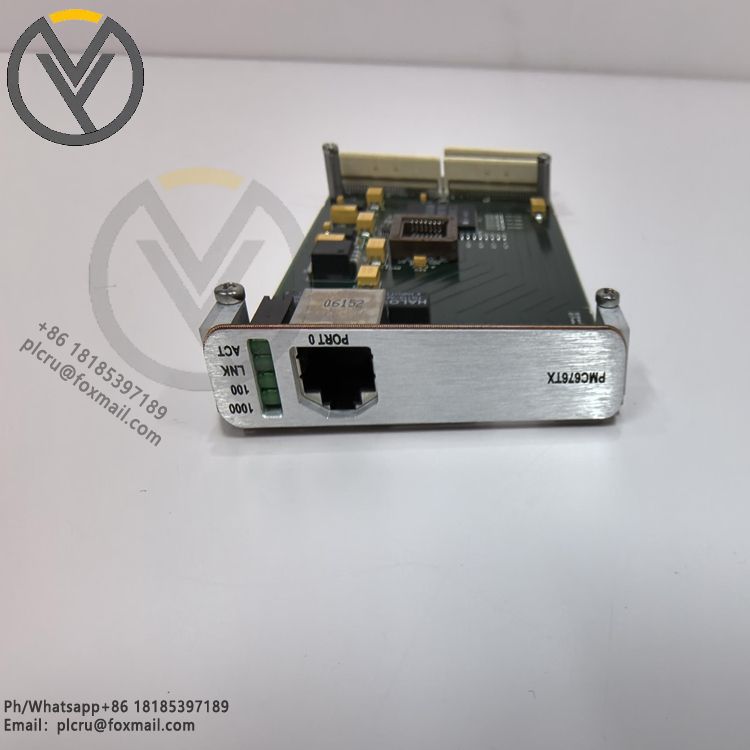

Interface characteristics: It has dual 10/100/1000BaseTX Ethernet interfaces, which can support 10M, 100M, and 1000M rate adaptation and can work in full-duplex mode. It uses RJ-45 connector for easy connection with network cables.

Data processing capabilities: The Ethernet/PCI/PCI-X interface is equipped with a powerful DMA engine for each port with a 64KB deep FIFO buffer to ensure continuous full-bandwidth operation while minimizing PCI overhead.

Functional features: It has rich host offload functions, including packet filtering based on checksum errors, SNMP and RMON statistics counters, hardware TCP checksum offload, etc. It supports multiple address filtering modes, such as 16 exact matches (unicast or multicast), 4096-bit hash filter for multicast frames, and unicast and multicast in promiscuous mode.

Software Support: Drivers are available for a variety of major operating systems, including Windows, Linux, VxWorks, LynxOS, and Solaris, with OBP and PXE boot options for Solaris.

Other Features: Supports jumbo frames for more efficient data transfer. Available in a RoHS-compliant version for greater environmental protection. Optional acrylic or polyurethane conformal coating for enhanced reliability in harsh environments.
