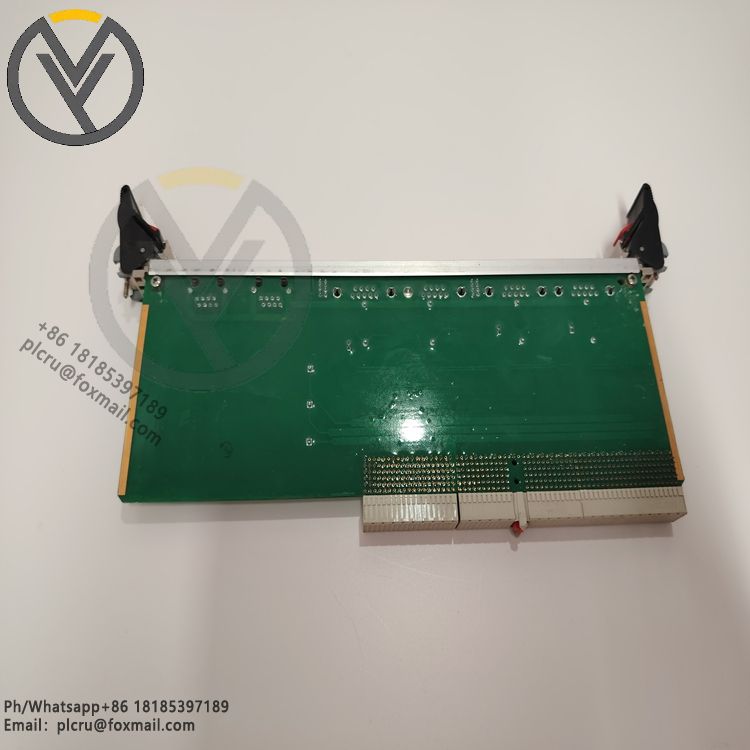

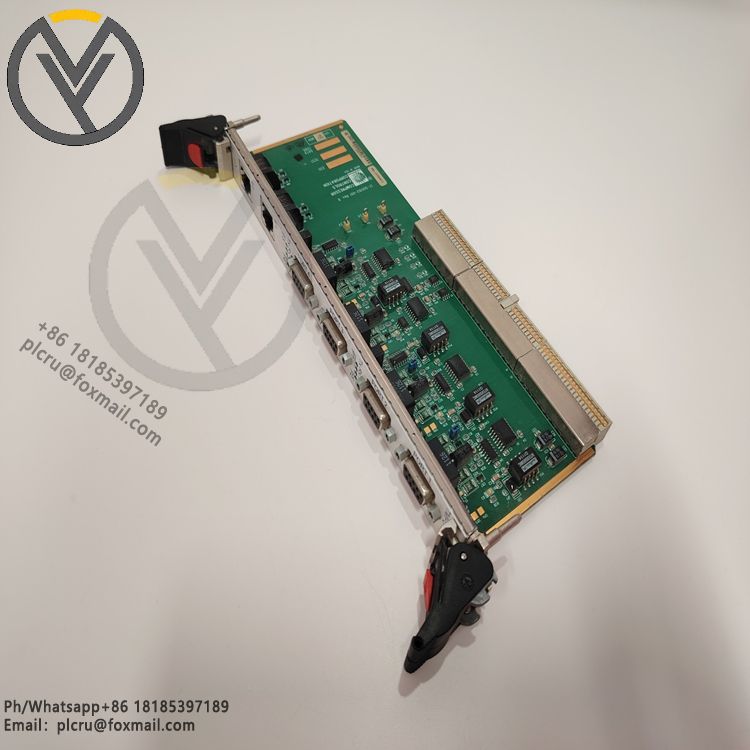

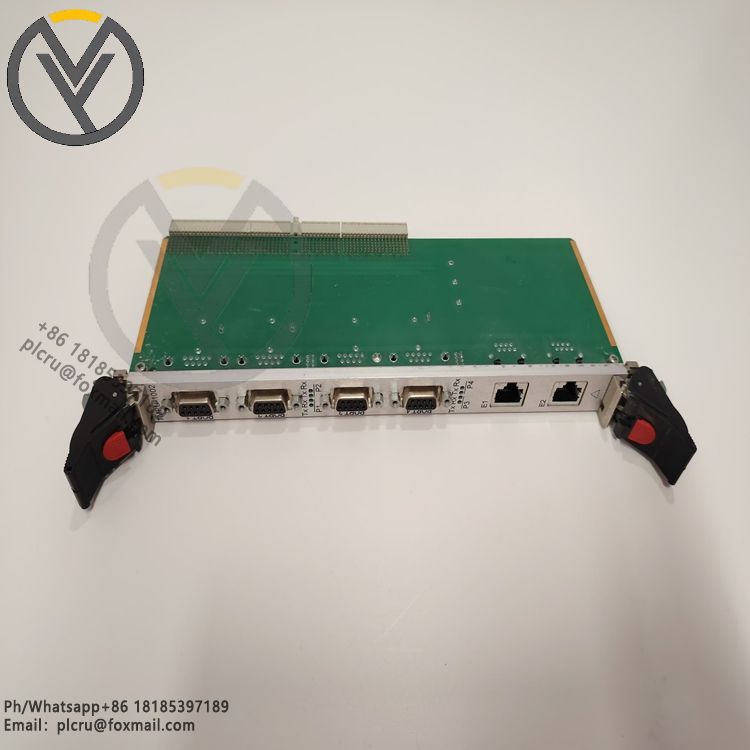

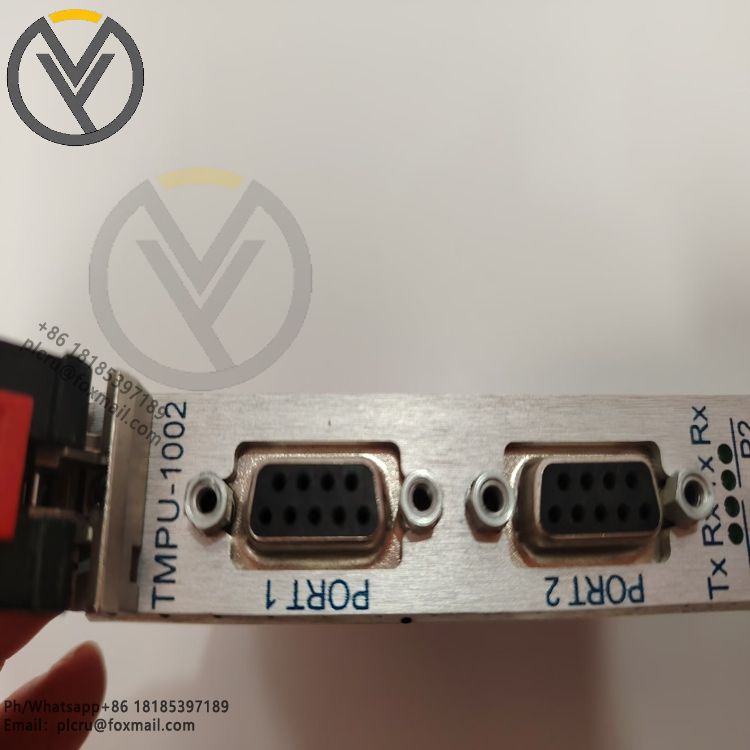

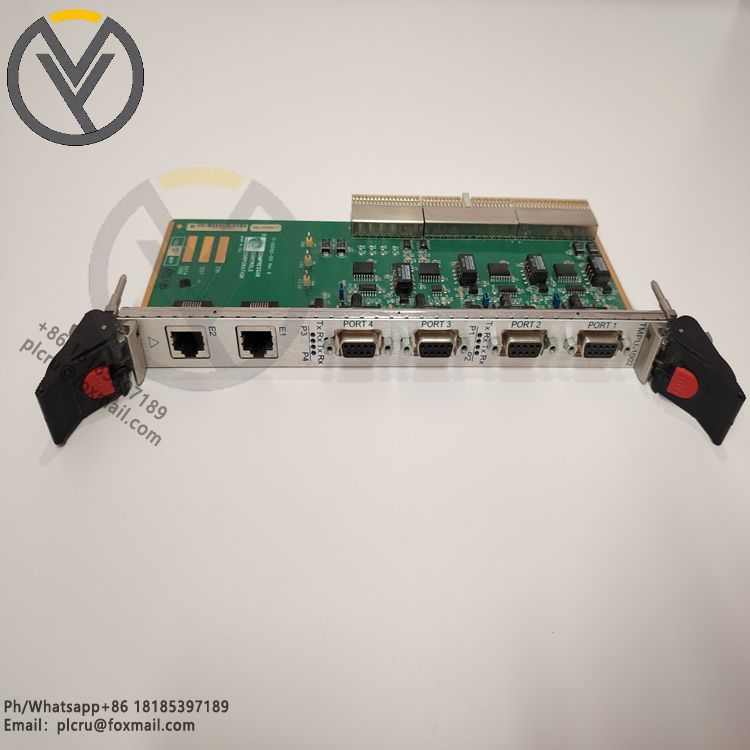

CCC TMPU-1002 Transition Module

The CCC TMPU-1002 transition module is an industrial-grade signal conversion module designed by Compressor Controls Corporation (CCC), mainly used for signal processing and conversion in industrial control systems. The following is a detailed introduction:

Core Function

Signal Conversion: It can convert the input analog signals, digital signals, etc. into the standard signal format required by the system, such as 4-20mA, 0-10V and other standard industrial control signals, to ensure that data is transmitted in a unified format between different devices and systems to achieve compatibility between devices.

Communication Protocol Support: It supports a variety of industrial standard communication protocols, such as Modbus, Profibus, etc., and can exchange data with the host computer or other modules, which is convenient for use in different industrial network environments to achieve system integration and expansion.

Signal Isolation and Protection: It provides electrical isolation function, which can effectively prevent signal interference and improve the noise resistance and reliability of the system. At the same time, it can protect the equipment from overvoltage and surge, and reduce the risk of equipment damage due to electrical failure.

Hardware Features

Input and Output Features: It supports a variety of analog and digital input formats, which can adapt to different types of sensor and device output signals. The output is a standard industrial control signal, which can be directly connected to common industrial control equipment.

Communication interface: It has communication interfaces such as Modbus and Profibus, and can exchange data with other devices through the corresponding communication network.

Power supply voltage: It usually uses 24V DC power supply. This DC power supply method has the advantages of high stability and strong anti-interference ability, and is suitable for industrial environment applications.

Installation method: It supports DIN rail or rack installation, which is convenient for installation and layout in industrial control cabinets and easy to integrate into existing industrial control systems.

Design features

Modular design: It adopts a compact modular design, which is easy to install, integrate and maintain. The module is small in size, which can effectively save installation space. It also supports quick replacement. When the module fails, it can be quickly replaced to reduce system downtime.

Industrial-grade design: It can adapt to harsh industrial environments, such as high temperature, humidity, vibration and other conditions. It has the ability to operate stably for a long time, and can maintain reliable performance during the continuous operation of industrial production, reduce the risk of system failure, and ensure the smooth progress of the production process.
