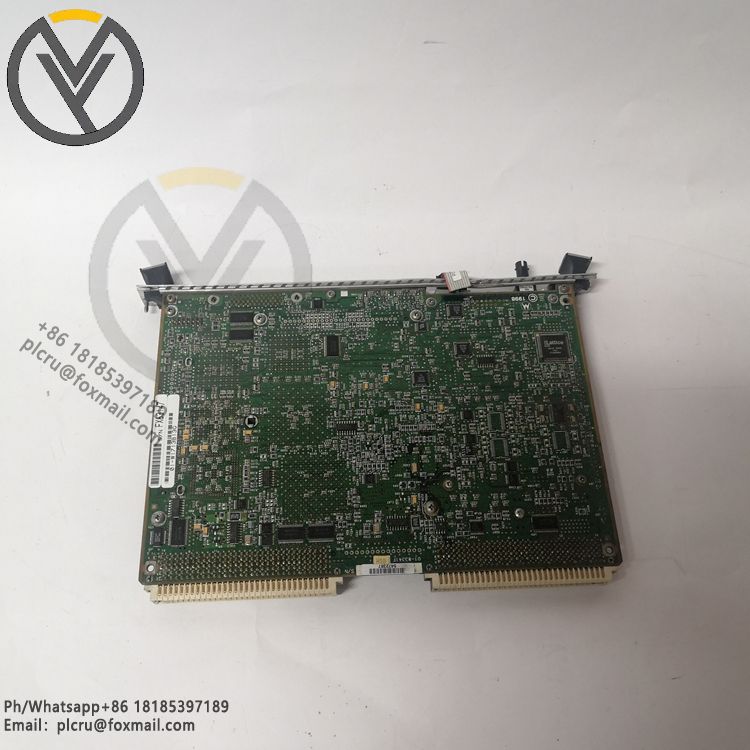

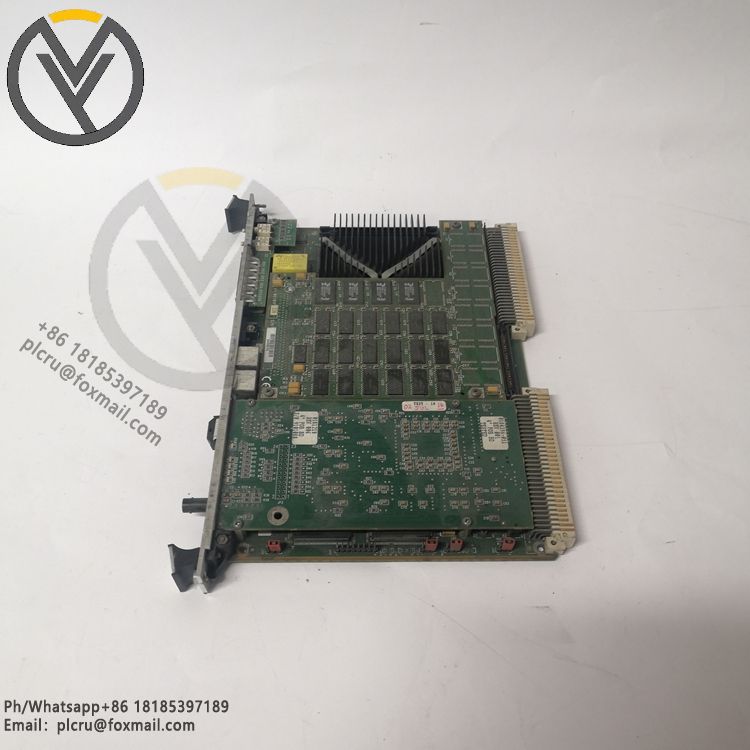

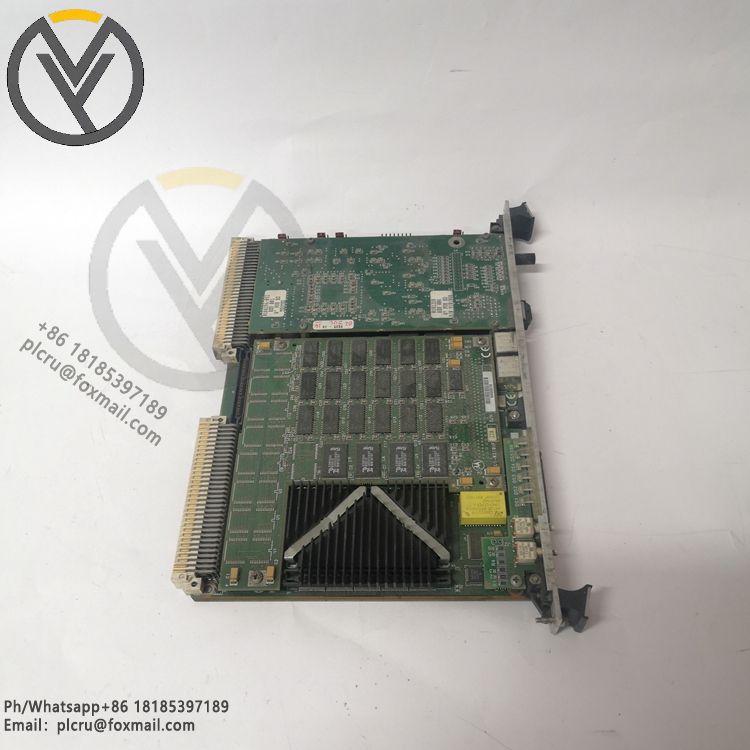

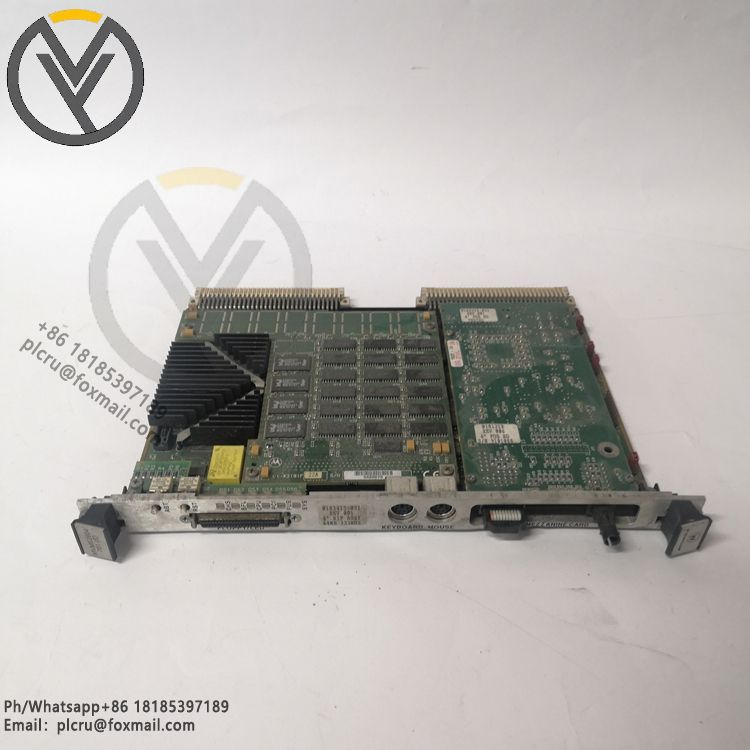

Motorola MVME2604761 IO System Module
Motorola MVME2604761 is a high-performance I/O module under the MVME2600 series, which is mainly used in industrial automation and control systems. It is often used with Motorola MVME2604 series single-board computers to undertake data collection and signal transmission tasks, and is widely trusted in industrial scenarios due to its stable and reliable performance. The detailed parameters and characteristics are as follows:
- I/O Core ConfigurationThe module is equipped with 8 input channels and 8 output channels in total. It supports receiving signals from multiple sensors and sending control signals to multiple actuators. The input voltage range is 0 - 10V, which can stably process digital signals. It is suitable for connecting on-site devices such as sensors, switches, and buttons, converting the working state of these devices into signals recognizable by the upper control system, so as to realize the monitoring and control of the industrial production process. In addition, it is equipped with an RS485 interface, which provides convenient conditions for data interaction with other devices in the industrial control system.
- Key Performance AdvantagesIt has the characteristics of fast response and high-speed data transmission. It can quickly process the received on-site signals and transmit data to the main controller. This rapid response capability ensures the real-time performance of industrial control. At the same time, the module adopts high-quality manufacturing materials and processes, which enables it to maintain stable operation in harsh industrial environments and has strong anti-interference ability. Its modular design also facilitates users to expand and customize according to actual application needs, and can be used with expansion modules to meet more complex I/O demand scenarios.
- Basic Physical and Electrical Parameters
- Power supply: It adopts 24V DC power supply, which is consistent with the common power supply standard in industrial automation fields and is easy to integrate into existing control systems.
- Working temperature: The applicable temperature range is -20℃ to 70℃, which can adapt to the temperature changes of most industrial workshops and on-site environments.
- Size and weight: There are slight differences in the size data provided by different channels. One version is 120mm × 80mm × 35mm, and another version is 20cm × 5.5cm × 12cm. The weight is about 0.39kg, which is small and light, and convenient for installation and layout in the control cabinet.
- Typical Application ScenariosAs an important I/O spare part module in PLC systems, it is widely used in various industrial automation control links such as production line monitoring, equipment status detection, and process control. It is often used in conjunction with the main controller to form a complete control system, and is especially suitable for scenarios that require multi-channel signal collection and simultaneous control of multiple actuators, such as the assembly line control in the manufacturing industry and the on-site equipment monitoring in the chemical industry.
