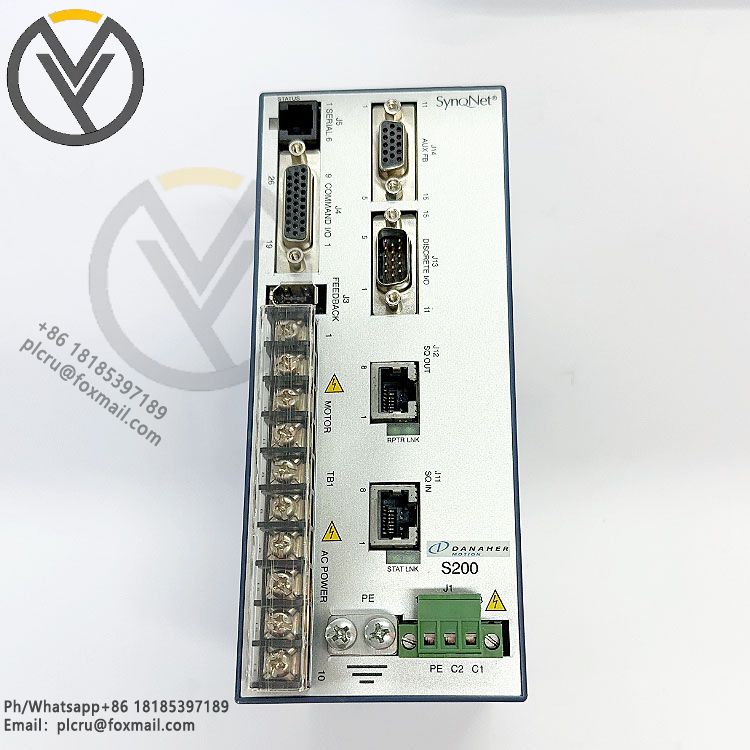

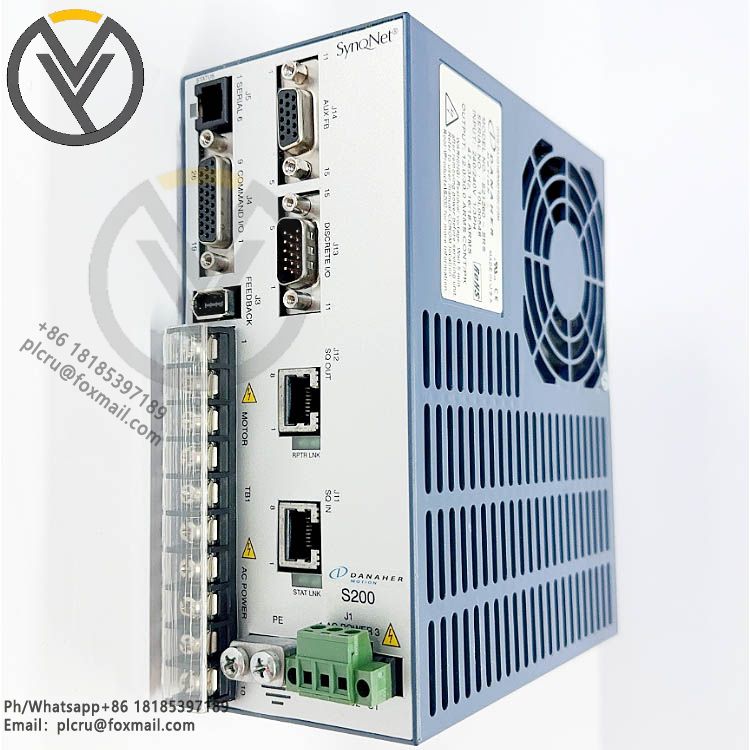

KOLLMORGEN S21260-SRS SERVO DRIVE
Delivery time 3 days
Product origin New/used
Email plcru@foxmail.com
Mobile/wechat /WhatsApp +86 18185397189
General informationBrand: KOLLMORGENModel: S21260-SRSProduct type: Single-axis s
General information
Brand: KOLLMORGEN
Model: S21260-SRS
Product type: Single-axis servo amplifier/servo driver, belonging to the ServoStar S200 series
Country of origin: The United States
Electrical parameters
Input voltage: 120-240V ac. It can accept different voltage levels such as 200V ac, 208V ac, 220V ac, and 230V ac. It supports single-phase (2P) or three-phase (3P) input.
Rated current: Continuous current 12A rms, peak current 18A.
Rated power: 4kW.
Peak output power: Within 1 second, it is 10,000VA on a 240V ac three-phase power supply and 8,000VA on a 240V ac single-phase power supply
Performance characteristics
High-precision control: It can achieve high-precision current or voltage control, thereby ensuring the position and speed control accuracy of the servo motor, and is suitable for industrial applications with high precision requirements.
Fast response: It has excellent dynamic response characteristics, capable of quickly tracking changes in control signals, enabling the servo motor to perform corresponding actions promptly and meeting the requirements of high-speed motion control.
Adjustable parameters: It features adjustable gain, bias, limit and other parameters. Users can adjust them according to specific application requirements and motor characteristics to optimize system performance.
Protection function
Overcurrent protection: When the output current exceeds the rated value, the output is automatically cut off or current limiting measures are taken to protect the amplifier and motor from damage.
Overvoltage protection: When the input voltage or output voltage is detected to exceed the specified range, a protective action is taken to prevent the equipment from being damaged due to overvoltage.
Overheat protection: Monitor the internal temperature of the amplifier. When the temperature is too high, automatically reduce the output power or stop working to prevent faults and damage caused by overheating.
Application field
Mechanical processing: such as CNC machine tools, machining centers, etc., are used to precisely control the movement of tools or worktables to ensure processing accuracy.
Automated production lines: such as material handling and assembly robots, etc., achieve precise position positioning and speed control, improving production efficiency and quality.
Robot control: It provides power and control for the joint drive of robots, enabling them to perform various precise movements and tasks
