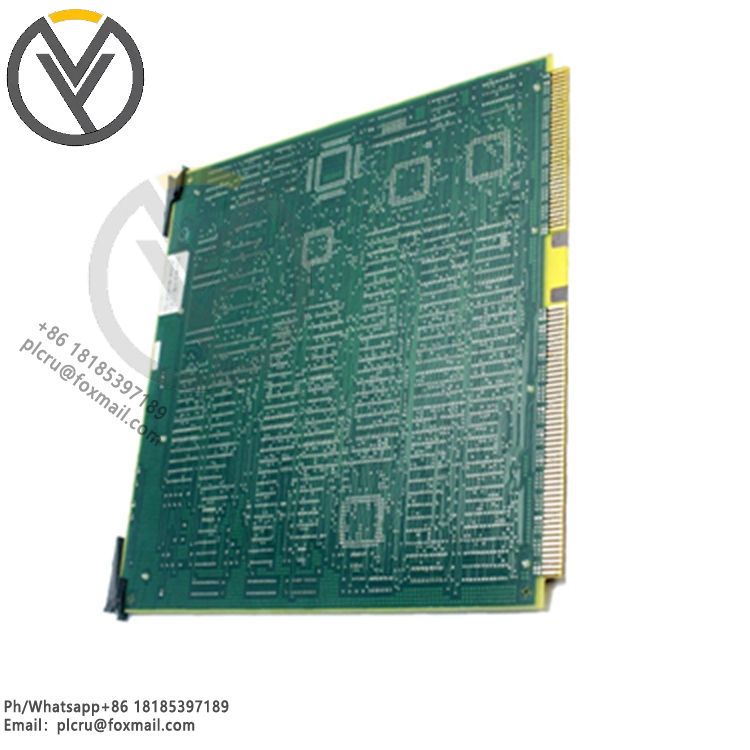

HONEYWELL 05701-A-0301 Single Channel Control Card
Delivery time 3 days
Product origin New/used
Email plcru@foxmail.com
Mobile/wechat /WhatsApp +86 18185397189
Here is more detailed datasheet information about the HONEYWELL 05701-A-0301 sin
Here is more detailed datasheet information about the HONEYWELL 05701-A-0301 single channel control card:
General Information
Product Model: 05701-A-0301
Product Type: Single Channel Control Card
Manufacturer: Honeywell
Series: Honeywell Analytics 7500 Series (also suitable for Honeywell C1000 and D1000 control systems).
Electrical Characteristics
Signal Type
Analog: Voltage -10V to +10V, Current 4mA to 20mA.
Digital: Dry Contact.
Resolution: 16 bits
Update Rate: 10Hz
Communication Interface: RS-485
Supply Voltage: 24VDC
Power Consumption
Catalytic: 3.75W (typical).
4 - 20mA: 3.25W (typical).
Accuracy and reliability
Measurement accuracy: ±0.1%FS
Reliability design: Dual redundant design
Physical characteristics
Protection level: IP65
Installation method
C300 controller: Both horizontal and vertical installation are possible, dual-terminal I/O wiring, pluggable terminals are easy to wire and maintain.
Scope of application
Industrial field: Widely used in oil, natural gas, electricity, water treatment and other industries to control parameters such as temperature, pressure, flow and so on.
