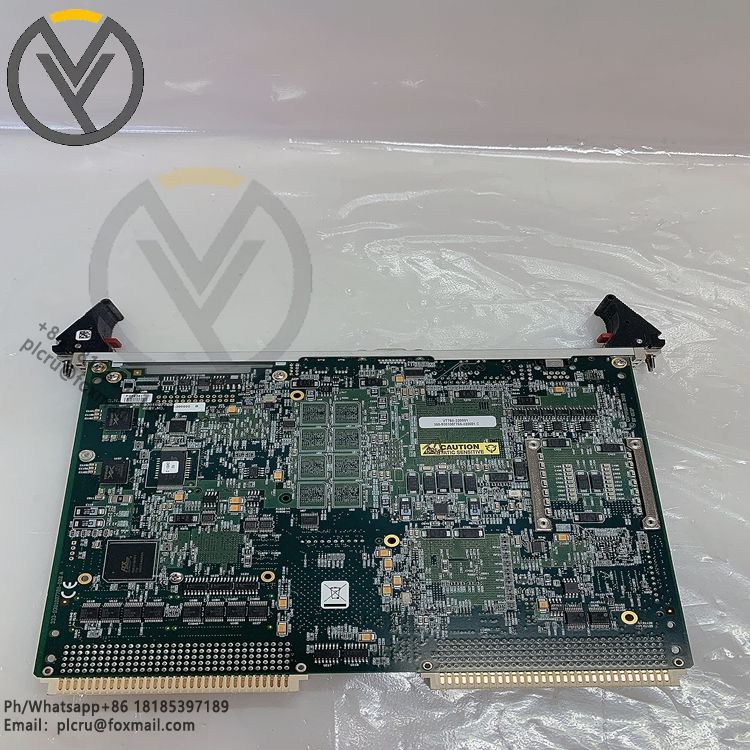

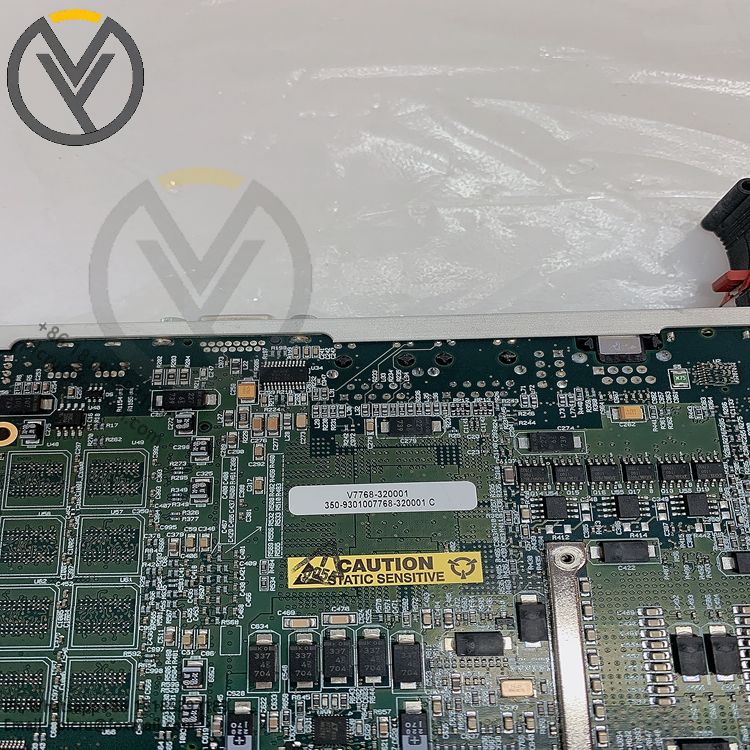

GE V7768-320001 350-9301007768-320001 C VMEbus single-board computer

The GE V7768-320001 is a VMEbus single-board computer manufactured by GE (or GE Fanuc Intelligent Platforms). 350-9301007768-320001 C may be its model or configuration code. The following is a detailed description:

Processor Performance:

Processor Type: Available with an Intel Core 2 Duo processor, up to 2.16GHz; or an Intel Celeron M processor, up to 1.07GHz.

Cache: The Core 2 Duo processor has 4MB of L2 cache, while the Celeron M processor has 1MB of L2 cache.

Memory: Supports up to 2GB of DDR2 SDRAM via a single SO-DIMM slot.

Chipset and Expandability: Integrated with the Intel 945GME Express chipset, it provides a wealth of I/O interfaces and expansion capabilities. It features a PCI-X PMC (Processor Module Carrier) port, allowing users to add additional processor modules or expansion cards. Three additional PMC expansion points are also provided, further enhancing system expandability and flexibility.

I/O Interfaces:

Network Interface: The front panel features two Gigabit Ethernet ports, implemented using the Intel 82571 chip and supporting network boot (PXE).

Storage Interface: Two SATA ports are provided for connecting high-speed storage devices.

USB Interface: Four USB 2.0 ports are provided, two on the front panel and two on the rear panel.

Serial Port: Two serial ports support RS232C and RS485 communication protocols.

Other Interfaces: The front panel also provides a PS/2 keyboard and mouse port and an SVGA port for convenient local operation and display.

Operating Environment: The operating temperature range is -40°C to +85°C, and the IP20 protection rating makes it suitable for harsh industrial environments. Operating System Support: Supports Windows XP, VxWorks, Linux, and other operating systems. Users can select and install the appropriate operating system based on their needs.

Application Areas: Featuring high performance, a rich set of interfaces, and excellent scalability, this single-board computer is suitable for a variety of applications, including industrial automation control, data acquisition systems, and embedded systems. It can be used to control, monitor, and process data for a variety of devices.
