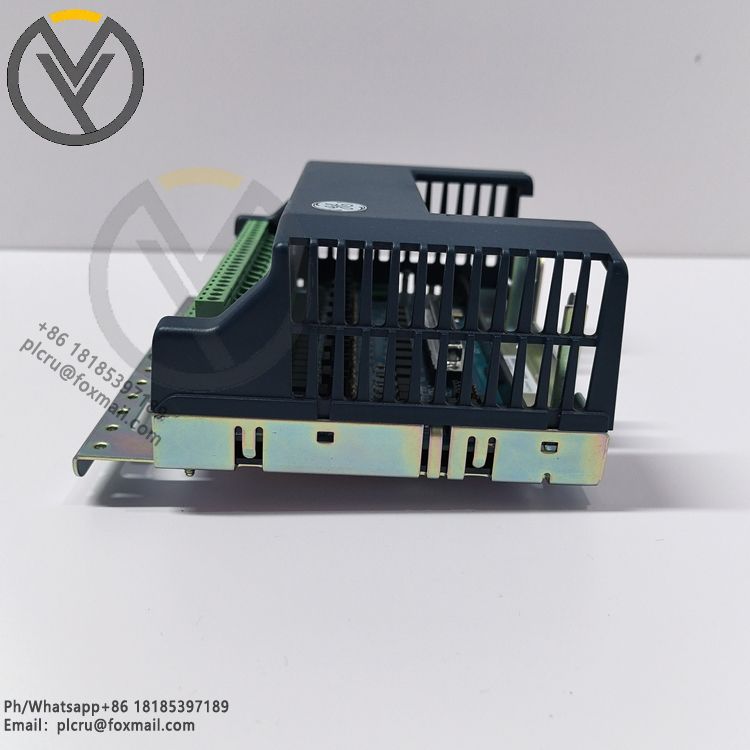

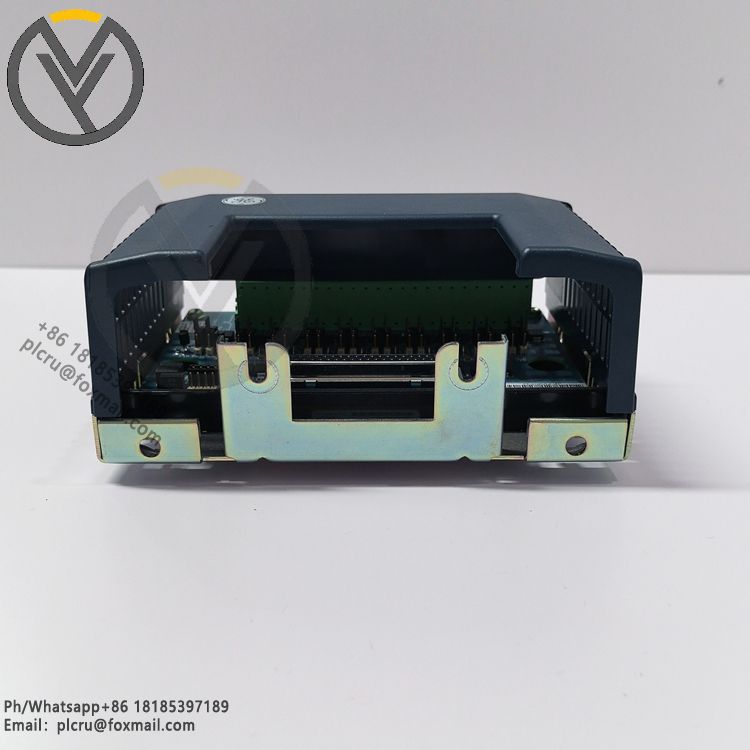

IS410STAIS2A IS400STAIS2AED GE Simplex Terminal Board

The IS410STAIS2A and IS400STAIS2AED are simplex analog input/output terminal blocks for GE's Mark VIeS series. Details are as follows:

Basic Information:

Part Numbers: IS410STAIS2A, IS400STAIS2AED.

Manufacturer: General Electric.

Series: Mark VIeS.

Temperature Range: -40 to 158°F.

ControlST Software Suite Version: V06.01 and later.

Input Converter Resolution: 16-bit ADC.

Power Consumption: 5.3W.

Features:

Analog I/O Channels: Each module has 12 channels, 10 of which are analog inputs (AI) and 2 are analog outputs (AO). The 10 analog input channels are compatible with two-wire, three-wire, four-wire, or externally powered transmitters. The two analog output channels have an operating range of 0-20mA. Flexible Input Configuration: The I/O block supports up to 10 analog inputs. The first eight can be configured as 5V or 10V voltage inputs or 4-20mA current loop inputs, while the remaining two inputs can be set as 1mA or 0-20mA current inputs.

Current Loop Measurement: Current loop inputs, supplemented by load termination resistors located on the terminal block, enable accurate and reliable current loop measurement, providing precise data for control and monitoring.

Power and Connectivity: A three-pin power input ensures efficient and stable operation. Two RJ-45 Ethernet connectors enable data exchange and communication with network systems. A DC-37-pin connector connects directly to the associated terminal block connector, simplifying the output process, reducing setup time, and ensuring reliable data transmission.

Diagnostic Features: An onboard ID chip identifies the board to the system package, facilitating system diagnostics. Integrated LED indicators provide real-time information on operating status, facilitating troubleshooting and maintenance.
