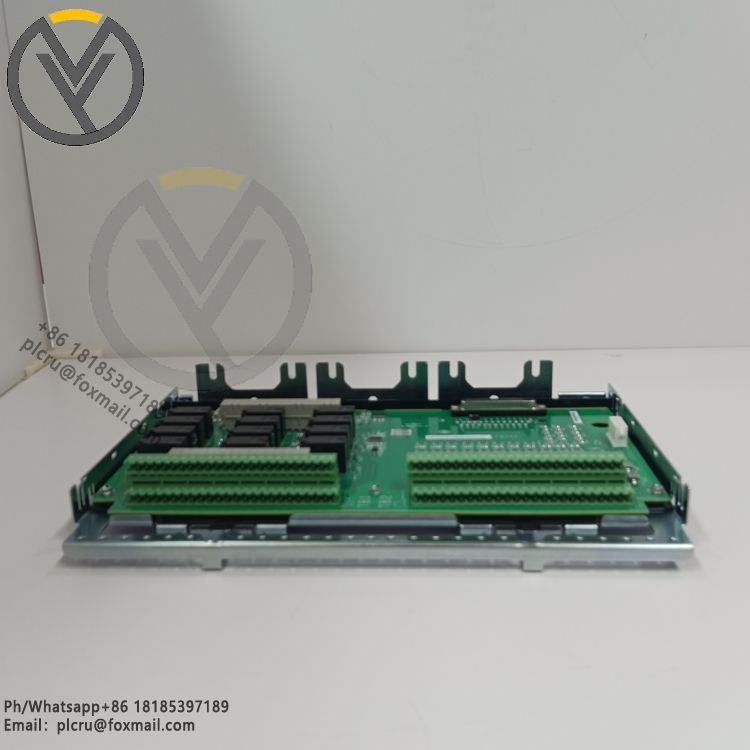

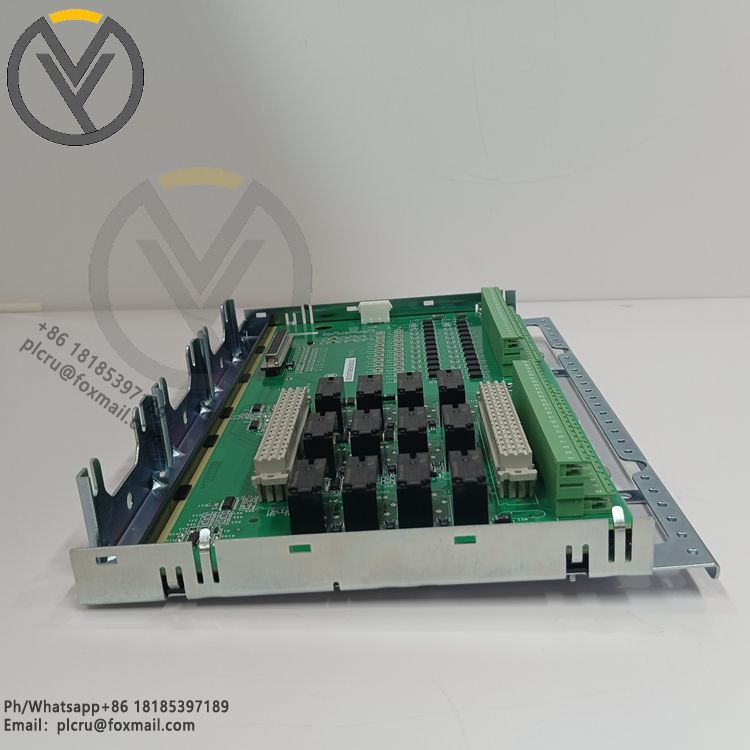

GE IS230TNDSH2A IS200TDBSH2ACC PDIO Terminal Board

GE IS230TNDSH2A and IS200TDBSH2ACC are PDIO (Pulse Digital Input/Output) terminal board related components in the Mark VI series control system produced by General Electric (GE). The specific introduction is as follows:

IS230TNDSH2A:

Functional use: It is a high-performance digital signal processing module, mainly used for signal acquisition, control logic execution and data communication in the field of industrial automation. It can be used as a bridge between external devices such as sensors and actuators and control systems, responsible for signal acquisition, processing and transmission.

Interface type: Supports digital input/output, analog input/output and other interfaces.

Power supply and size: The power supply voltage is 24VDC, and the module size is 233mm×180mm×64mm.

Performance characteristics: Supports up to 64 channels (32 analog inputs and 32 analog outputs), and the analog input and output response time can reach 1 millisecond. It uses industrial-grade components, has an operating temperature range of - 40°C to + 85°C, and a protection level of IP67, suitable for harsh environments. It also has built-in diagnostic functions and supports error detection and positioning.

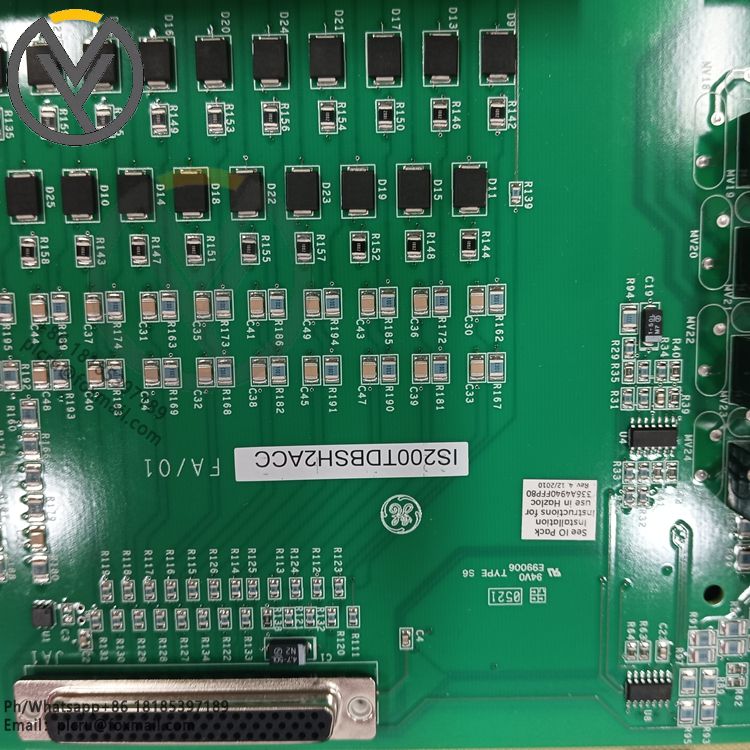

IS200TDBSH2ACC:

Functional use: It is mainly used to connect various digital signals, such as switching quantities, pulse signals, etc., to achieve control and status monitoring of equipment, and is an important part of the automation control system.

Product features: It uses industrial-grade components, has good anti-interference and stability, and is modularly designed for easy replacement and maintenance.
