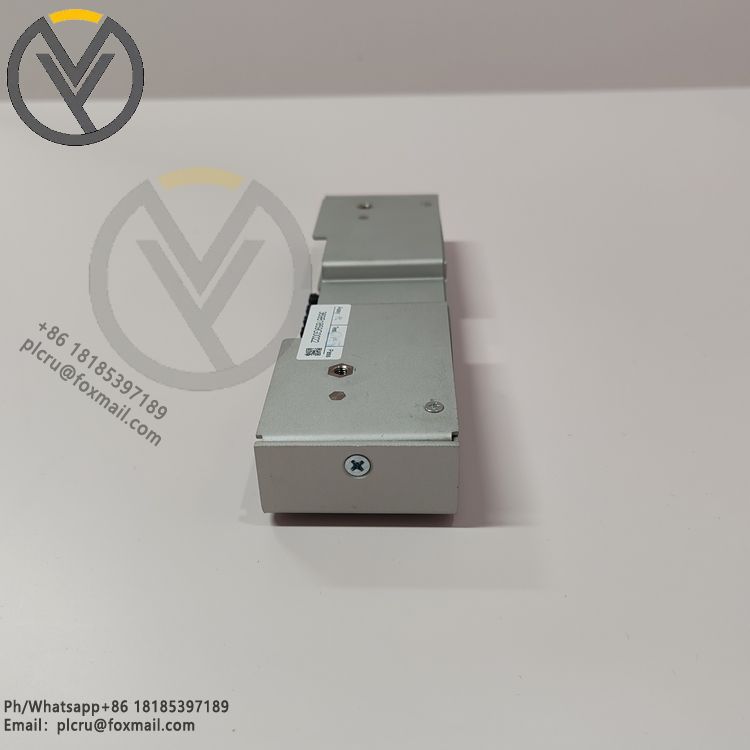

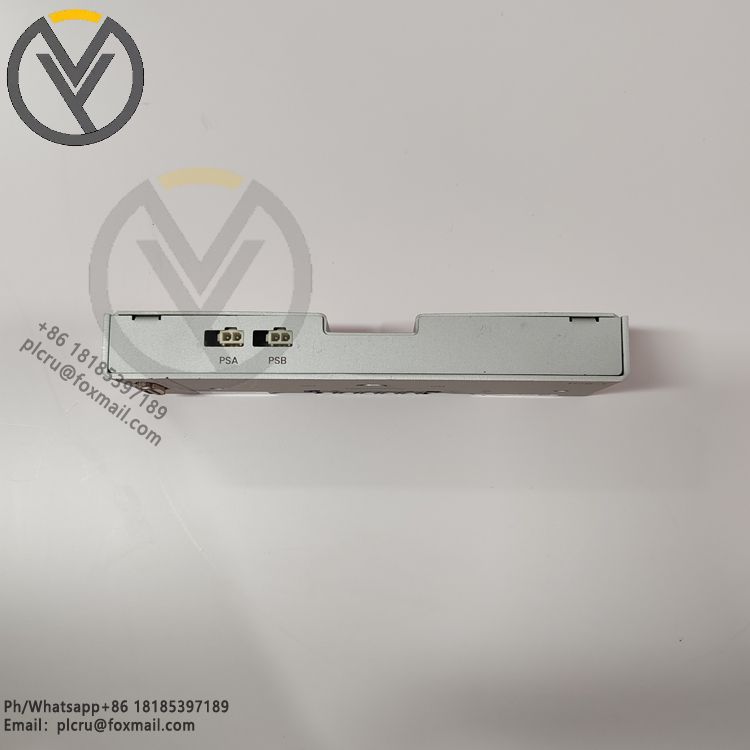

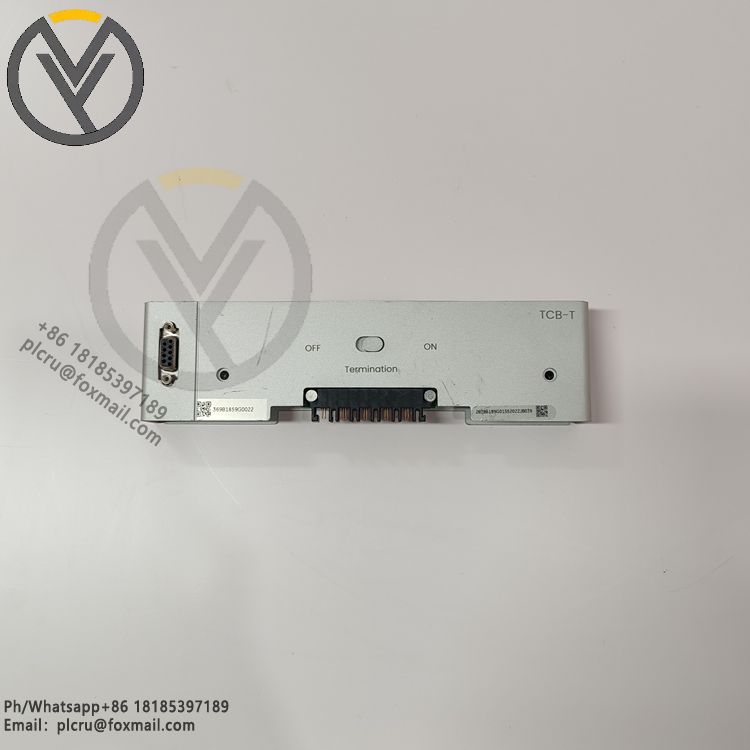

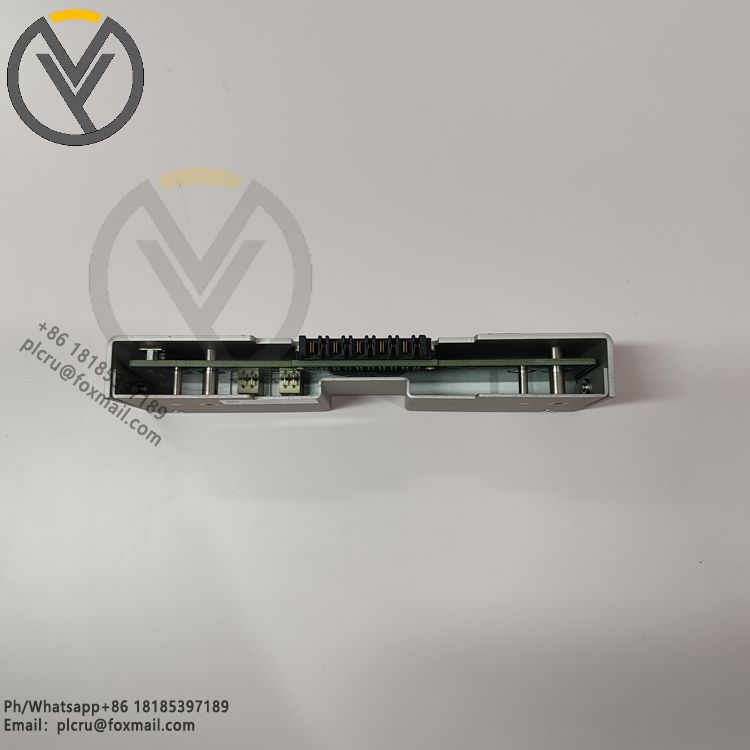

GE 369B1859G0022 TCB-T Module Thermal Current Breaking Transformer

GE 369B1859G0022 is not a thermal current blocking transformer, but a turbine control module. It is widely used in industrial automation systems, especially in steam and gas turbine application scenarios within GE's advanced control ecosystem. The specific introduction is as follows:

Functional characteristics: As a key component of the turbine control platform, this module is the interface between field sensors, actuators and the monitoring control layer, which can accurately adjust the turbine speed, load and operating parameters. It integrates powerful signal processing capabilities and redundant communication protocols, supports real-time data acquisition from proximity probes, temperature sensors and pressure sensors, and converts raw data into control signals for valves and drives.

Technical specifications: Input voltage is 24V DC±10%, with communication interfaces such as Ethernet, RS-485, Profibus DP, etc. The physical dimensions are 300mm (height) × 200mm (width) × 100mm (depth), and the weight is 3.5kg. The operating temperature range is -25°C to +70°C, it is mounted in a standard 19-inch rack and has 512MB flash and 256MB memory.

Key advantages: It uses advanced PID control and adaptive tuning algorithms to maintain the turbine speed within ±0.1% of the set value. It has a redundant architecture such as dual-core processing and redundant power input, and dual Ethernet ports support network failover. It has a reinforced metal casing with moisture-proof conformal coating, and its shock and vibration resistance meets the IEC 60068-2-6 standard. It is compatible with GE's Proficy software suite for remote configuration, diagnosis and firmware updates, and supports open communication protocols such as Modbus and Profibus.

Application areas: It is widely used in the power generation industry to manage steam and gas turbines in thermal power plants, combined cycle power plants and cogeneration power plants to ensure stable power output and grid synchronization, and can also optimize fuel combustion and reduce emissions through precise valve control. It is also suitable for industrial fields such as the oil and gas industry and heavy manufacturing that have a reliable demand for turbine control.
