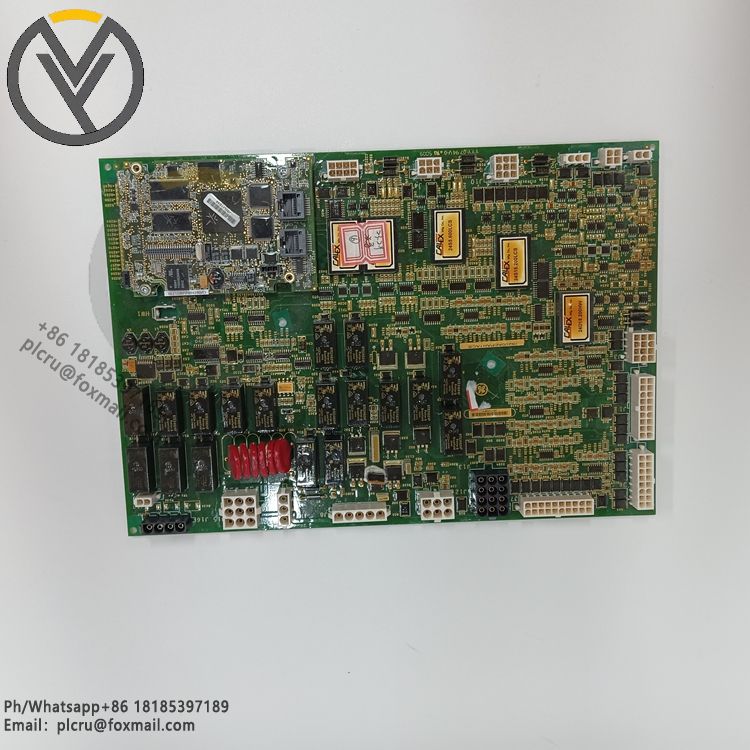

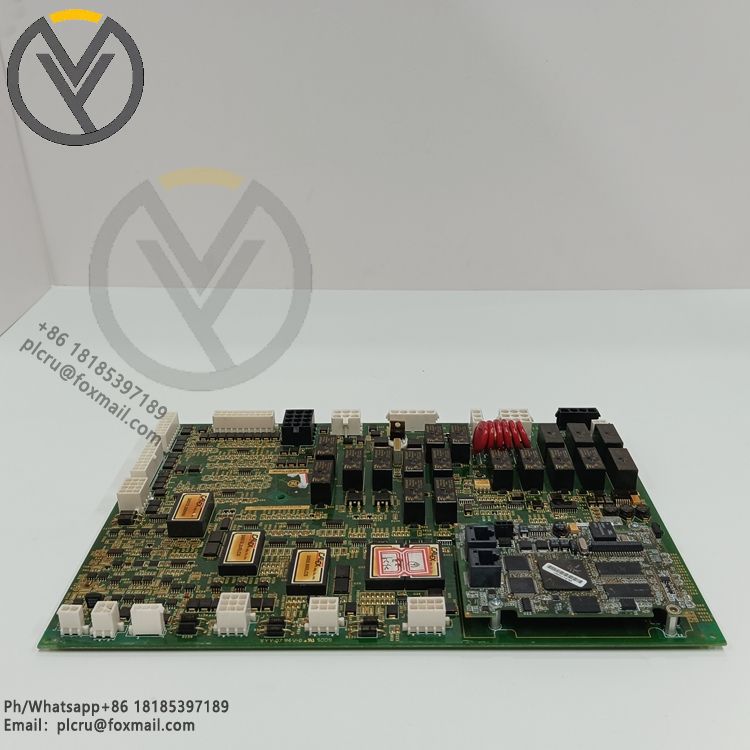

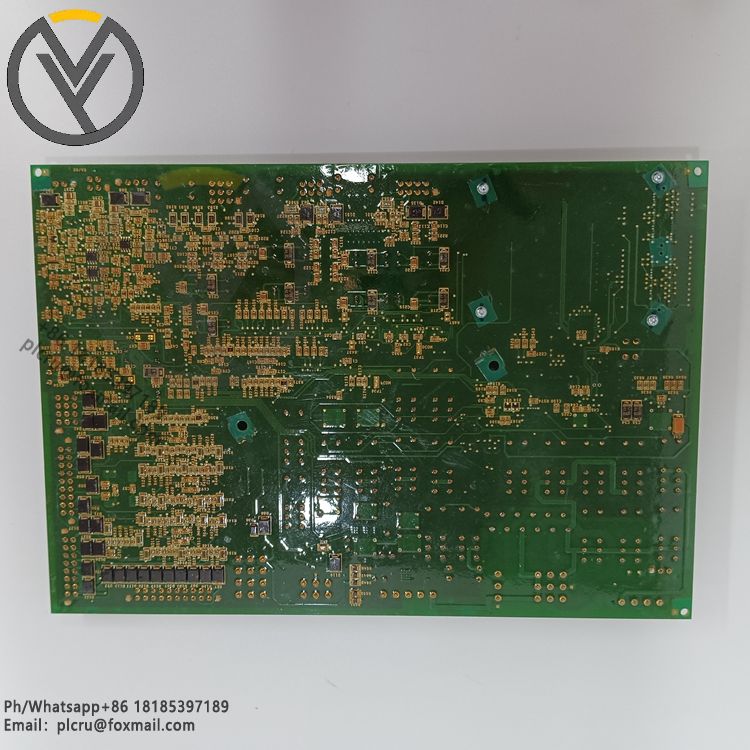

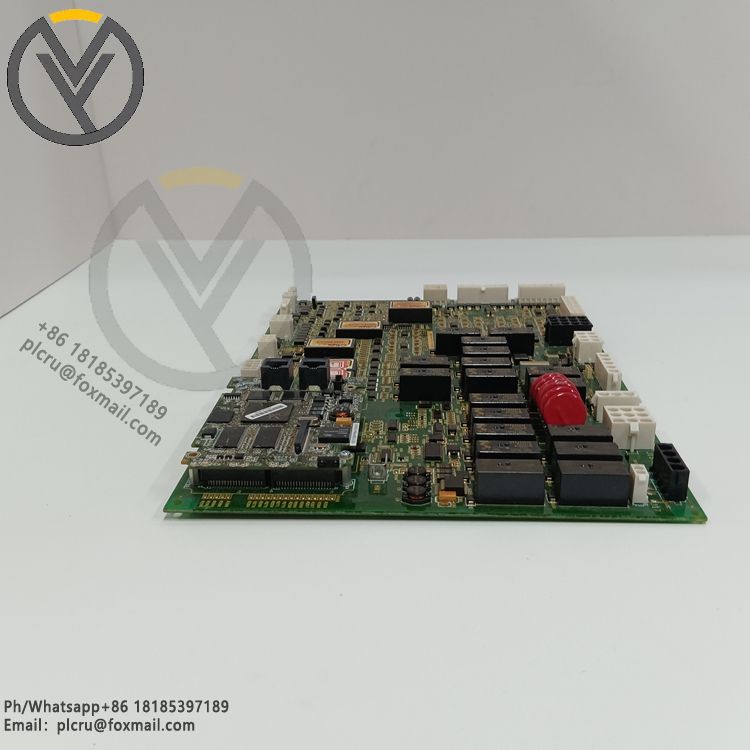

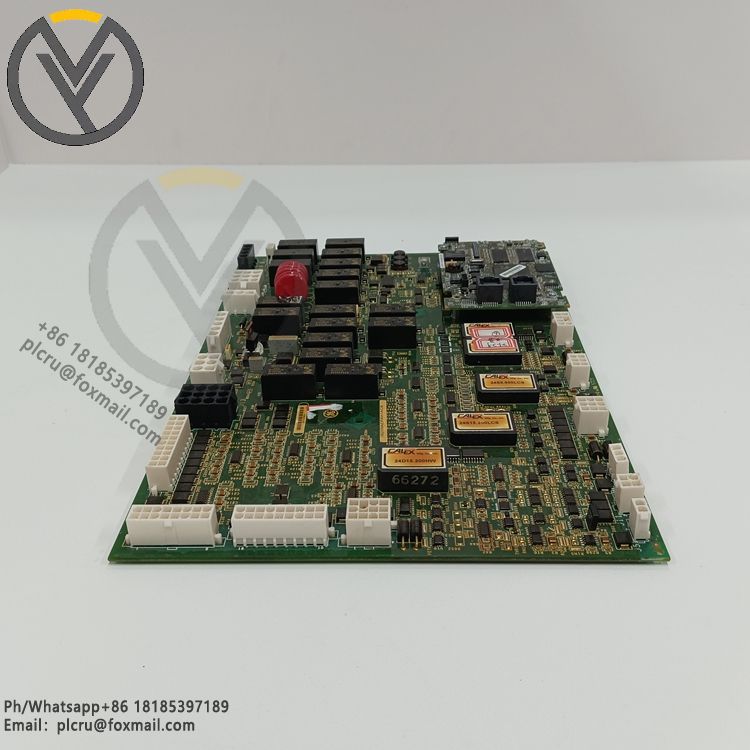

GE IS200AEPAH1ACB AEPA Card Assembly

The GE IS200AEPAH1ACB AEPA card assembly is a printed circuit board designed by General Electric (GE) for its Mark VI Speedtronic turbine control system. The Mark VI Speedtronic is the most advanced control system for GE turbines. It is a complete integrated control system that provides protection and monitoring for generators and mechanical drive applications for gas and steam turbines. The AEPA card assembly has the following roles in it:

Advanced protection control: The card assembly can execute complex algorithms to protect wind turbines from electrical faults and abnormal conditions. For example, when faults such as grid voltage fluctuations and short circuits are detected, protective measures such as cutting off the circuit and adjusting the output can be taken in time to prevent damage to turbine equipment.

Real-time monitoring: It can continuously monitor key electrical parameters such as voltage, current, frequency, etc. Through real-time monitoring of these parameters, potential problems can be discovered in time, providing data support for fault diagnosis and preventive maintenance.

Protection logic execution: Execute protection strategies based on the monitored data. Once the monitored parameters exceed the normal range, the card component will perform corresponding operations according to the preset protection logic, such as triggering alarms, starting backup equipment, etc., to ensure the safe operation of the system.

Integration with Mark VI system: It can be seamlessly integrated with other components of the Mark VI control system to achieve collaborative work of the entire system. For example, it can interact and communicate with the central control module and other functional boards to jointly complete the comprehensive control and monitoring of the turbine.
