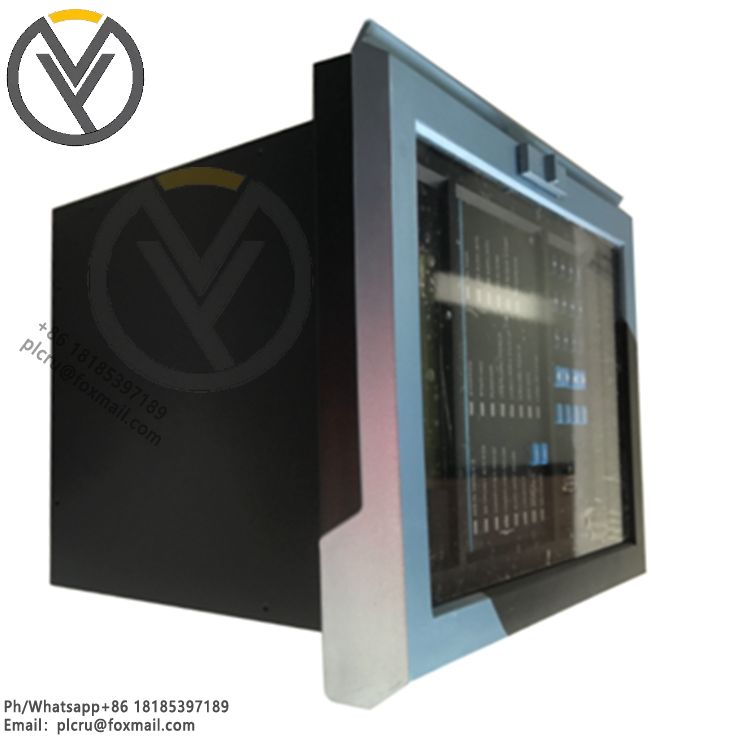

GE FANUC IC754VSF15CTD Operator Interface

The following is the content of the data sheet of the GE FANUC IC754VSF15CTD Operator Interface:

General information

Product Model: IC754VSF15CTD

Series: QuickPanel series

Product type: Operator interface, Human-machine interface (HMI) device

Manufacturer: General Electric (GE), now Emerson Automation

Product status: Discontinued/Out of date

Hardware specification

Processor: Intel XScale PXA255, clock speed 300MHz

Memory: 64MB flash memory, 512KB SRAM (retained by battery power after power failure), 64MB DRAM, 512KB ROM (boot loader)

Display screen: 15-inch color thin-film transistor (TFT), with a resolution of 1024×768 pixels

Operation input: Resistive 12-bit touch screen

Communication interfaces: 2 Ethernet interfaces, 1 EIA 232C/EIA 485 serial port (DP25S combined port), 1 RS-232 port, 2 USB interfaces

Electrical characteristics

Power supply: 12-30VDC

Actual power consumption: 24W

Input power supply: 12V or 24VDC

Mechanical characteristics

Weight: Approximately 10 pounds (about 4.54kg)

Transport dimensions: 16×14×8 inches (approximately 40.64×35.56×20.32cm)

Software

Operating system: Windows CE operating system

Function description

The operator can input data through the touch screen. It can be connected to the Proficy-View Machine Edition software and connected via the HMI-CAB communication cable through the RS485 communication port and the RS232 port.

It features a high-resolution interface, offers users a variety of customizable operation options, and its memory can be used to store data and information, which helps to improve the device's operating speed.

Applications can be downloaded via Ethernet and installed in third-party user applications. They can be used as standalone devices or as part of an integrated network.
