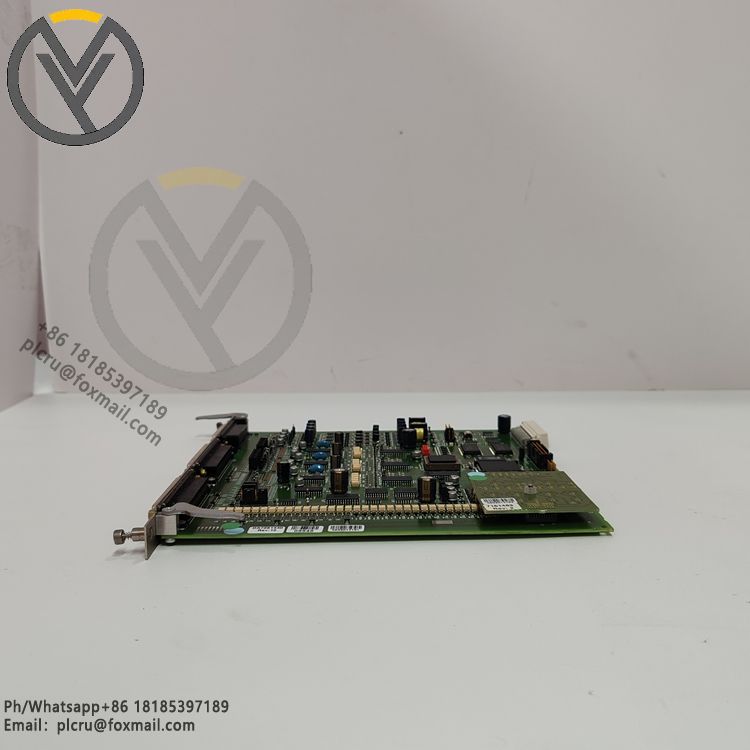

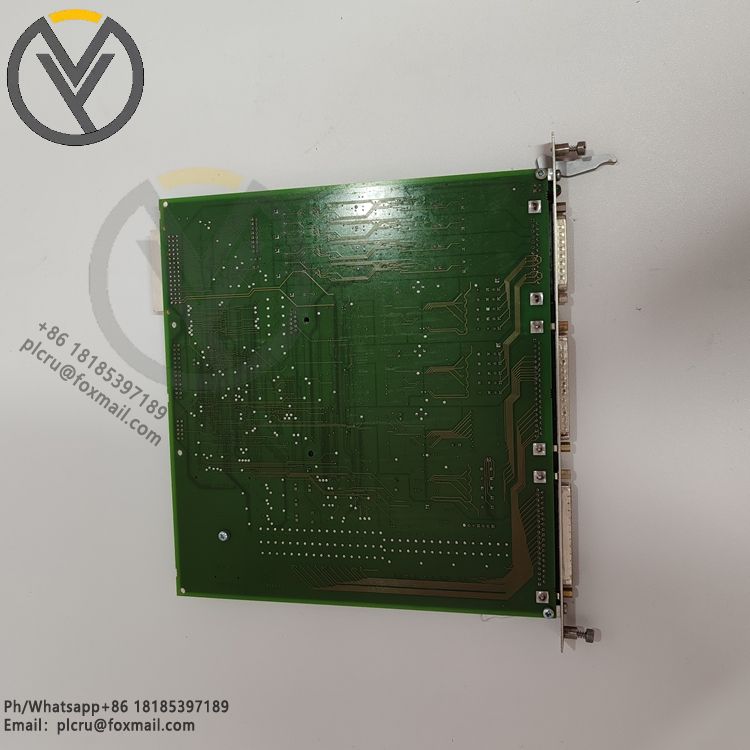

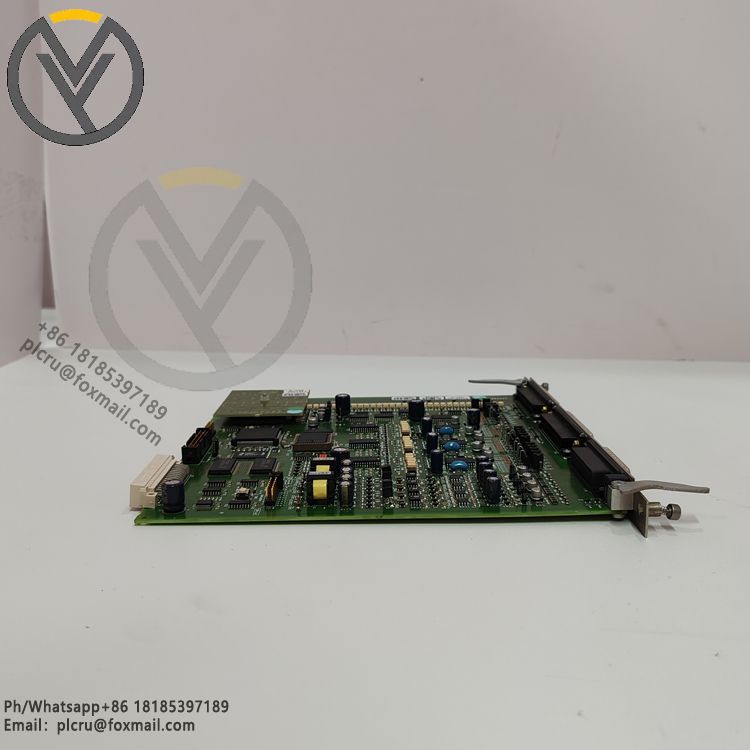

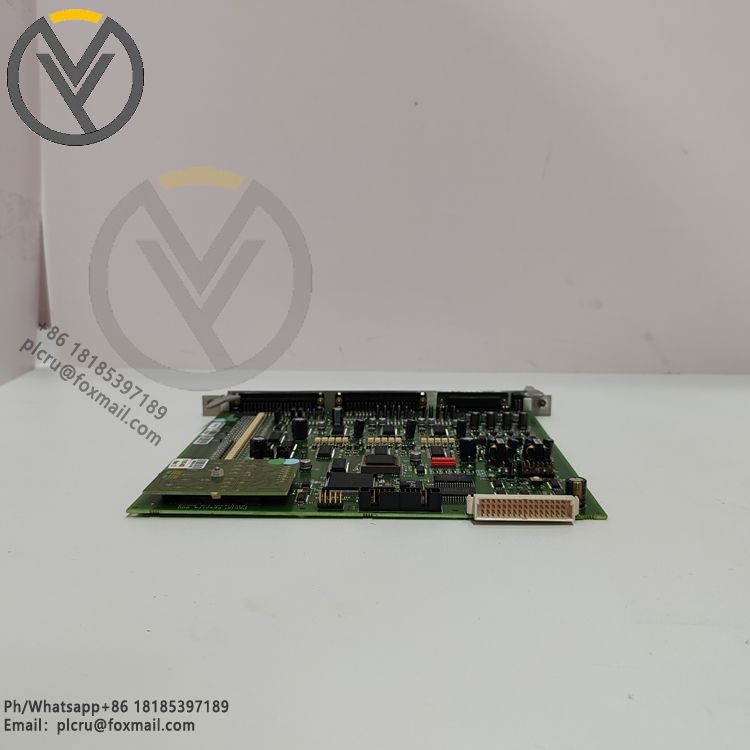

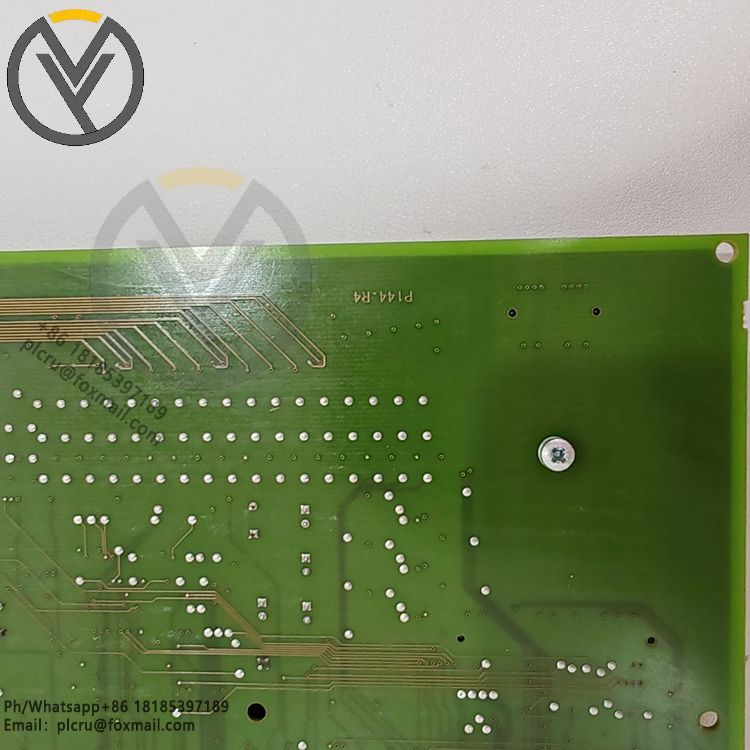

EMERSON P144. R4 Input/Output Module

Emerson's P144.R4 input/output module is a key component in industrial control and automation systems. Here is an introduction to it:

Functional features

Multiple signal processing: supports analog (AI/AO), digital (DI/DO) or mixed signal input/output, can adapt to a wide range of industrial application scenarios, can realize analog signal, digital signal and mixed signal processing, and ensure efficient data transmission between field equipment and control systems.

Intelligent design: integrated signal processing and diagnostic functions, can provide real-time data and status information, help improve the operability and maintainability of the system.

Easy to integrate: modular architecture, can be seamlessly integrated with Emerson's DCS system (such as DeltaV series), convenient and flexible expansion, can simplify system design.

High reliability: with industrial-grade durable design, with anti-vibration, dustproof, anti-electromagnetic interference and other characteristics, suitable for use in harsh industrial environments. In addition, the module also supports redundant configuration, which can further improve the reliability and operation time of the system.

Technical parameters

Input/output type: supports analog, digital or mixed signals.

Power requirements: usually 24V DC or standard power provided by the system.

Communication interface: supports industrial bus protocols such as Modbus, Ethernet, etc. to achieve communication with other devices.

Data transmission rate: has high-speed communication capabilities to ensure real-time data updates.

Installation method: supports standard DIN rail or rack installation, which is convenient for installation in different equipment environments.

The module can be used for data acquisition and equipment control of remote wellheads and refining units, and can also accurately control parameters such as temperature, pressure and flow in the production process during factory automation.
